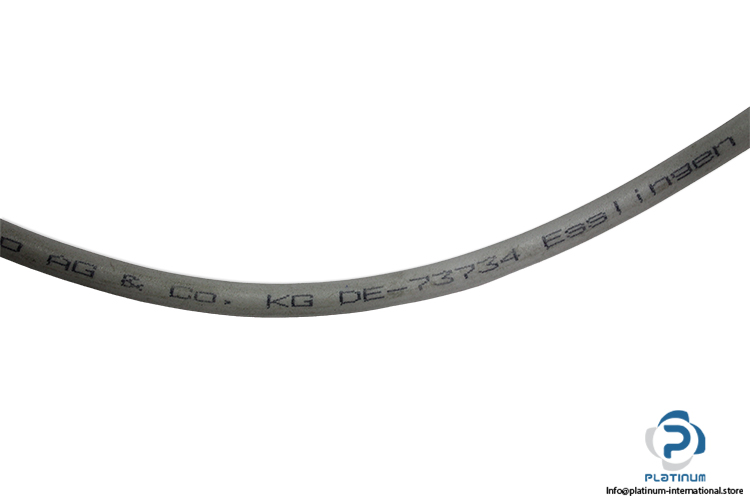

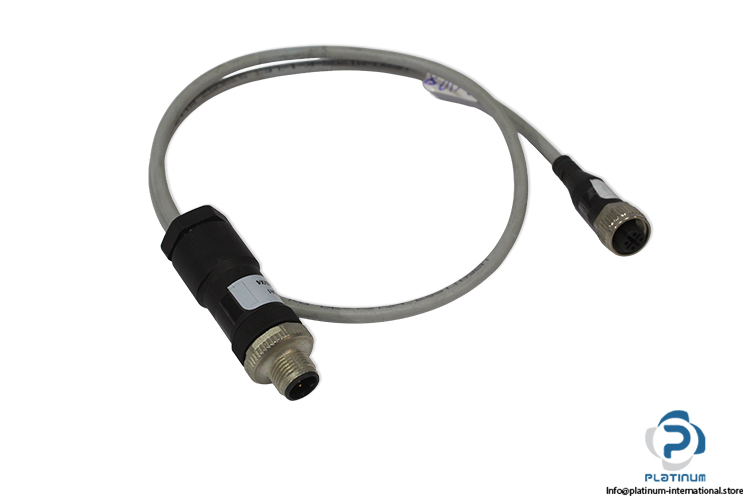

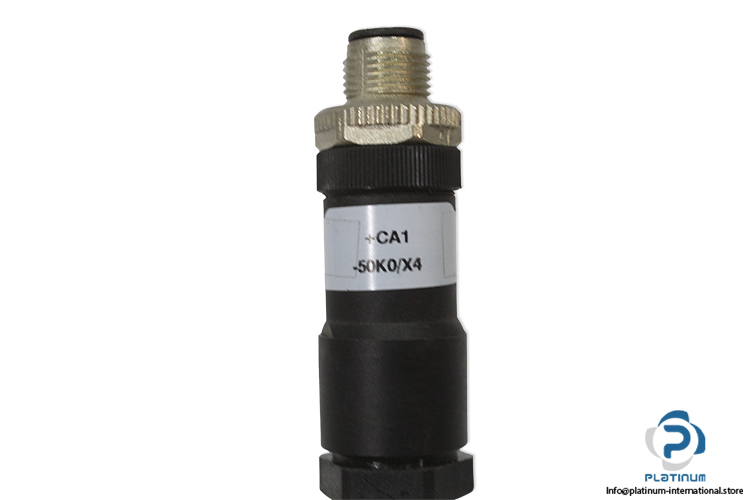

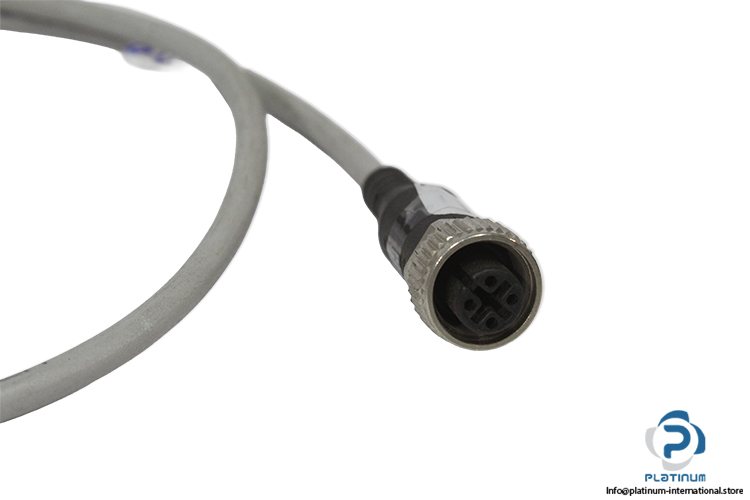

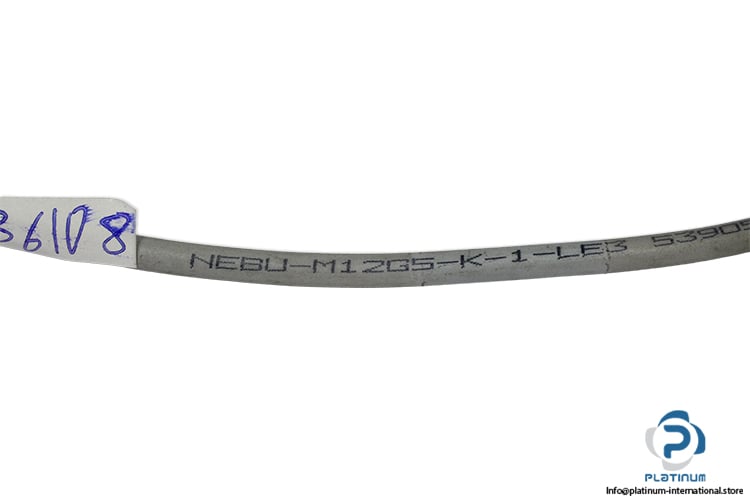

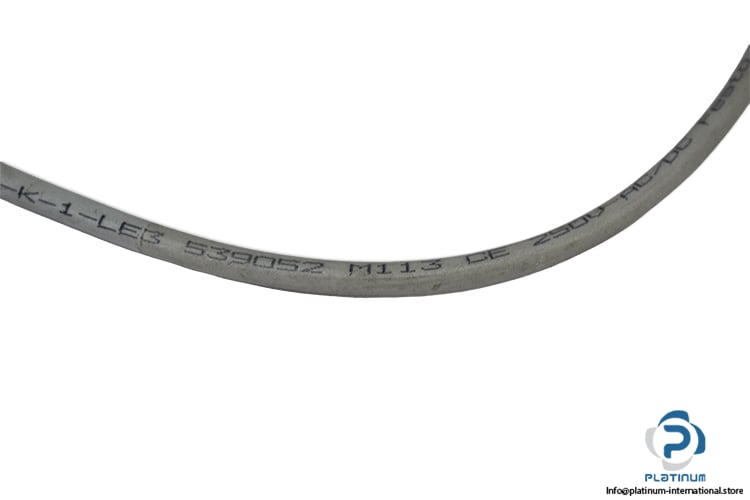

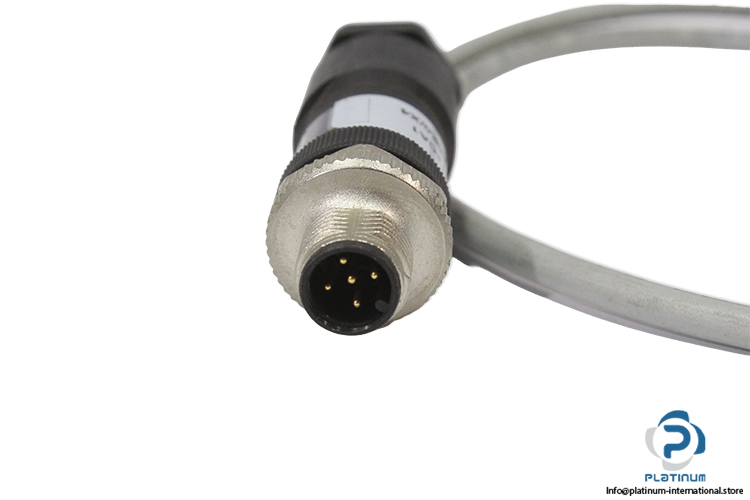

Festo NEBU-M12G5-K-1-LE3 Connecting Cable
New
In stock1 unitReady to ship
Connecting Cable
Festo NEBU-M12G5-K-1-LE3 1 m M12 connecting cable with 5-pin male to 5-pin female connectors, oil-resistant sheath, and secure screw-type lock for industrial automation applications.5aAutomationCableCodedConnectingconnectionControllerDeviceFestoFieldIndustrialM12M12x1NebuoilpinPURResistantSensor
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 539052 |
| Cable Length | 1 m |
| Connector 1 | 5-Pins | Male |
| Electrical Connection 1, Function | Field Device Side |
| Electrical Connection 1, Design | Round |
| Electrical Connection 1, Connection Type | Socket Cable |
| Electrical Connection 1, Cable Outlet | Straight Angled, Can Be Aligned In Increments Of 15° |
| Electrical Connection 1, Connector System | M12x1, A-Coded To EN 61076-2-101 |
| Electrical Connection 1, Number Of Connections/Cores | 3 ... 8 |
| Electrical Connection 1, Used Connections/Cores | 2 ... 5 |
| Electrical Connection 1, Type Of Mounting | Screw-Type Lock |
| Connector 2 | 5-Pins | Female |
| Electrical Connection 2, Function | Controller Side |
| Electrical Connection 2, Design | Round |
| Electrical Connection 2, Connection Type | Cable Plugs |
| Electrical Connection 2, Occupied Pins/Wires | 3 |
| Operational Voltage Range DC | 0 V ... 250 V |
| Operational Voltage Range AC | 0 V ... 250 V |
| Current Rating At 40°C | 3 A ... 4 A |
| Immunity To Surge | 0.8 kV ... 2.5 kV |
| Special Characteristics | Oil Resistant |
| Ambient Temperature | -25 °C ... 80 °C |
| Material Cable Sheath | PVC, TPE-U (PUR) |
| Cable Sheath Colour | Grey |
| Material Housing | TPE-U (PUR) |
| Condition | New |
| Stock Key | JO-004 |
