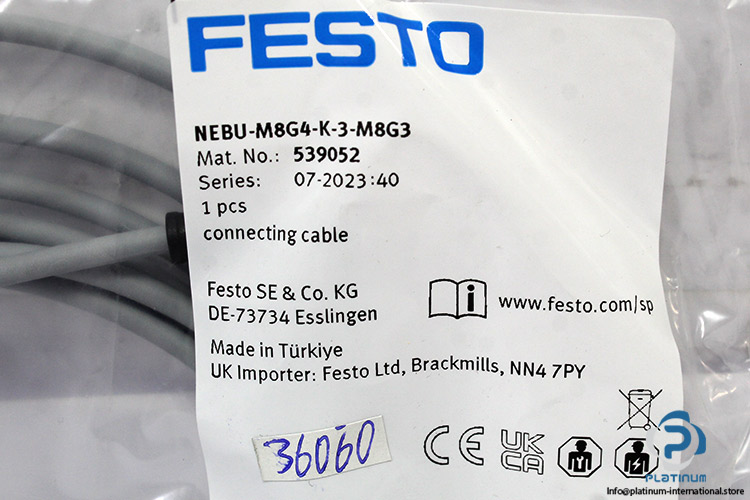

Festo NEBU-M8G4-K-3-M8G3 Connecting Cable
New
In stock12 unitsReady to ship
Connecting Cable
Festo NEBU-M8G4-K-3-M8G3 industrial connecting cable, 3 m length, with 4-pin and 3-pin connectors, oil-resistant sheath, and secure screw-type locking for automation systems.539052AutomationCableConnectingconnectionConnectorControllerDeviceFestoFieldIndustrialM8NEBU-M8G4-K-3-M8G3oilResistant
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Festo NEBU-M8G4-K-3-M8G3 Connecting Cable
The Festo NEBU-M8G4-K-3-M8G3 is an industrial connecting cable designed for reliable signal and power transmission between field devices and controllers. It features robust construction, oil-resistant materials, and secure screw-type locking for dependable performance in demanding environments.
Manufacturer: Festo
Type: Connecting Cable
Model: NEBU-M8G4-K-3-M8G3
Part No.: 539052
| Cable Length | 3 m |
| Connector 1 | 4-pins |
| Electrical Connection 1, Function | Field Device Side |
| Electrical Connection 1, Design | Round |
| Electrical Connection 1, Connection Type | Socket Cable |
| Electrical Connection 1, Cable Outlet | Straight Angled Angled, Can Be Aligned In Increments Of 15° |
| Electrical Connection 1, Connector System | M12x1, A-Coded To EN 61076-2-101 M8x1, A-Coded, To EN 61076-2-104 Open End |
| Electrical Connection 1, Number Of Connections/Cores | 3 ... 8 |
| Electrical Connection 1, Used Connections/Cores | 2 ... 5 |
| Electrical Connection 1, Type Of Mounting | Screw-Type Lock |
| Connector 2 | 3-pins |
| Electrical Connection 2, Function | Controller Side |
| Electrical Connection 2, Design | Round |
| Electrical Connection 2, Connection Type | Cable Plugs |
| Operational Voltage Range DC | 0 V ... 250 V |
| Operational Voltage Range AC | 0 V ... 250 V |
| Current Rating At 40°C | 3 A ... 4 A |
| Immunity To Surge | 0.8 kV ... 2.5 kV |
| Special Characteristics | Oil Resistant |
| Ambient Temperature | -25 °C ... 80 °C |
| Material Cable Sheath | PVC TPE-U (PUR) |
| Cable Sheath Colour | Grey |
| Material Housing | TPE-U (PUR) |
