Festo SE-1/8-B Quick Exhaust Valve
New
In stock19 unitsReady to ship
Festo SE1/8B Quick Exhaust Valve “ Compact G1/8 valve with muffler, die-cast zinc body, and high flow rate. Suitable for fast-response pneumatic systems.
AirAutomationdie-castdischargeExhaustFastFestoG1/8IndustrialMufflerNBRPneumaticPneumaticsQuickSE1/8BSealValveWithZinc
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

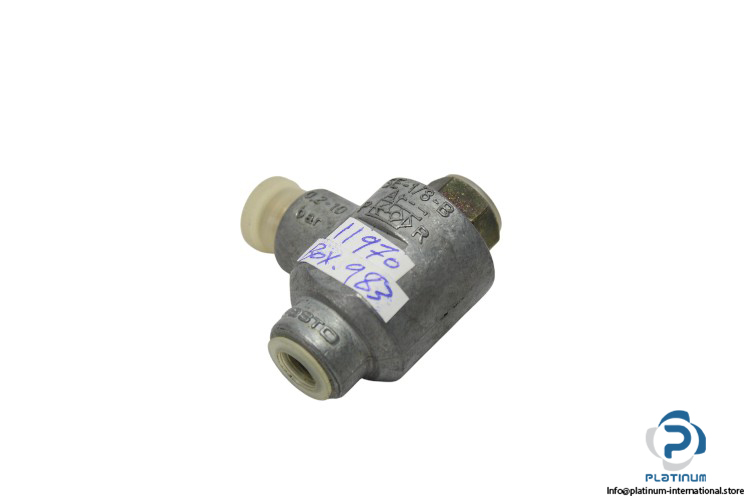

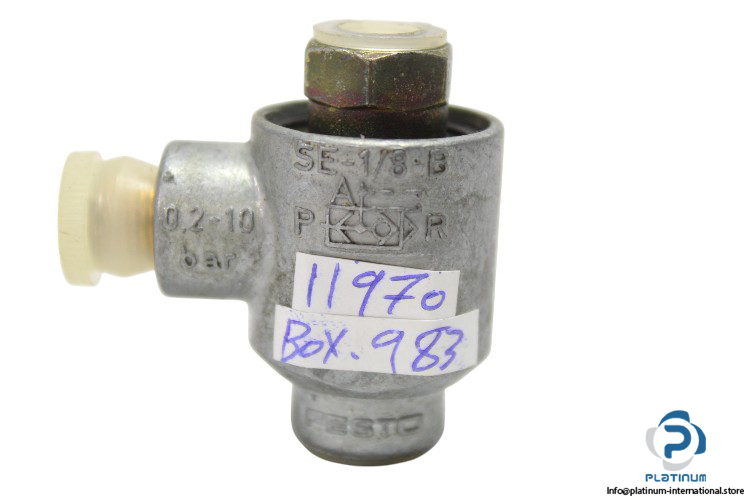

Festo SE1/8B Quick Exhaust Valve
The Festo SE1/8B is a high-performance quick exhaust valve engineered for rapid exhaust of compressed air in pneumatic systems. Designed with an integrated muffler and robust die-cast zinc housing, it delivers reliable and efficient operation in a wide range of industrial applications.
Manufacturer: Festo
Type: Quick Exhaust Valve
Model: SE1/8B
| Fluid | Air |
| Valve Function | Quick exhaust |
| Additional Function | With muffler |
| Operating Pressure | 0.2 to 10 bar |
| Type of Mounting | Screw-in |
| Standard Nominal Flow Rate (Exhaust Air 6†’5 bar) | 660 l/min |
| Standard Nominal Flow Rate (Pressurization 6†’5 bar) | 300 l/min |
| Ambient Temperature | -20 to 75 °C |
| Medium Temperature | -20 to 75 °C |
| Housing Material | Die-cast zinc |
| Operating Medium | Compressed air |
| Pneumatic Connection | G 1/8 |
| Nominal Width | 5 mm |
| Noise Level | 100 dB |
| Seals Material | NBR |
