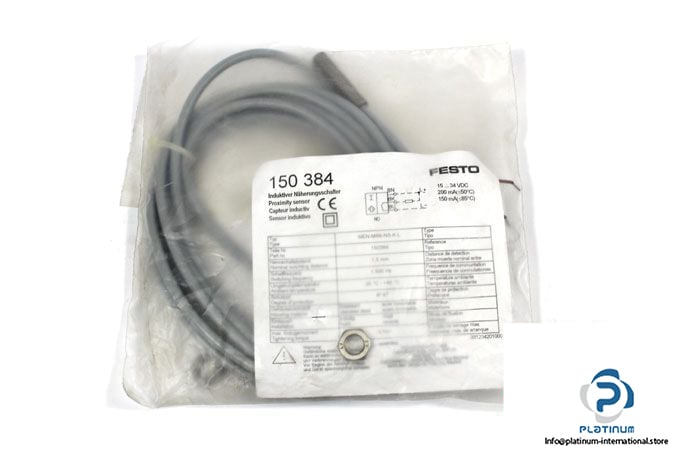

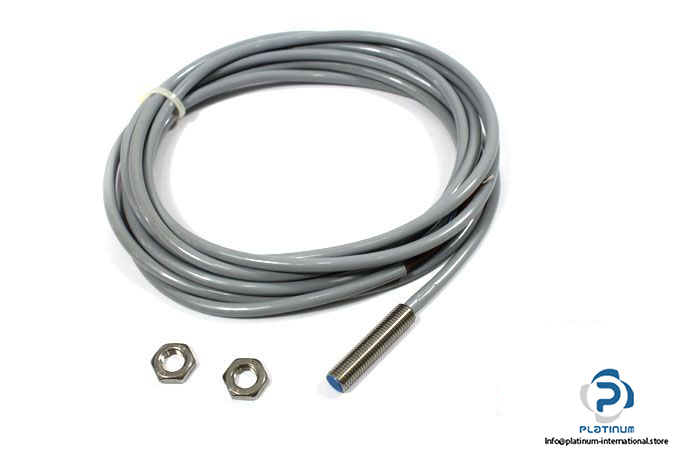

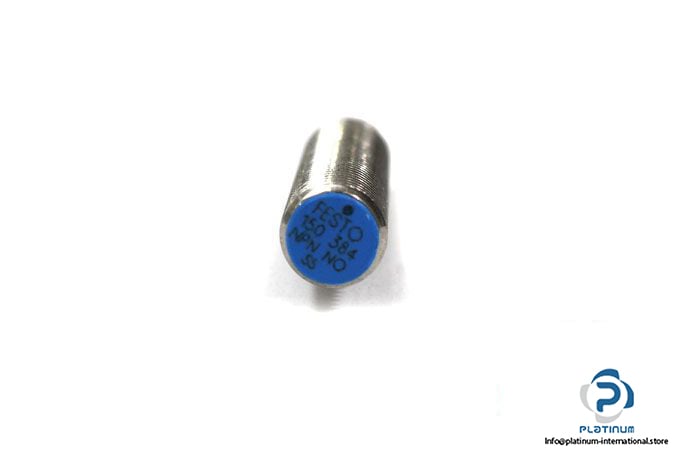

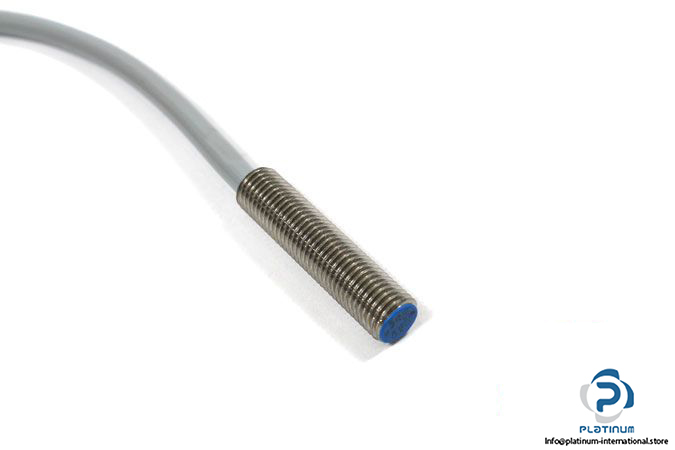

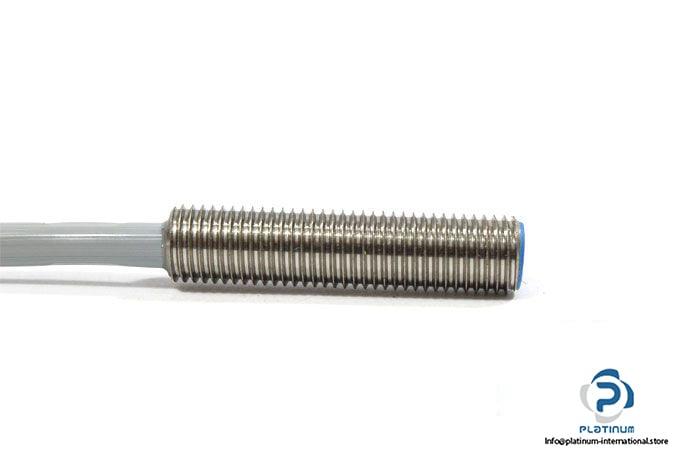

Festo SIEN-M8B-NS-K-L Inductive Proximity Sensor

Manufacturer: FESTO

Type: INDUCTIVE PROXIMITY SENSOR

Model: SIEN-M8B-NS-K-L

Part No.: 150384

Sensing range: 1.5 mm

Operating voltage: 10 … 34 VDC

Output Current max.: 200 mA

Switching frequency max.: 5000 Hz

Electrical design: NPN

Switching output: Normally open

Connector type: PUR Cable, 2.5 m

Operating status display: LED

Enclosure rating: IP65, IP67

Ambient Operating temperature: -5 … 70°C

Diameter, housing length: 8, 35 mm

Weight: 53 g

Housing material: High alloy steel

Sensing face material: PA

Mounting: Flush mountable

Supplied accessories: 2 lock nuts
