Festo SME-8-K5-LED-24 Roximity Sensor
Used
In stock1 unitReady to ship
Proximity Sensor
The Festo SME-8-K5-LED-24 is a magnetic reed sensor designed for T-slot applications. With a compact size, 24V DC operation, and IP65/IP67 protection, it is ideal for precise and durable position sensing in automation systems.17540424vAutomationCompactDetectionFestoIndustrialIP67MagneticPositionProximityReedSensorSME-8-K5-LEDT-Slot
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

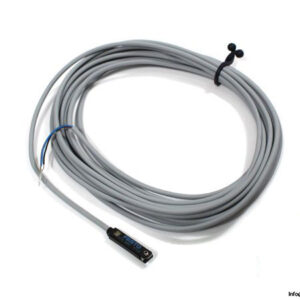

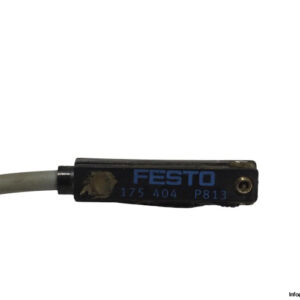

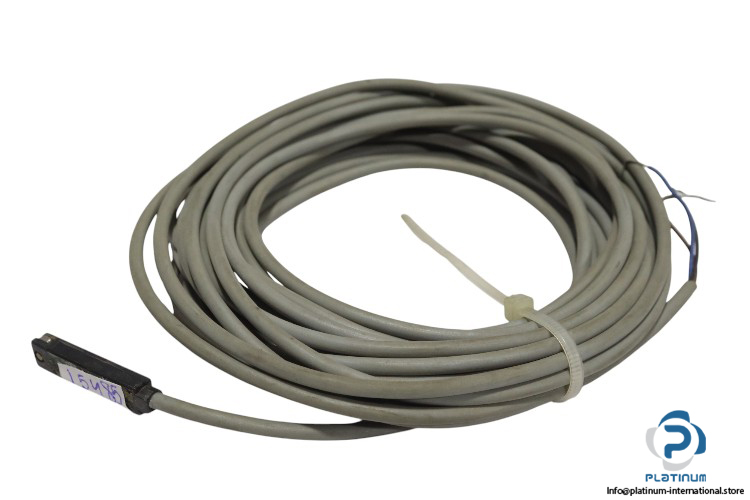

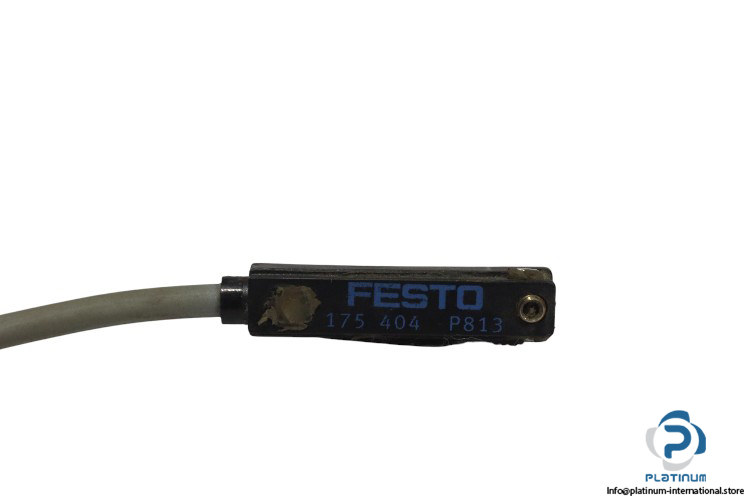

Festo SME-8-K5-LED-24 Proximity Sensor
The Festo SME-8-K5-LED-24 is a compact magnetic reed proximity sensor specifically designed for T-slot applications. It offers reliable position detection, easy installation, and excellent resistance to harsh industrial environments with IP65 and IP67 enclosure ratings.
Manufacturer: FESTO
Type: Proximity Sensor
Model: SME-8-K5-LED-24
Part No.: 175 404
Technical Data:
- Measuring Principle: Magnetic reed
- Design: For T-slot
- Operating Voltage: 24 V DC
- Switching Output: Normally open
- Connector Type: Cable, 5 m
- Enclosure Rating: IP65, IP67
- Ambient Operating Temperature: -40 to 70°C
- Dimensions: 4 x 6 x 29 mm
- Housing Material: Epoxy resin, PET, PC
- Type of Mounting: Clamped in T-slot
