Festo 526622 Magnetic Reed Proximity Sensor
New
In stock9 unitsReady to ship
50,00$
Proximity Sensor
Magnetic reed proximity sensor for T-slot mounting, operating at 10“30 V AC/DC, with LED indication and IP65/IP67 protection for industrial automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

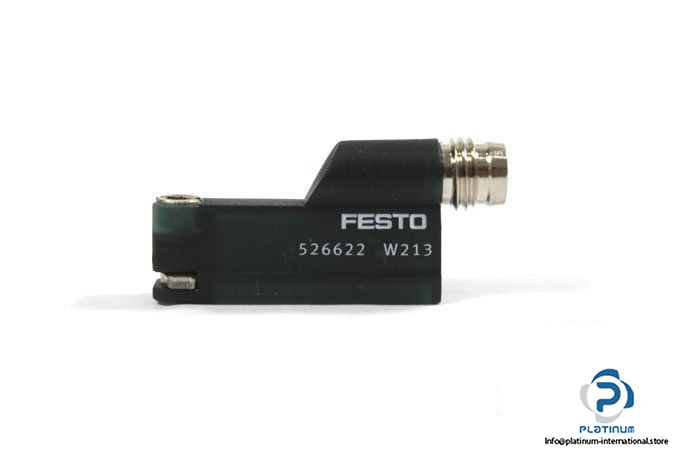

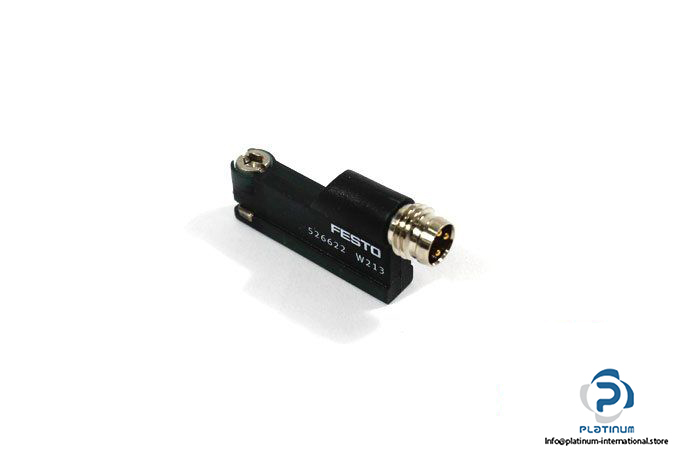

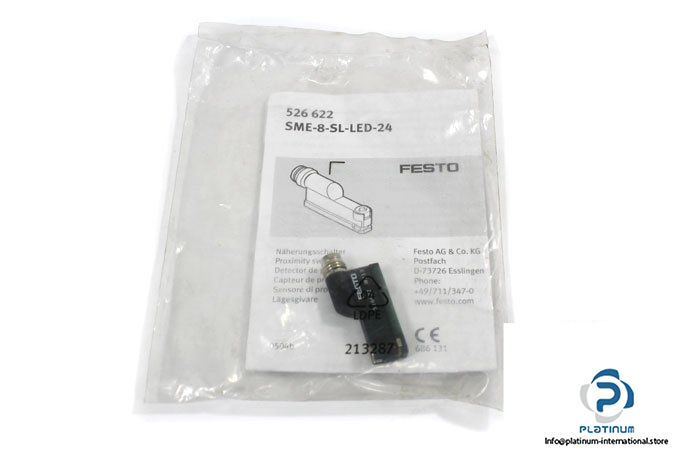

FESTO SME-8-SL-LED-24 Proximity Sensor
The FESTO SME8SLLED24 is a magnetic reed proximity sensor designed for precise position detection on pneumatic cylinders with T-slots. It provides reliable switching performance, LED status indication, and robust protection for industrial automation environments.
Manufacturer: FESTO
Type: Magnetic Reed Proximity Sensor, For T Slot
Model: SME-8-SL-LED-24
Part No.: 526622
| Measuring Principle | Magnetic Reed |
| Operating Voltage | 10 / 30 V AC/DC |
| Output Current (Max.) | 500 mA |
| Surge Resistance | 3 kV |
| Switching Frequency | 500 Hz |
| Switching Output | Normally Open (NO) |

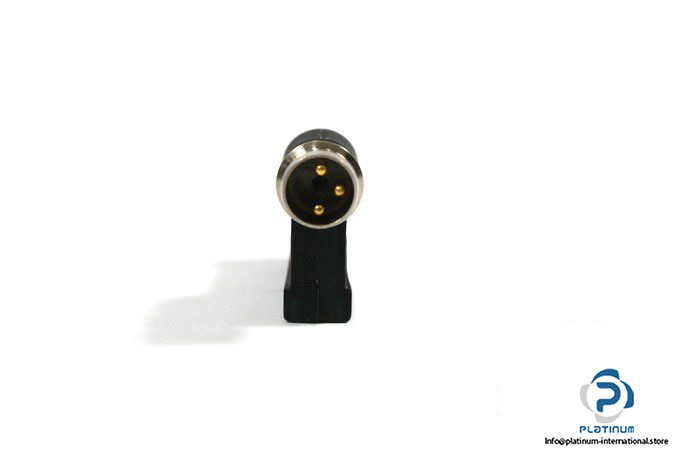

| Connector Type | M8 Connector, 3-Pin |
| Material | Epoxy Resin, PC, PET |
| Mounting | Clamped in T Slot |
| Protection Class | IP65, IP67 |
| Ambient Temperature | -40 / 60 °C |
