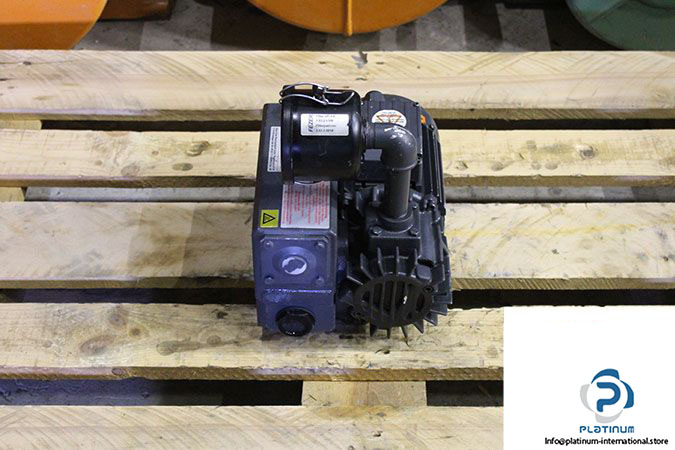

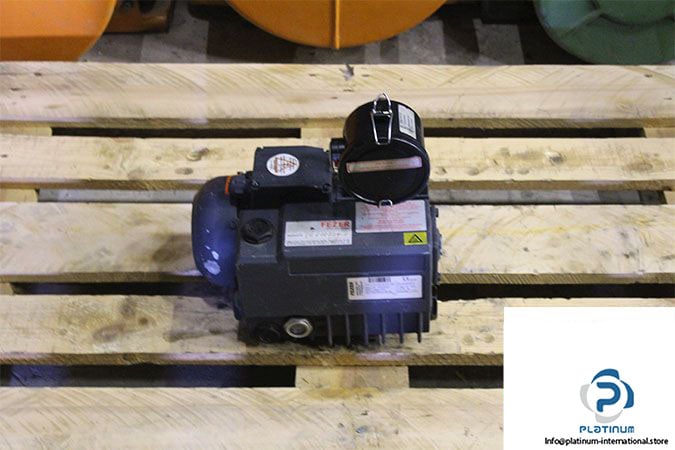

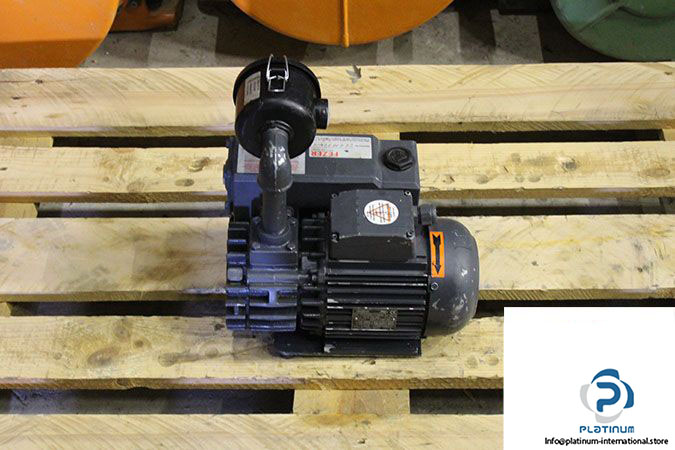

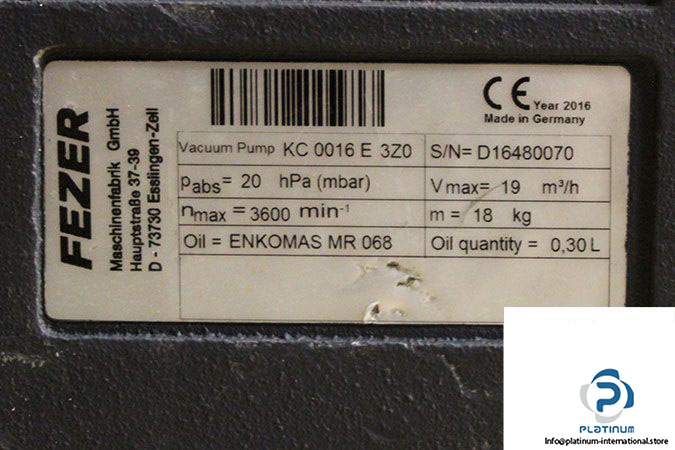

Fezer KC 0016 E 3Z0 Vacuum Pump

Manufacturer: Fezer

Type: Vacuum Pumps

Model: KC0016E3Z0

Vacuum [mbar]: 20

Max. Speed [rpm]: 3600

Capacity [min^-1]: 19

Motor Oil: ENKOMAS MR 068

Quantity Oil [L]: 0.3

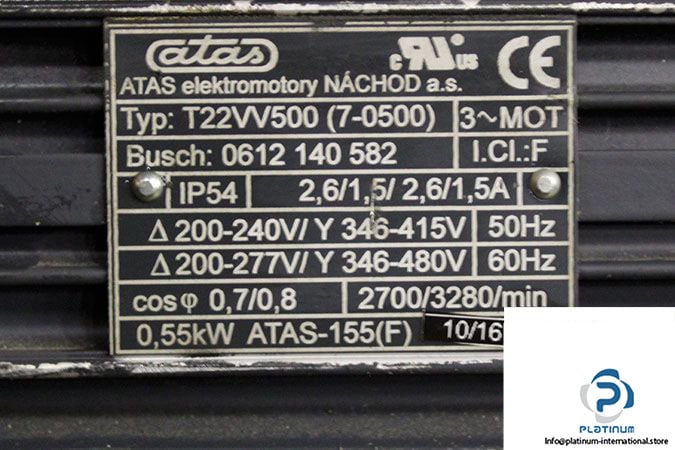

Attachment: ATAS T22VV500 (7-0500) THREE PHASE E-MOTOR

Manufacturer: ATAS

Type: Three Phase E-Motor

Model: T22VV500(7-0500)

Rated Voltage [V]: 200-240/346-415 Delta/Star

Rated Current [A]: 2.6/1.5

Rated Speed [rpm]: 2700

Power Factor [%]: 0.70

Rated Power [kW]: 0.55

Frequency [Hz]: 50

Rated Voltage [V]: 200-277/346-480 Delta/Star

Rated Current [A]: 2.6/1.5

Rated Speed [rpm]: 3280

Power Factor [%]: 0.80

Rated Power [kW]: 0.55

Frequency [Hz]: 60

Duty: S1

Protection Class [IP]: 54

Insulation Class: F
