FG PI 3115 PS 10 Filter Element
New
In stock9 unitsReady to ship
Filter Element
FG Filtrationgroup PI3115PS10 filter element with glass fibre media, 10 micron filtration rating, and high flow capacity for industrial filtration systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

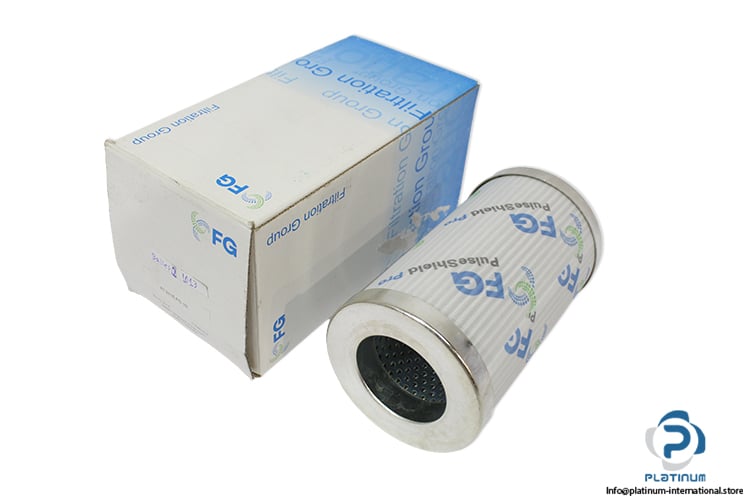

FG Filtrationgroup PI3115PS10 Filter Element
The FG Filtrationgroup PI3115PS10 is a high-performance filter element designed for efficient fluid filtration in industrial systems. Built with glass fibre filter media and a robust plastic end cap, it ensures reliable particle retention and long service life under demanding operating conditions.
Manufacturer: FG Filtrationgroup
Type: Filter Element

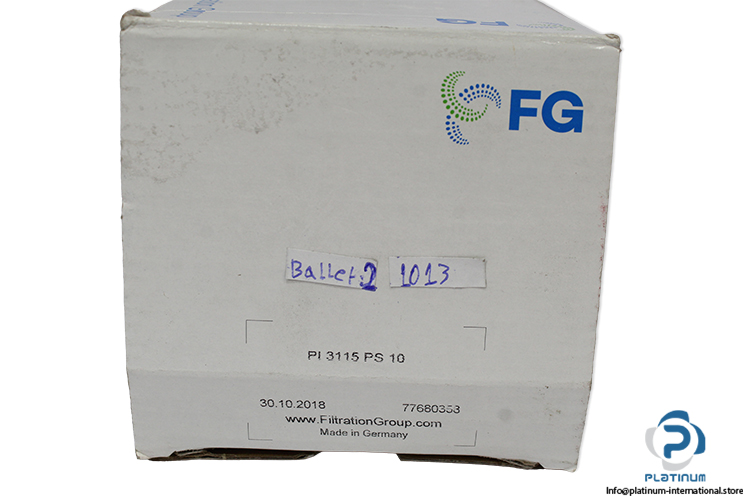

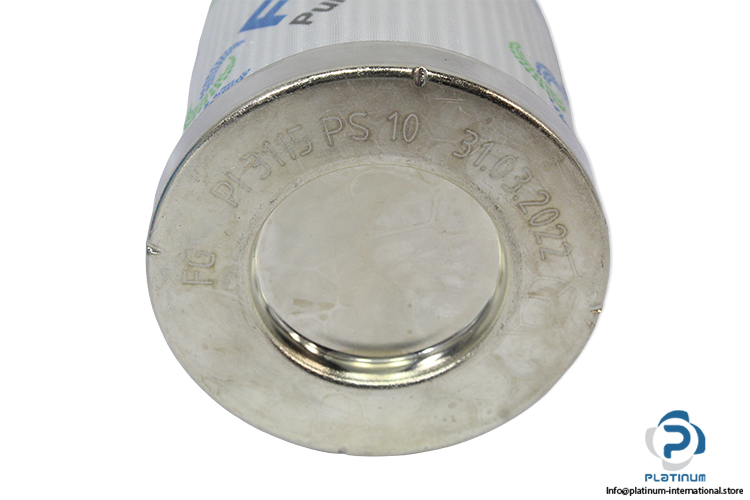

Model: PI3115PS10
Part No.: 77680358
| Element Type | FG Standard |
| Nominal Size | 150 l/min |
| Height | 142.00 mm |
| Outer Diameter | 84.00 mm |
| Inner Diameter | 47.50 mm |
| Mounting Diameter | 47.50 mm |
| Differential Pressure Resistance | 20 bar |
| Filter Surface | 2,425 cm² |
| Filter Material Code | PS 10 |
| Filter Material | Glass Fibre |
| Filter Rating | 10.00 µm |
| End Cap Material | Plastic End Cap PA |
