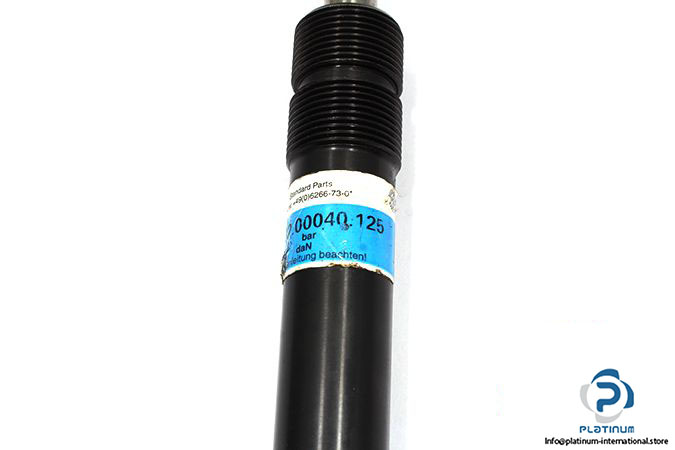

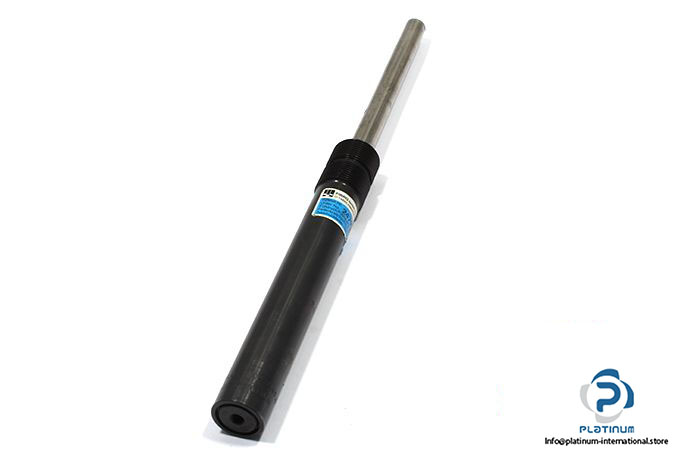

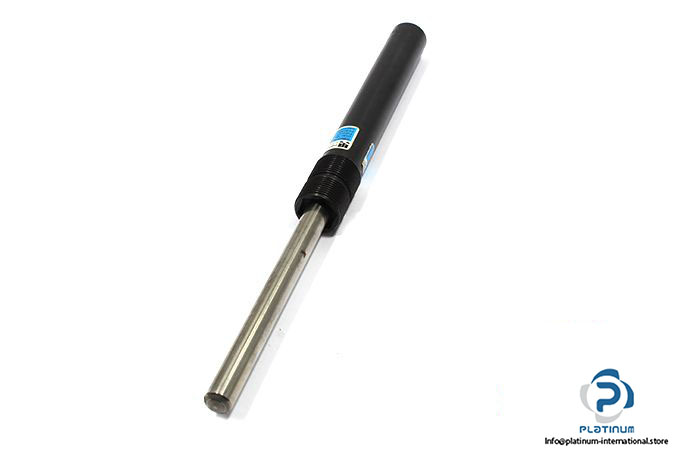

Fibro 2479.032.00040.125 Spring Plunger

Manufacturer: FIBRO
Type: SPRING PLUNGER
Model: 2479.032.00040.125

Spring plungers are used as ejectors, damper pins, fixing and retaining pins in many sectors of the tool, and fixture-making industries
Outer Diameter (mm): M24
Filling Pressure (Bar): 150
Step for threaded surface (mm): 1.5
Spring Force(daN): 40
Stroke: 125(126)
Pressure medium: Nitrogen – N2
Working temperature(°C): 0°C to +80
Piston Speed (m/s) : 1.6
