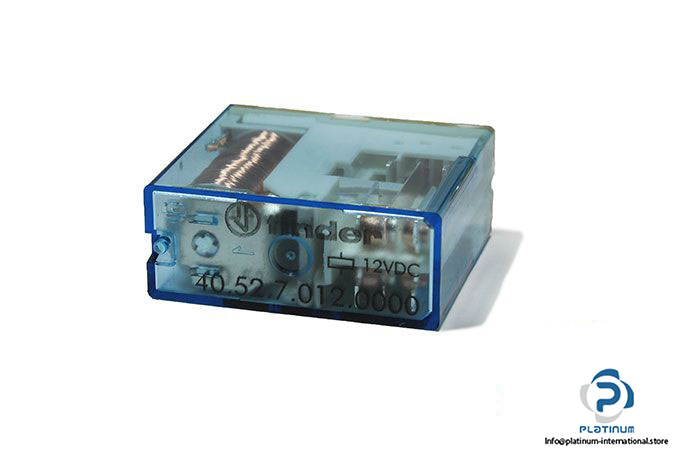

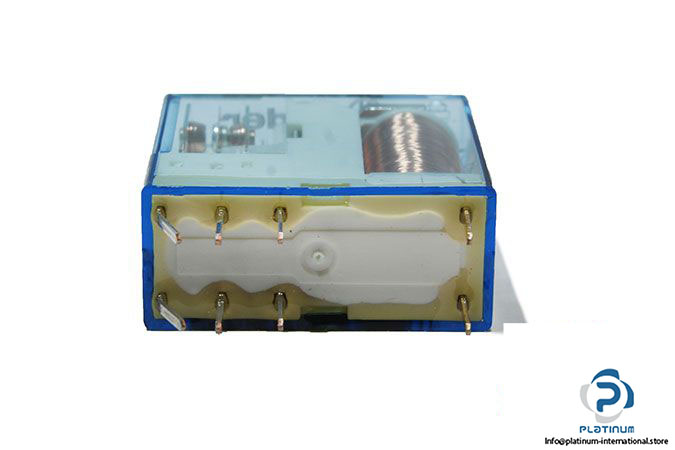

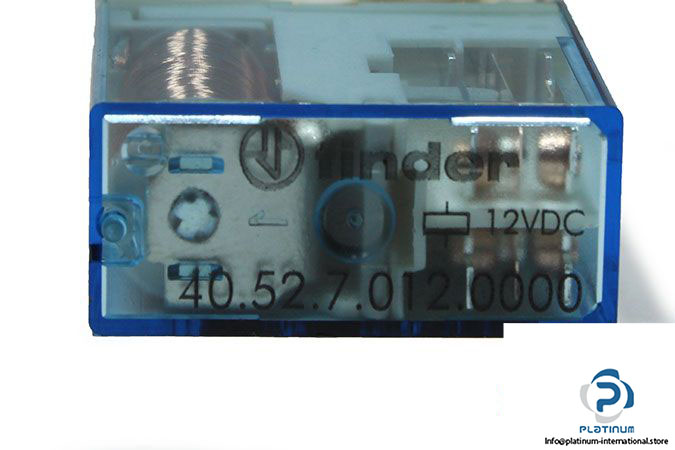

Finder 40.52.7.012.0000 Electromagnetic Relay

Manufacturer: FINDER

Type: Electromagnetic Relay

Model: 40.52.7.012.0000

Contacts Configuration: DPDT

Rated Coil Voltage: 12 VDC

Contacts Rating: 8 A / 250 VAC

Contacts Rating: 8 A / 30 VDC

Contact Current: max. 15A

Switched Voltage: max. 220 VDC, max. 400 VAC

Relay Variant: miniature, sensitive

Mounting: PCB, socket

Coil Resistance: 300Ω

Coil Power Consumption: 500 mW

Operating Temperature: -40 … 85°C

Contact material: AgNi

Terminal Pitch: 5 mm

Coil Current: 40mA

Dimensions: 29 X 12.4 X 25 mm

Weight: 0.02 Kg
