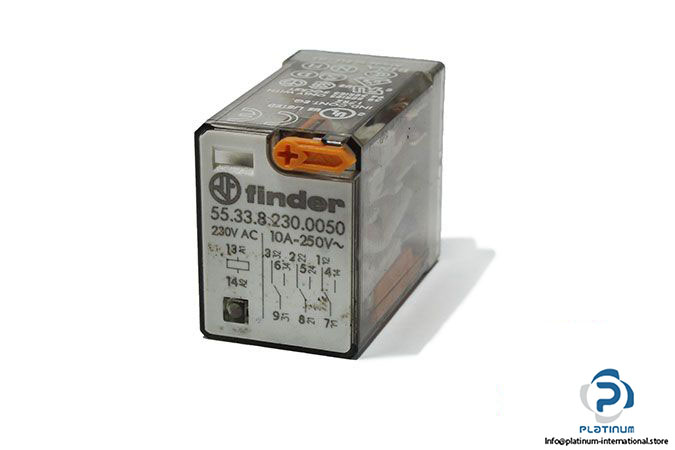

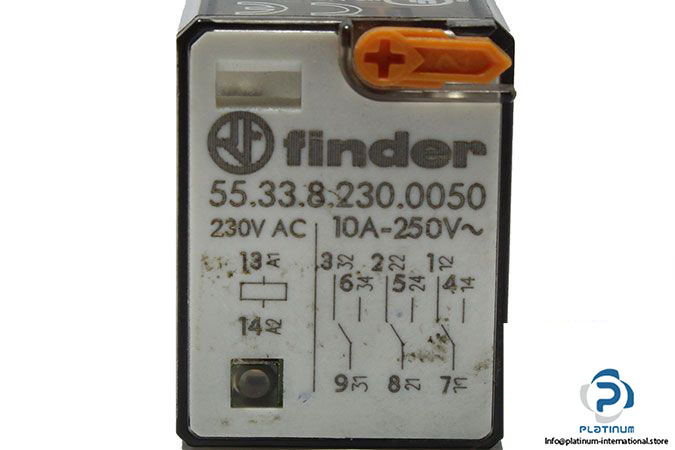

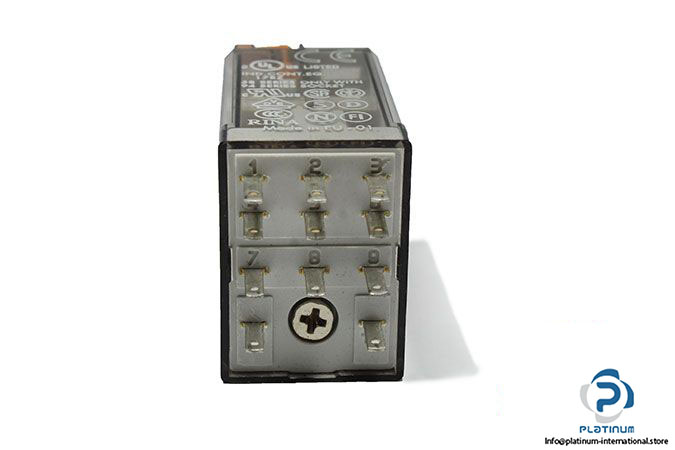

Finder 55.33.8.230.0050 Relay

Manufacturer: Finder

Type: Relay

Model: 55.33.8.230.0050

Contact Configuration: 3 CO (3PDT)

Rated Current/Maximum Peak Current: 10/20 A

Rated Voltage/ Maximum Switching Voltage: 250/400 VAC

Rated Load AC1: 2500 VA

Rated Load AC15 (230 V AC): 500 VA

Single Phase Motor Rating (230 V AC): 0.37 W

Standard Contact Material: AgNi

Ambient Temperature: –40 … +85 °C

Operate/Release Time: 10/5 ms

Coil Rated Power: 1.5/1 VA

No. of Poles: 3 pole, 10 A

Dimensions: 20 X 37.2 X 27 mm

Weight: 0.035 Kg
