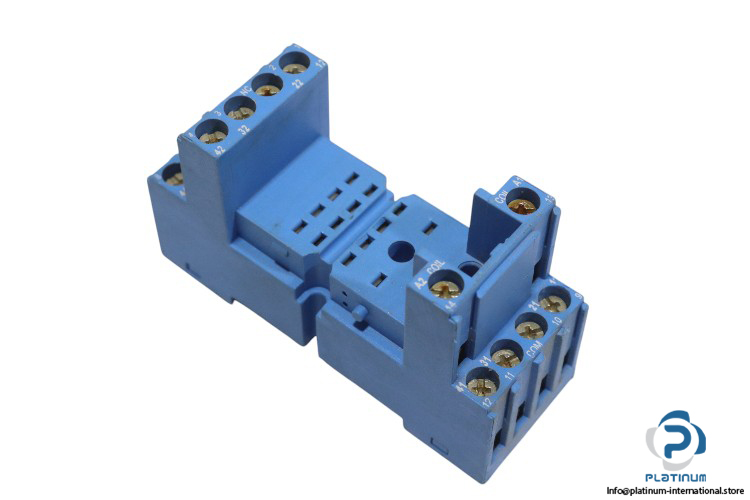

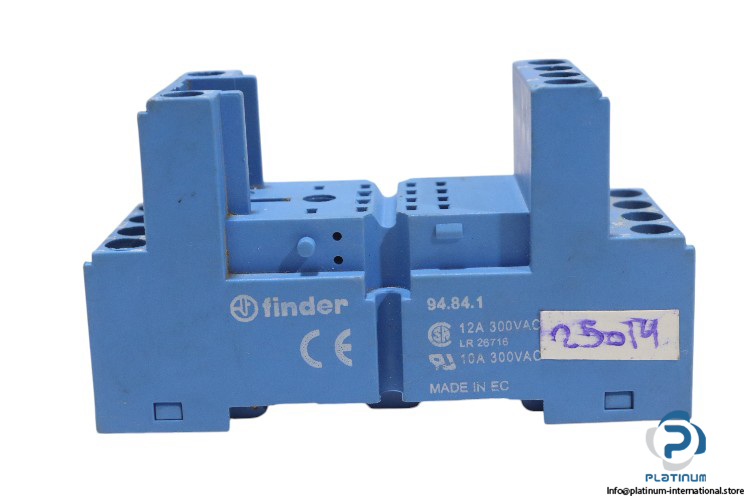

Finder 94.84.1 Relay Socket

Finder 94.84.1 Relay Socket

The Finder 94.84.1 Relay Socket is a high-quality mounting base designed for use with Finder Type 85.02 and 85.04 timers. Featuring robust screw terminal connections and a design suitable for panel or DIN rail mounting, this socket supports up to 300V AC and currents of 10/12 A. It ensures secure and stable relay installation in industrial control panels, automation systems, and time control circuits.

• Manufacturer: Finder
• Type: Relay Socket
• Model: 94.84.1

Technical Specifications:

• Rated Voltage: 300V AC
• Rated Current: 10/12 A
• Commercial Description: Screw terminal (Plate clamp) socket for panel or 35 mm (EN 60715) rail mount
• Compatible With: Finder Type 85.02 and 85.04 timers
• Ambient Temperature: -40…70 °C
• Dimensions (W x H x D): 27 x 76.4 x 38.8 mm

Applications:

• Industrial control systems
• Relay-based timing circuits
• Automation panels
