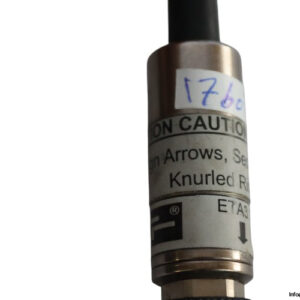

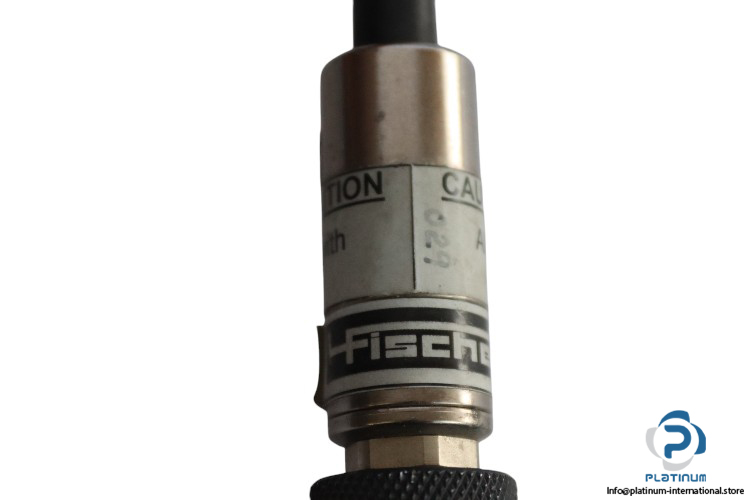

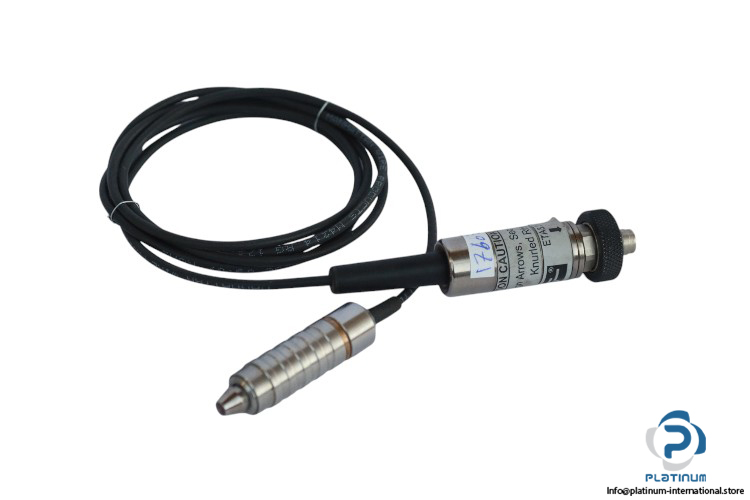

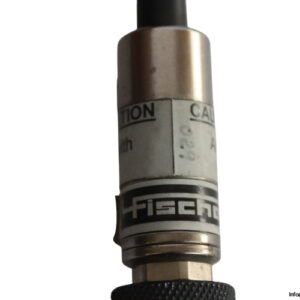

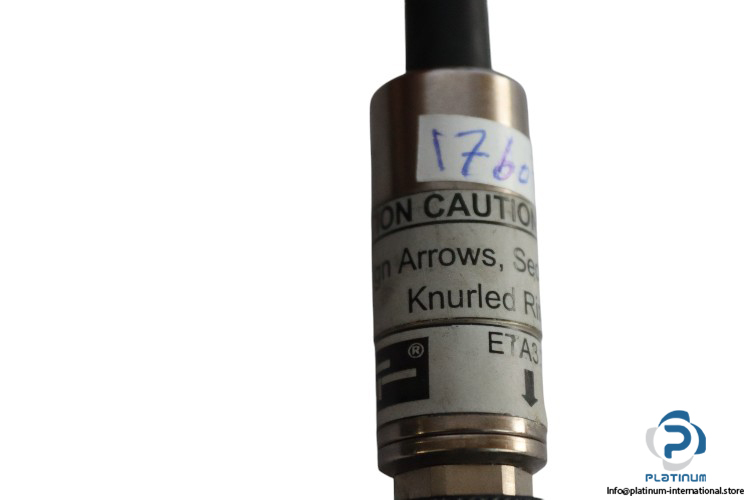

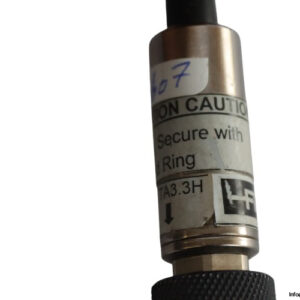

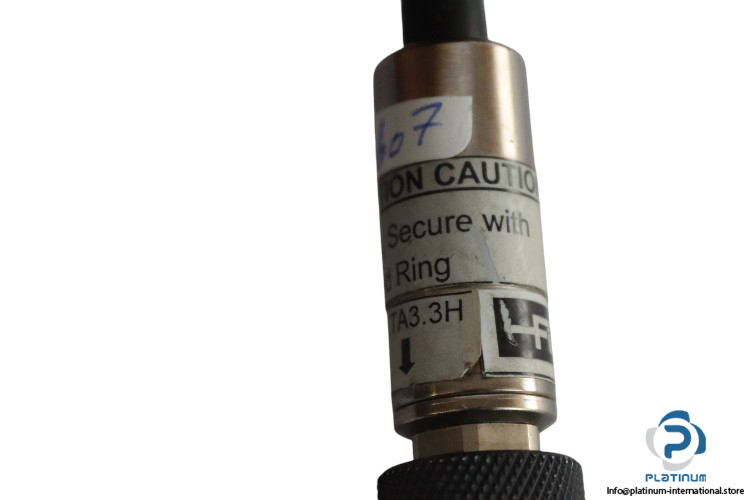

Fischer ETA3.3H Probe
Fischer Probe ETA33H “ Precision-engineered probe for coating thickness measurement and non-destructive testing. Robust design with 1200 μm range and compatibility with Fischer instruments.
Fischer Probe ETA33H
Manufacturer: Fischer
Type: Probe
Model: ETA33H
The Fischer Probe ETA33H is a precision-engineered tool designed for accurate and reliable coating thickness measurement, non-destructive testing, and material testing. With robust construction and advanced technology, this probe delivers exceptional performance in industrial and laboratory environments. It is compatible with a wide range of Fischer instruments, making it a versatile solution for measurement needs.
Features:
- Coating Thickness Measurement
- Non-Destructive Testing
- Material Testing
- Works With: All DUALSCOPE® and ISOSCOPE® hand-held instruments of the series MP, and the bench top instruments FISCHERSCOPE® MMS®, FISCHERSCOPE® MMS® PC, and FISCHERSCOPE® MMS® PC2 with module PERMASCOPE® E-Probes
Probe Design:
- Single tip axial probes with spring-loaded measuring system
- Robust design with wear-resistant probe tip
Technical Specifications:
- Measurement Range: Non-ferrous metal base materials (NF) 0 / 1200 μm / 0 / 47.24 mils
- Probe Tip Material: Hard metal
- Probe Tip Radius: 1.2 mm
- Probe Length: 60 mm
- Measuring Method: Amplitude sensitive eddy current method according to ISO 2360, ASTM D7091

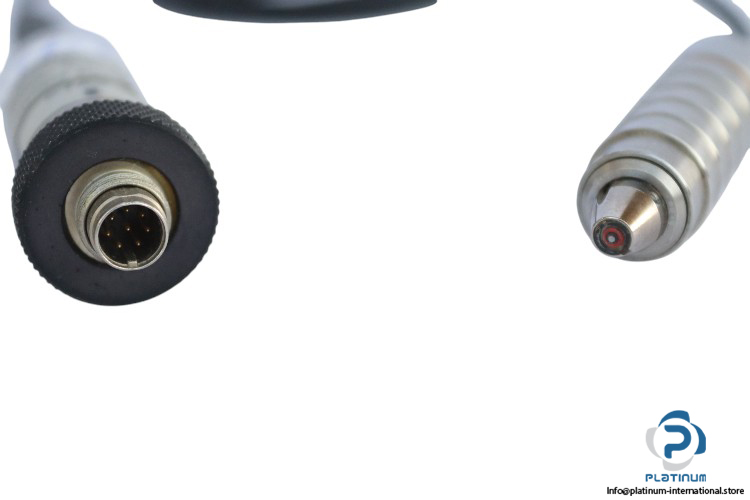

- Number of Pins: 8
- Operation Temperature: -10 to 40 degrees Celsius
- Cable Length: 1.5 m
The Fischer Probe ETA33H is built to provide precise measurements in a non-invasive manner, offering a robust and wear-resistant design for long-term use. Its compatibility with various Fischer instruments ensures flexibility and seamless integration into existing systems.
