Fisher 98 H Backpressure Regulator
Used
In stock1 unitReady to ship
BACKPRESSURE REGULATOR / RELIEF VALVE
The Fisher 98H regulator offers dependable, direct-operated pressure control for steam, fuel, and air system applications, built with rugged industrial materials.98HBackpressureCastControlControlsDirectEmersonFisherG1/4HighIndustrialIronoperatedPneumaticPressureregulatorReliefstainlessSteelSystemValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

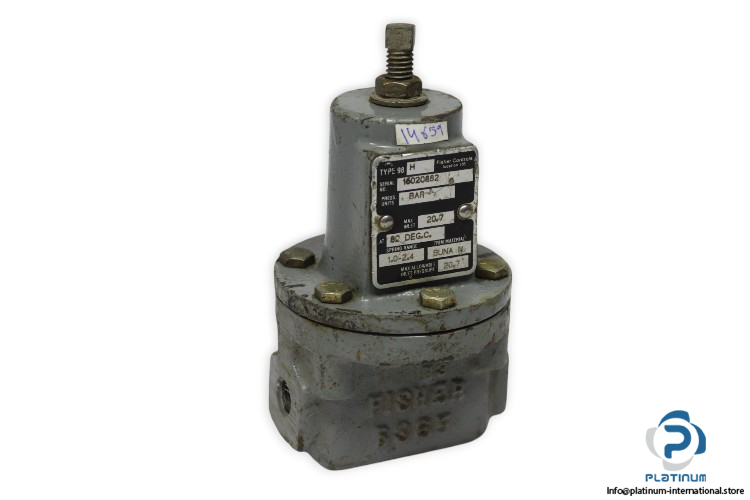

FISHER CONTROLS / EMERSON 98H BACKPRESSURE REGULATOR / RELIEF VALVE
The Fisher Controls / Emerson 98H is a high-performance, direct-operated backpressure regulator and relief valve designed for precision pressure control across diverse industrial systems.

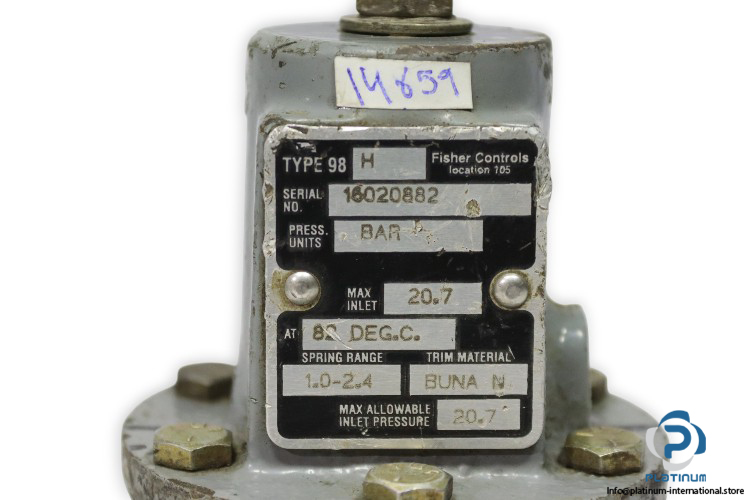

Manufacturer: Fisher Controls / Emerson
Type: Direct-operated High-pressure Backpressure Regulator / Relief Valve
Model: 98H
Serial No.: 16020882
Applications
Wash tanks, sterilizers, heaters
Fuel and oil lines
Air supply and pneumatic systems
Steam process lines
Temperature Capabilities
| Pressure Range | 0.34 to 13.8¯bar |
| Max. Inlet Pressure | 20.7 bar at 82°C |
| Max. Allowable Inlet Pressure | 20.7 bar |
| Spring Range Pressure | 1 to 2.4 bar |
| Operation | Internal Pressure Registration, External Sensing |
| Pneumatic Connection | G1/4 |
| Body and Spring Case Materials | Cast Iron, Steel, Stainless Steel |
| Trim Material | Buna N |
| Cast Iron | -40 to 207°C |
| Steel | -29 to 232°C |
| Stainless Steel | -40 to 232°C |
