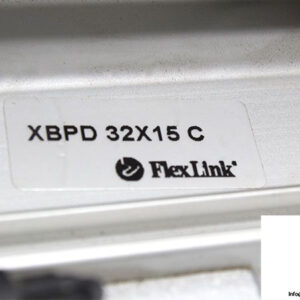

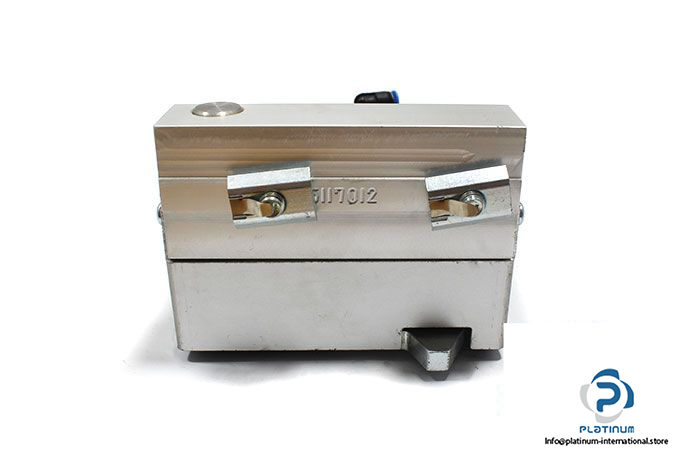

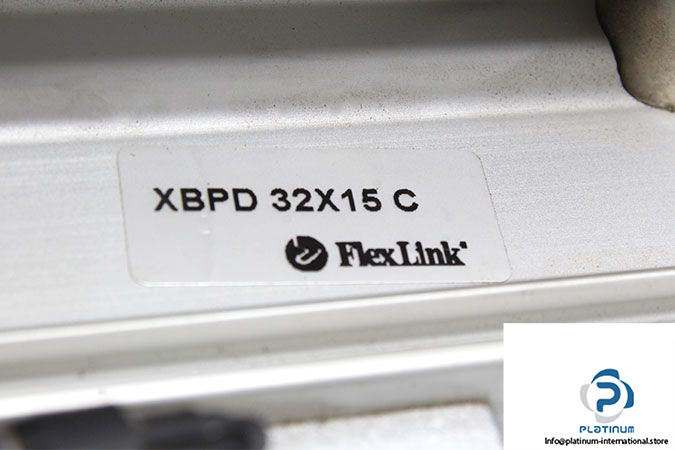

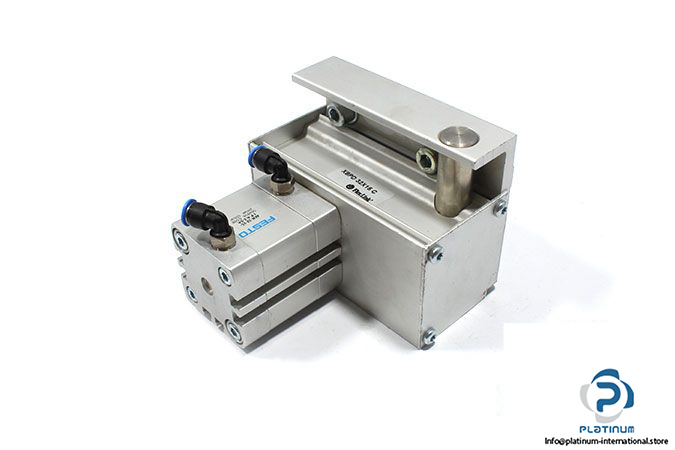

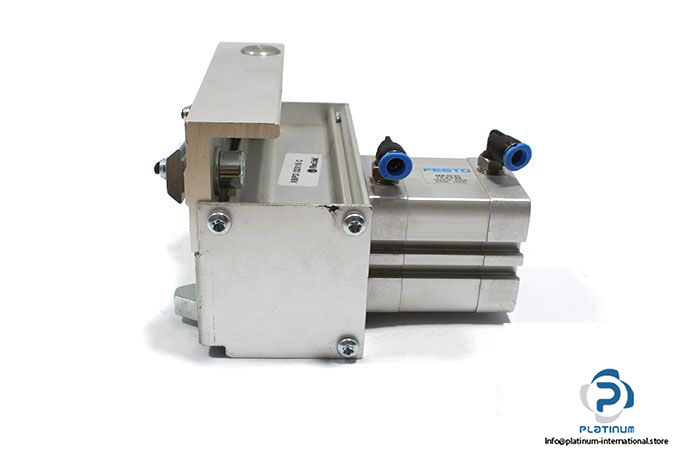

Flexlink Xbpd 32X15 C Pallet Stop

Manufacturer: FLEXLINK

Type: Pallet Stop

Model: XBPD 32X15 C

Material

,,Housing: anodized aluminium

,,Cover: stainless steel

Mode Of Actuated: Double-actuated

Locating accuracy: ±1 mm

Dimension ( Length X Width ): 114 X 117 mm

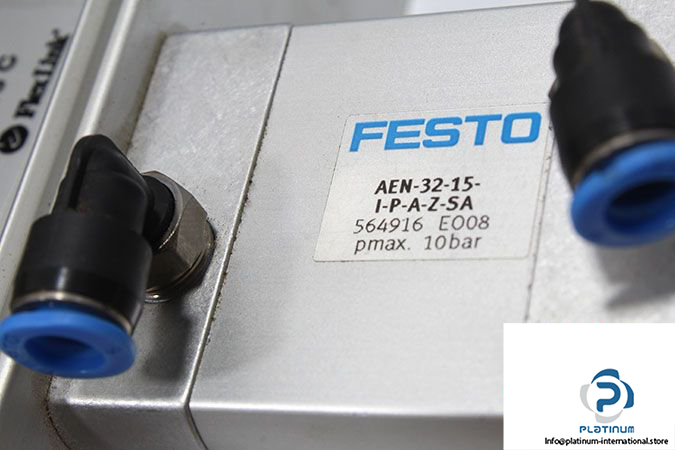

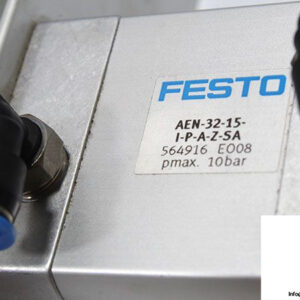

Attachment:  FESTO 564916 COMPACT CYLINDER

Manufacturer: FESTO

Type: Double-Acting Compact Cylinder

Model: AEN-32-15-I-P-A-Z-SA

Part No.: 564916

Materials

Cylinder Tube: Aluminium wrought alloy Smooth anodised

Piston rod: High-alloy steel

Stroke Length: 15 mm

Piston Diameter: 32 mm

Piston rod thread: Female thread

Operating Pressure: 0.6 … 10 bar

Cushioning: Flexible cushioning rings/pads at both ends

Position Sensing: Via proximity sensor

Pneumatic Connection: G1/8

Mode of operation: Double-acting

Temperature: -20 … 80 °C



Weight: 1.20 kg
