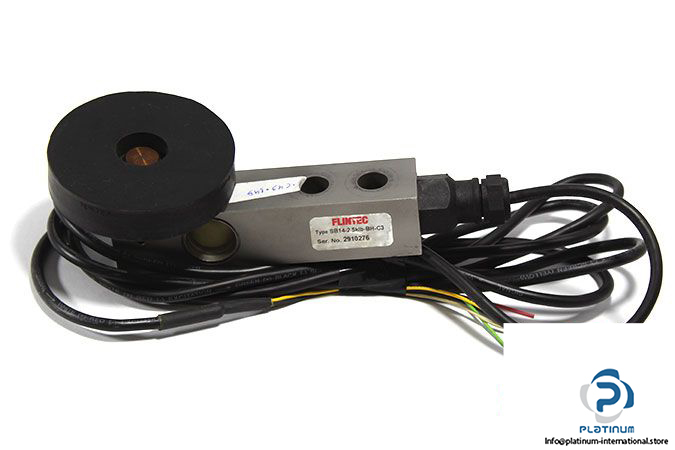

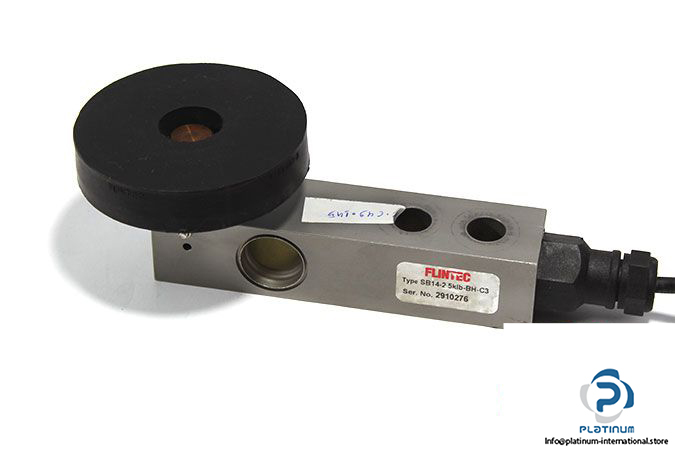

Flintec SB14-2.5KLB-BH-C3 MAX 1134 KG Beam Load Cell

Manufacturer: FLINTEC

Type: Planar Beam Load Cell

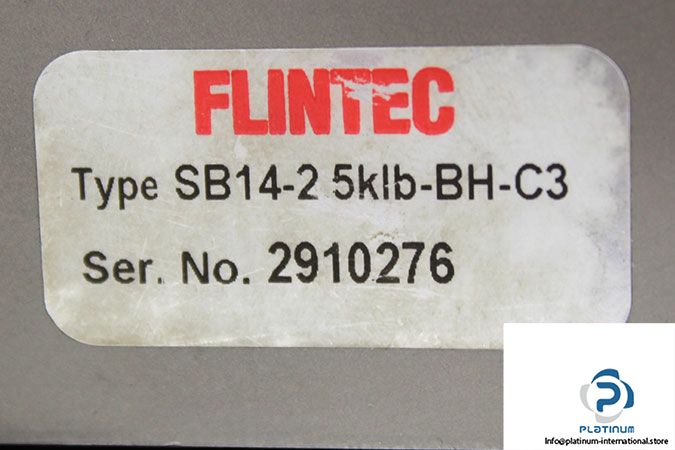

Model: SB14-2.5KLB-BH-C3

Maximum weight limit (E max): 1134 kg (2.5k lb)

Rated Output: 2 ± 0.1% mV/V

Excitation Voltage: 5…15 V

Input Resistance: 1,000 ± 50 Ω

Output Resistance: 1,000 ± 2 Ω

Operating Temperature: -10…40 °C

Element Material: Stainless Steel 17-4 PH (1.4548)

Protection Class: IP68

Class: C3

Weight: 1.2 kg
