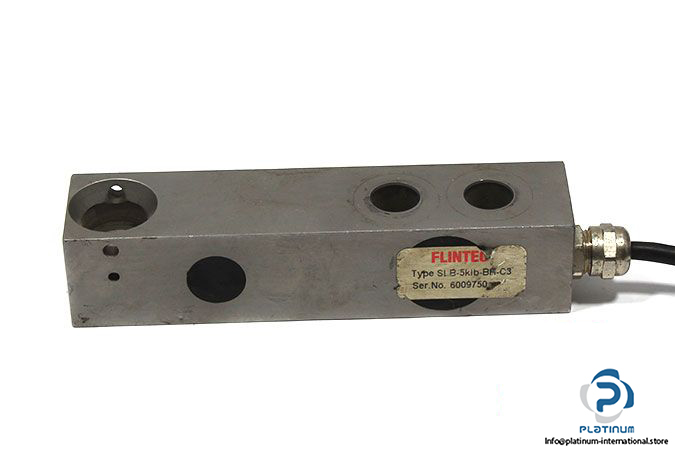

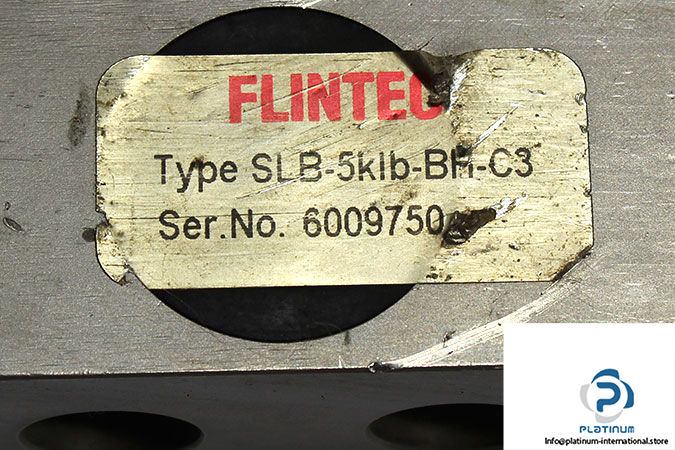

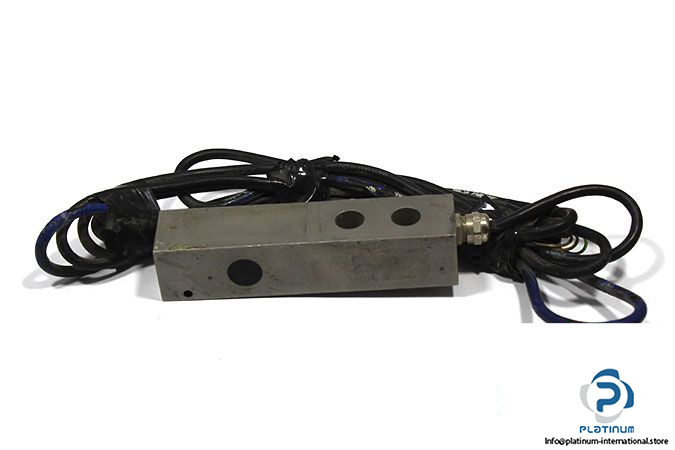

Flintec SLB-5KLB-BH-C3 MAX 2268 KG Beam Load Cell

Manufacturer: FLINTEC

Type: Beam Load Cell

Model: SLB-5KLB-BH-C3

Maximum weight limit (E max): 2268 kg (5k lb)

Rated Output: 2 ± 0.1% mV/V

Excitation Voltage: 5…15 V

Input Resistance: 1,100 ± 50 Ω

Output Resistance: 1,000 ± 2 Ω

Operating Temperature: -20…65 °C

Element Material: Stainless Steel 17-4 PH (1.4548)

Protection Class: IP67

Class: C3

Weight: 0.900 kg
