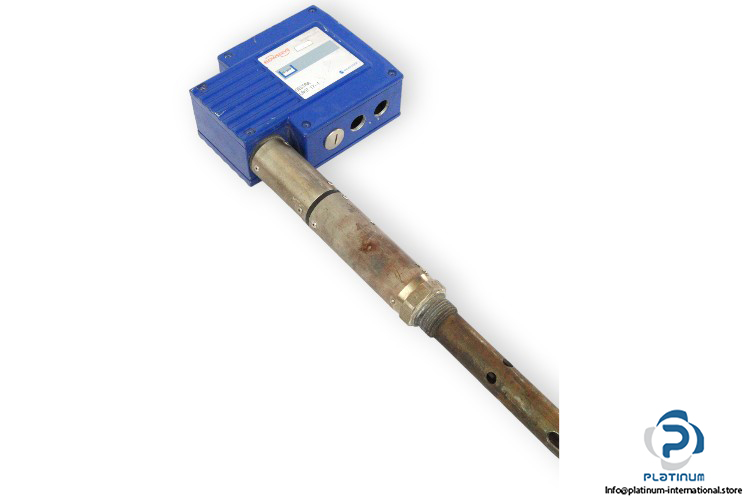

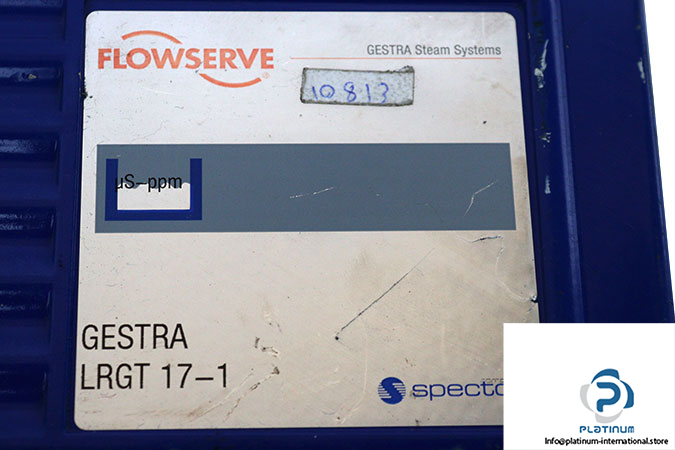

Flowserve Lrgt 17-1 Conductivity Transmitter

Manufacture: Flowserve
Type: Conductivity transmitter
Model: LRGT171

Voltage supply: 24 V DC
Fuse: Electronic thermal fuse Tmax = 85 °C, hysteresis – 2 K
Power consumption: 4.5 watt
Service pressure: 60 bar at 275°C
Connection: Screwed 1″ BSP (ISO 228-1)
Materials: spacer disk: PEEK HT
Measuring length and length of installation: 200, 300, 400, 500, 600, 800, 1000 mm
Temperature sensor: Resistance thermometer Pt 1000
Measuring cycle: 1 sec.
Time constant: Temperature: 9 sec, Conductivity: 14 sec
