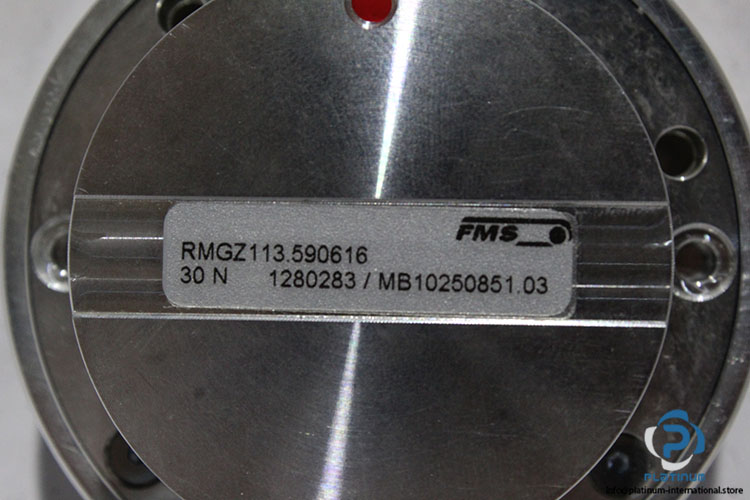

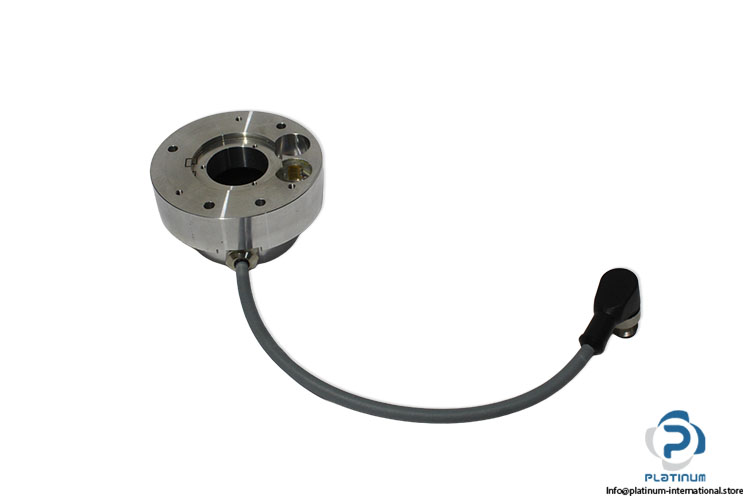

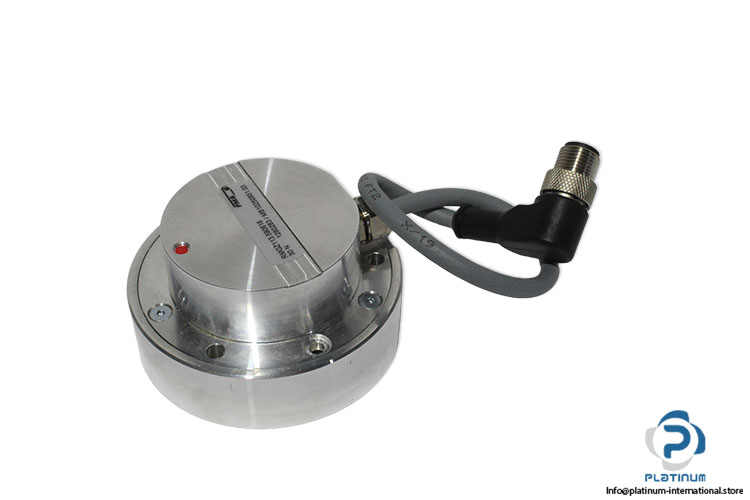

FMS RMGZ113.590616 Compact Force Sensor FOR Pulley

Name: FMS RMGZ113.590616 COMPACT FORCE SENSOR FOR PULLEY
SKU: 1093792
Availability: LimitedAvailability

fms-RMGZ113-590616-compact-force-sensor-for-pulley-(new)-(carton)

fms-RMGZ113-590616-compact-force-sensor-for-pulley-(new)-(carton)-1

fms-RMGZ113-590616-compact-force-sensor-for-pulley-(new)-(carton)-2

fms-RMGZ113-590616-compact-force-sensor-for-pulley-(new)-(carton)-3

fms-RMGZ113-590616-compact-force-sensor-for-pulley-(new)-(carton)-4

fms-RMGZ113-590616-compact-force-sensor-for-pulley-(new)-(carton)-5

fms-RMGZ113-590616-compact-force-sensor-for-pulley-(new)-(carton)-6

New

In stock7 unitsReady to ship

Compact Force Sensor for Pulley FMS compact force sensor with 30 N nominal force rating, 1.8 mV/V sensitivity, stainless steel construction, and 5-pin connector for industrial force and tension measurement applications.

Manufacturer

FMS

SKU

1093792

Category

Sensors

Condition

New

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Series	RMGZ100C
Code	1280283 / MB10250851.03/ 1280283
Connection Type	Connector, 5 pins
Power supply	1 to 10 VDC
Nominal Force Rating	30N
Sensitivity	1.8 mV/ V
Tolerance of sensitivity	< ± 0.2 %
Temperature range	–10 °C to +60 °C
Material	Stainless steel
Protection class	IP 42

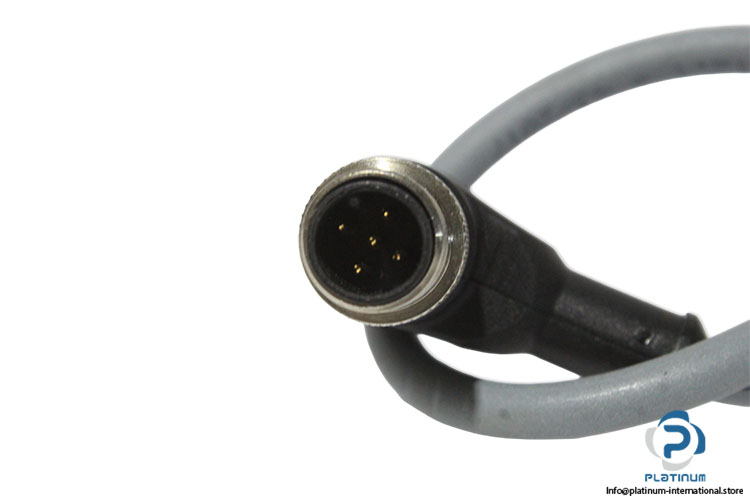

Electrical connection	Male connector M16x0.75, 5-pole
Repeatability error	0.05 %
Measuring range	30 : 1
Condition	New
Stock key	CON003
SKU	1093792
Weight	0,35
