Forkardt 4CVN 400 Face Scroll Chuck
Used
In stock1 unitReady to ship
FACE SCROLL CHUCK
Forkardt 4CVN 400 Face Scroll Chuck with 400 feed size and 130 mm bore, featuring high centering accuracy and spring stability. Includes ATLANTA 572 66 025 Servo-Worm Gearbox for 9.30 kW power at 6.75 ratio.0251304004CVN5726.75669.30AtlantaboreChuckconnectionF400FacefeedForkardtfour-jawGearboxHighIndustrialjawkWmmPrecisionratioscrollServo-WormSizeTorque
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FORKARDT 4CVN 400 FACE SCROLL CHUCK

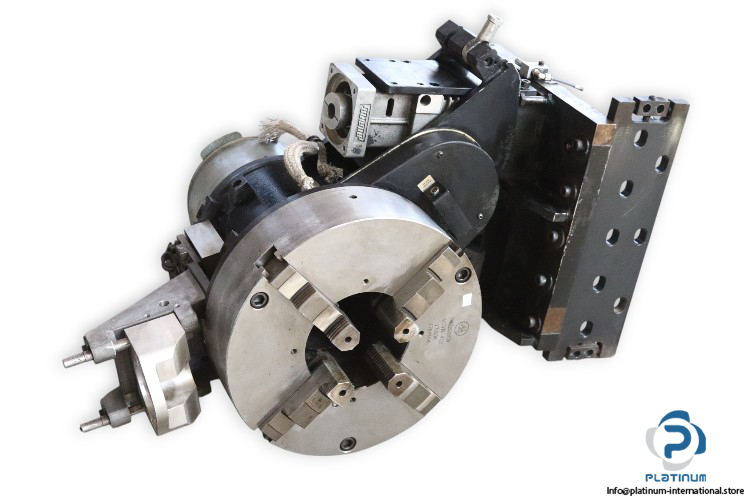

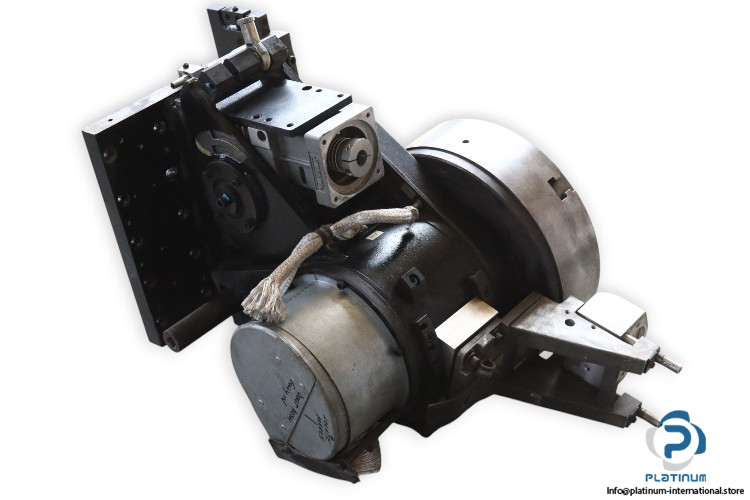

The Forkardt 4CVN 400 is a precision-engineered four-jaw face scroll chuck designed for heavy-duty clamping tasks. Paired with an ATLANTA 572 66 025 Servo-Worm Gearbox, this system delivers exceptional rotational accuracy and high torque control in demanding machining operations.
Manufacturer: Forkardt

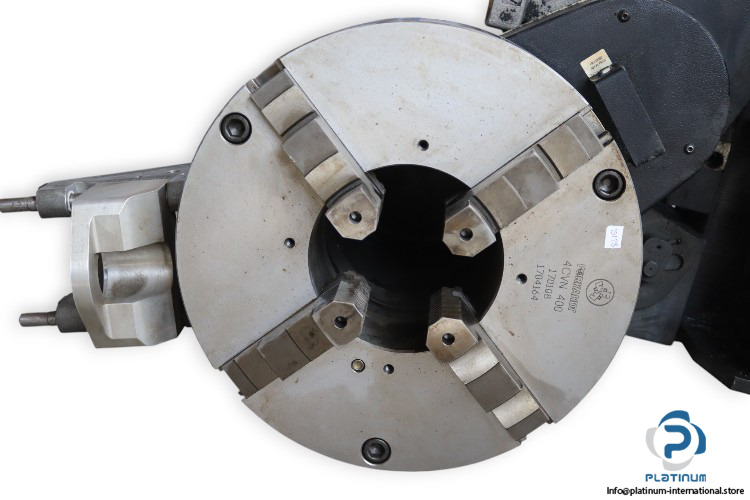

Type: Face Scroll Chuck (Four-Jaw Chuck)
Model: 4CVN 400

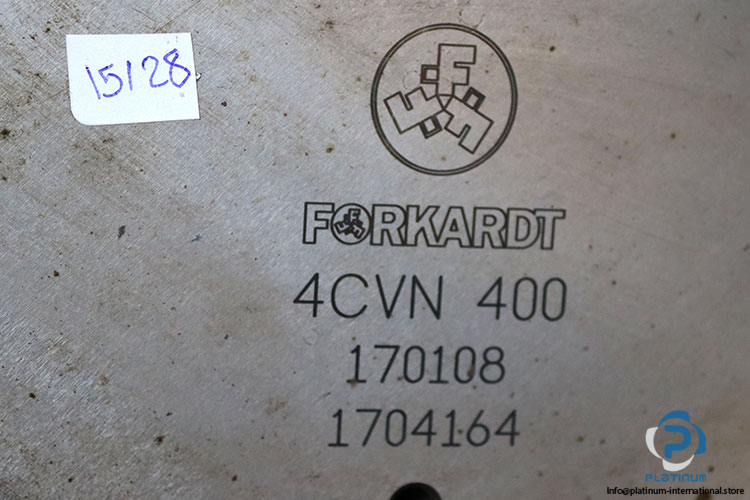

Code: 170108 / 1704164

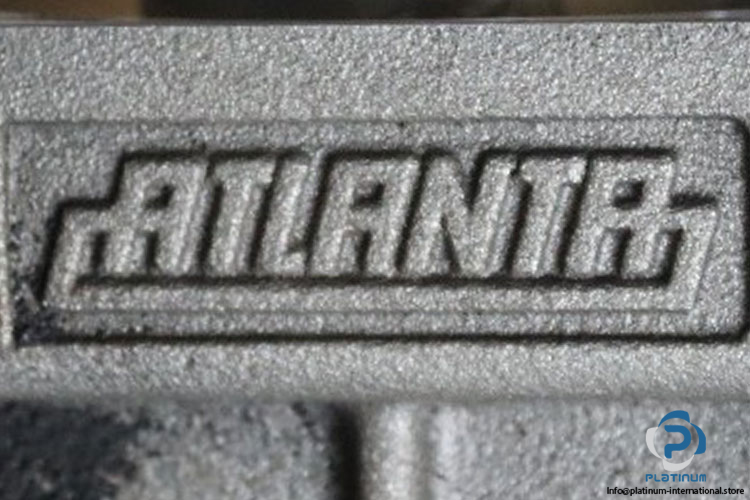

Attached Gearbox
| Feed Size | 400 |
| Bore | 130 mm |
| Centering Diameter | 380 mm |
| Jaw Connection | F400 |
| Height of Centering | 6 mm |
| Spring Constant | 44.20 daN mm/Nm |
| Moment | 260 |
| Speed | 2200 rpm |

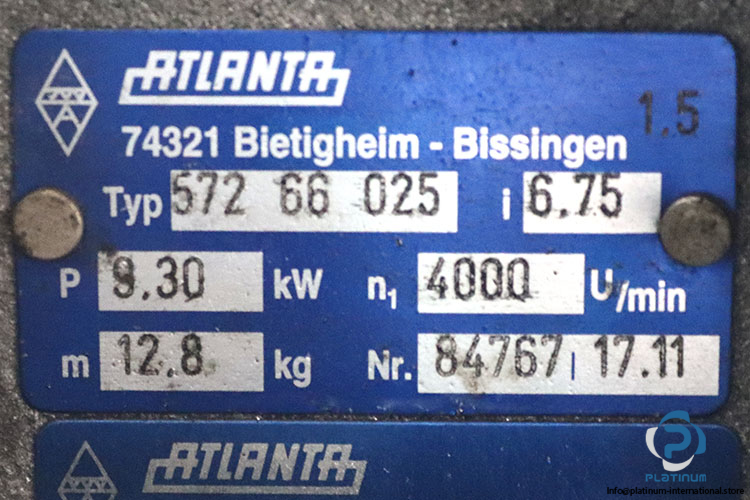

| Part No. | 84767 17.11 |
| Power | 9.30 kW |
| Speed | 4000 rpm |
| Ratio | 6.75 |
