Fornovogas 2DA300/75 Compressor
New
Available on request
COMPRESSOR BODY
High-performance compressor body by Fornovogas designed for dry biomethane injection, featuring non-lubricated V-shaped cylinders, up to four compression stages, and exceptional vibration control for demanding industrial use.2DA300/75biomethaneBodyCNGcompressorCylindersDryFornovogasGashigh-pressureIndustrialinjectionlowMulti-StageNon-LubricatedVibration
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

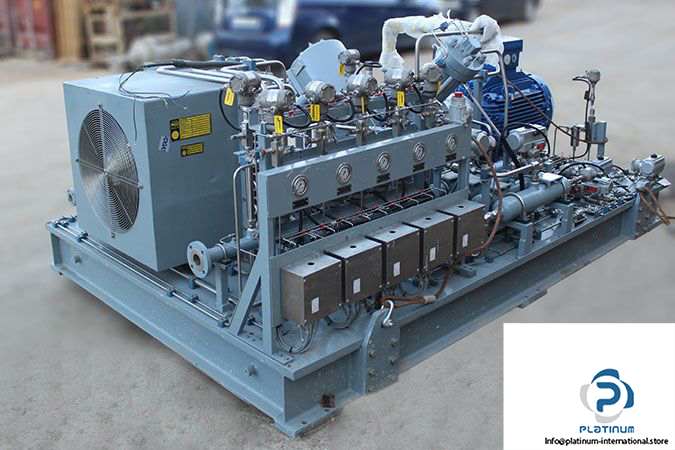

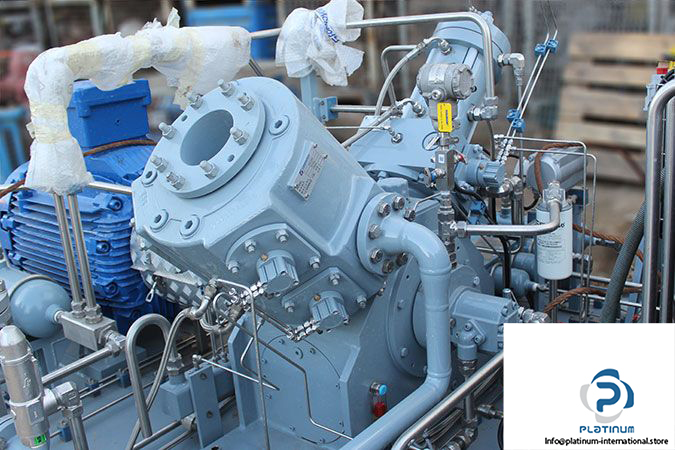

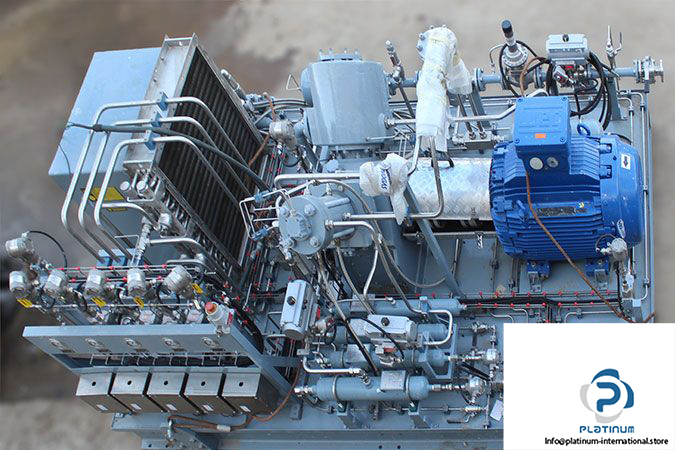

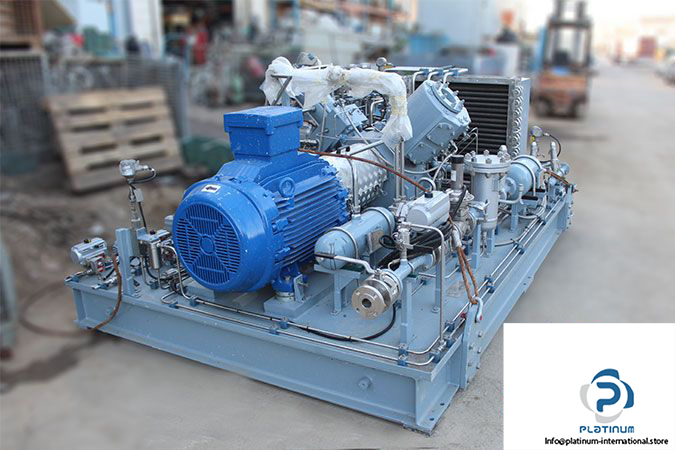

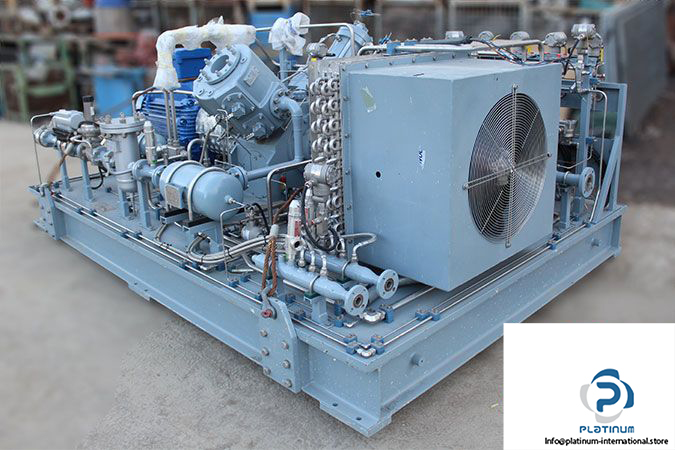

FORNOVOGAS 2DA 300/75 COMPRESSOR BODY
The Fornovogas 2DA 300/75 compressor body is engineered for advanced gas injection systems using dry biomethane. With non-lubricated cylinders and a robust V-shaped configuration, it supports extremely low suction pressures up to 375 bar (G) MAWP. Built for performance and reliability, it offers direct coupling, low vibration, and up to four compression stages without the need for a booster.
Manufacturer: Fornovogas
Type: Compressor Body

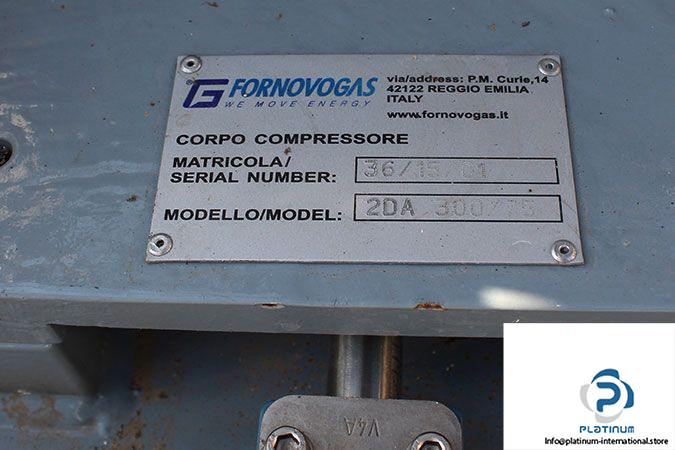

Model: 2DA 300/75
Compressor Features
- Non-lubricated Cylinders

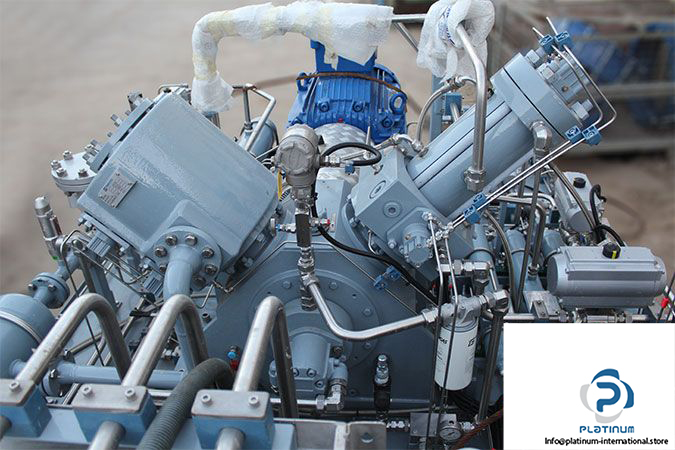

- Two Cylinders, V Shape Configuration
- Cylinders for Very Low Suction Pressures and up to 375 bar (G) MAWP
- Extremely Low Vibration Amplitudes, Velocities, and Accelerations
- Sturdy Yet Compact Design

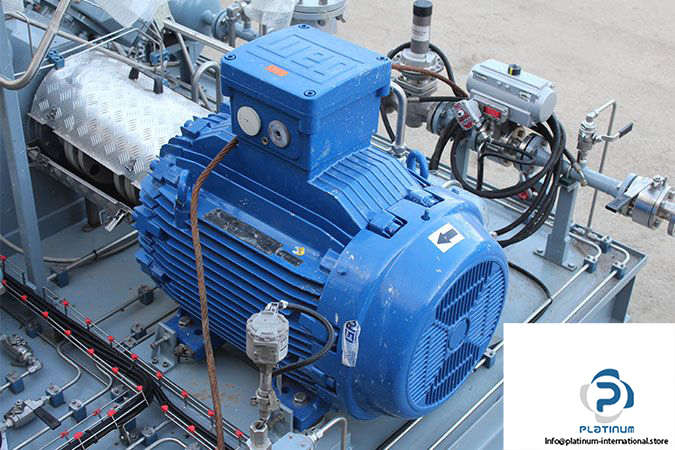

- Direct Coupling (Electrical or Gas Engine Driven)
- Speed Range From 700 to 1800 RPM
- Up to Four Compression Stages (No Booster Required)
- Wide Inlet Pressure Range: 0.02 to 90 bar (G)
- FEA-Optimized Components for Advanced CNG Compression
- High Durability, Stability, and Vibration Control
Service
- Gas Injection
- Gas Type: Dry Biomethane

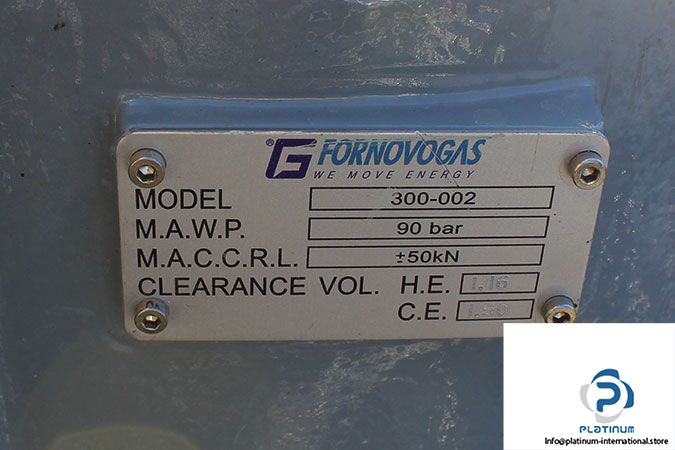

FORNOVOGAS 300-002 Specifications
- Maximum Allowable Working Pressure: 90 bar
- Maximum Allowable Continuous Rod Load: ±50 kN
- Clearance Volume: HE. 1.16 / CE. 1.50

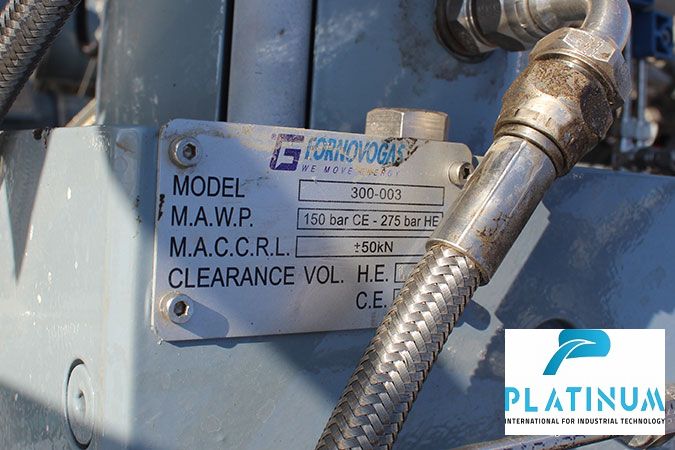

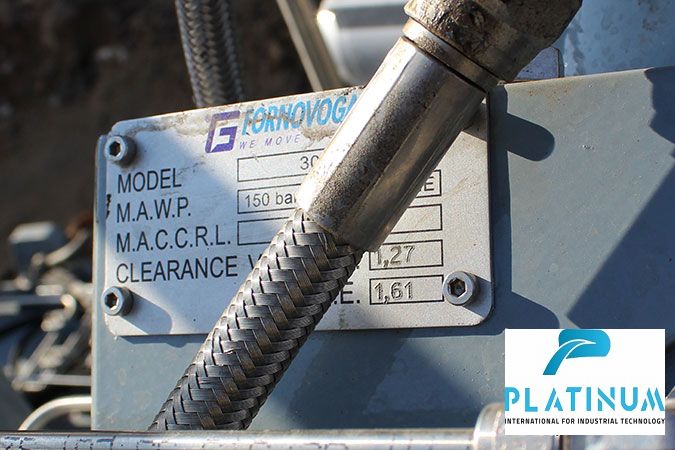

FORNOVOGAS 300-003 Specifications
- Maximum Allowable Working Pressure: 150 bar CE / 275 bar HE
- Maximum Allowable Continuous Rod Load: ±50 kN
- Clearance Volume: HE. 1.27 / CE. 1.61
