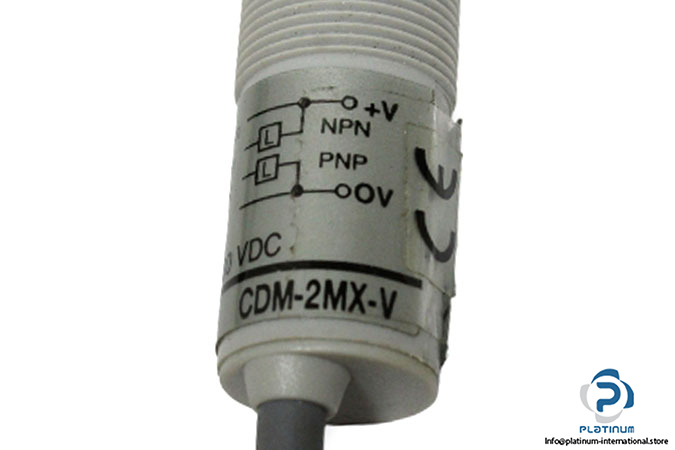

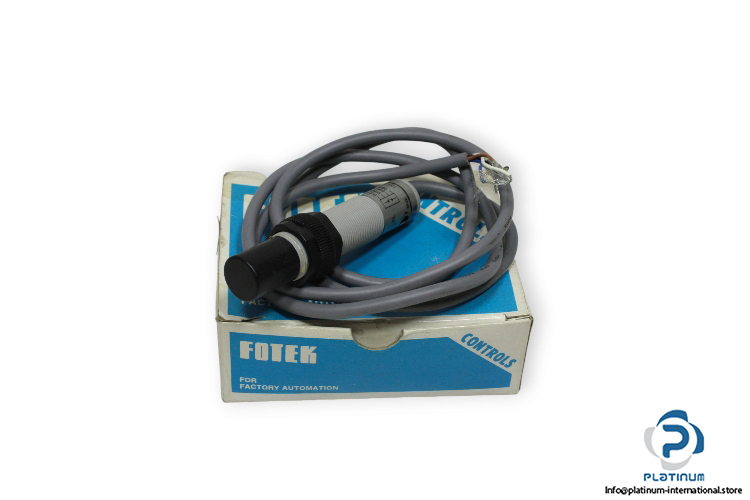

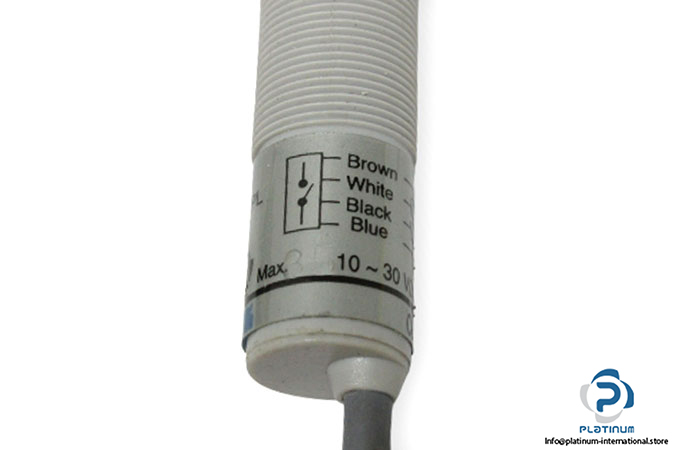

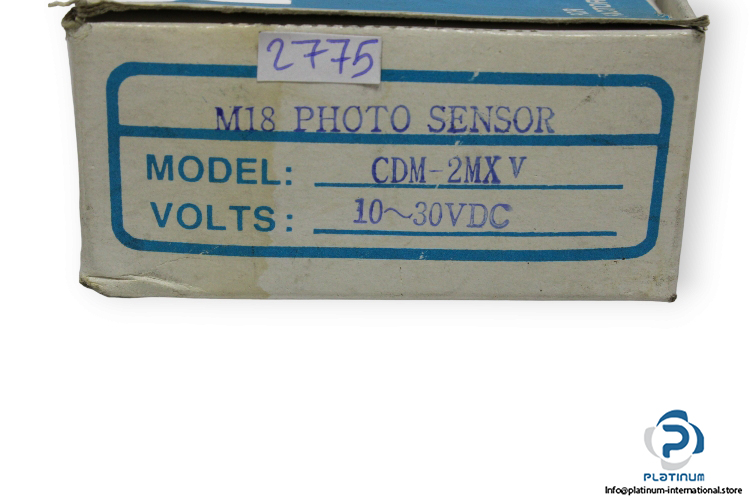

Fotek CDM-2MX-V Photo Sensor

Manufacturer: Fotek
Type: Photo Sensor/ Mirror Reflex
Model: CDM2MXV

Sensing Direction: Vertical
Sensing Distance: 100 … 2000 mm
Operating Voltage: 10 … 30 V DC
Current Consumption: 20 mA max.
Output Method: NPN & PNP
Output Status: Normally open
Connector Type: M18
Response time: 2 ms
No. of pins: 4
Housing material: intensive polymid
Sensitivity Adjuster: 270°Trimmer
Operating temperature: -20 … 60°C
Protection degree: IP66
