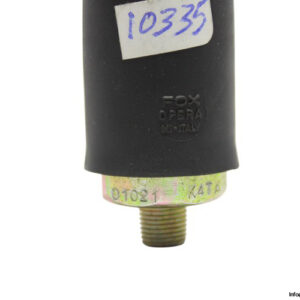

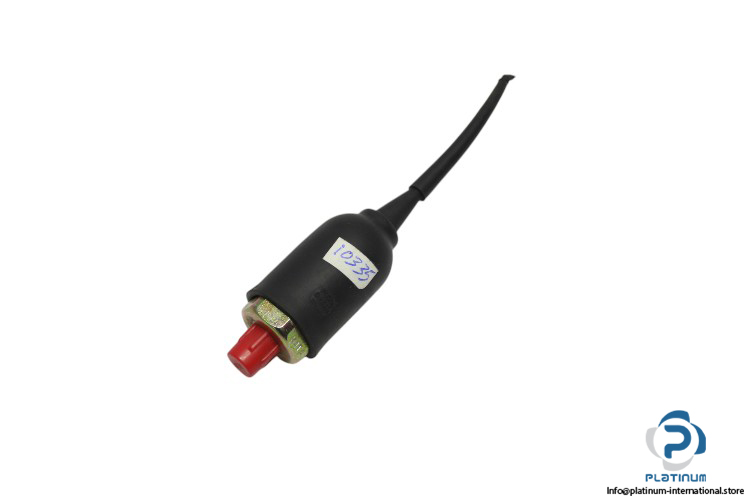

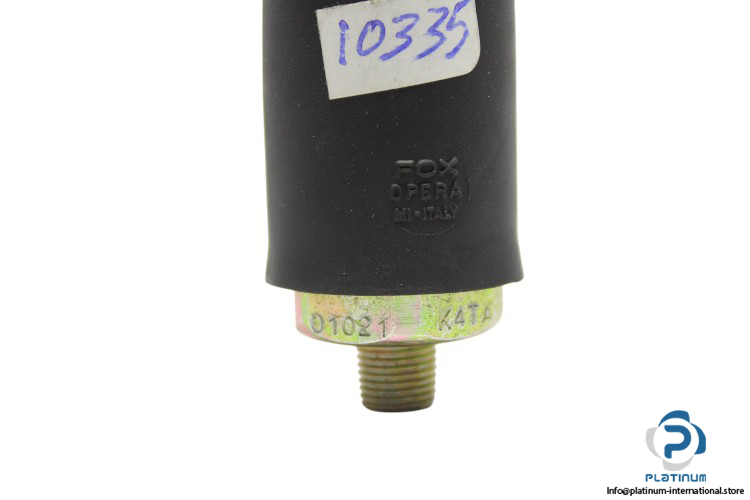

FOX Opera K4TA Pressure Switch With Rubber CAP

FOX OPERA Pressure Switch K4TA

The FOX OPERA Pressure Switch K4TA is designed to provide reliable and precise pressure monitoring in various industrial applications. With a switching pressure range from 5 to 50 bar and a maximum working pressure of 300 bar, this switch is built to handle high-pressure environments. It features a rated voltage of 250 V AC / 110 V DC and a rated current of 0.5 A / 0.15 A, offering versatility in power systems. The normally open (NO) switch output ensures seamless operation, and the G 1/8 pressure connection size provides easy integration. With an IP54 protection class and an operating temperature range of -25 to 85°C, the K4TA is a robust choice for demanding conditions.

Manufacturer: FOX OPERA

Type: Pressure Switch

Model: K4TA

Technical Specifications

• Switching Pressure Range: 5 / 50 bar
• Working Pressure Max.: 300 bar
• Rated Voltage: 250 V AC / 110 V DC
• Rated Current: 0.5 A / 0.15 A
• Switch Output: Normally Open (NO)
• Pressure Connection Size: G 1/8
• Protection Class: IP54
• Temperature: -25 / 85 °C
• Length, Diameter: 47 mm, 26 mm
