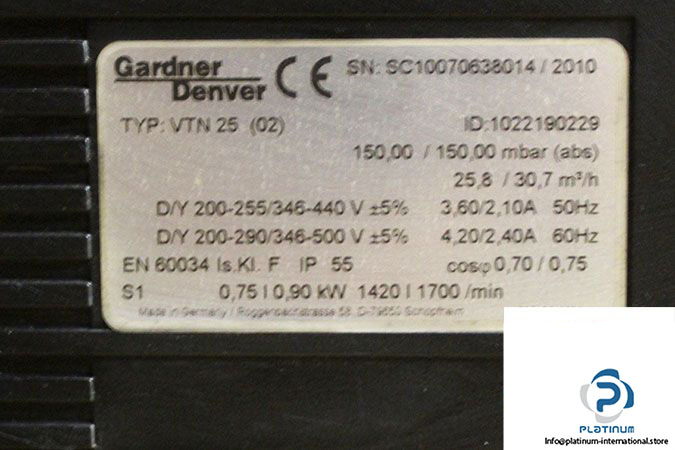

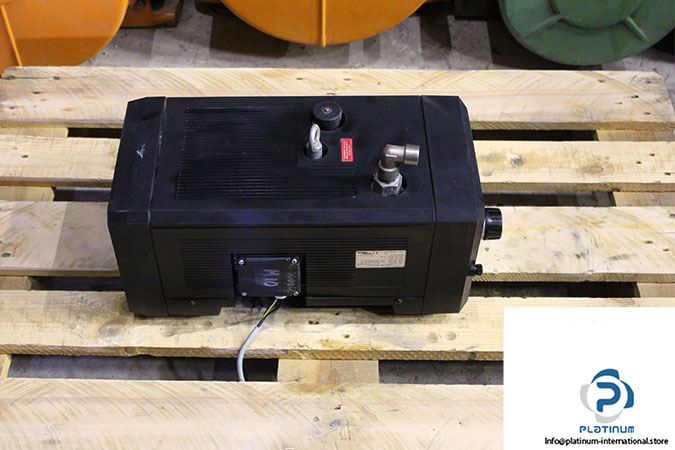

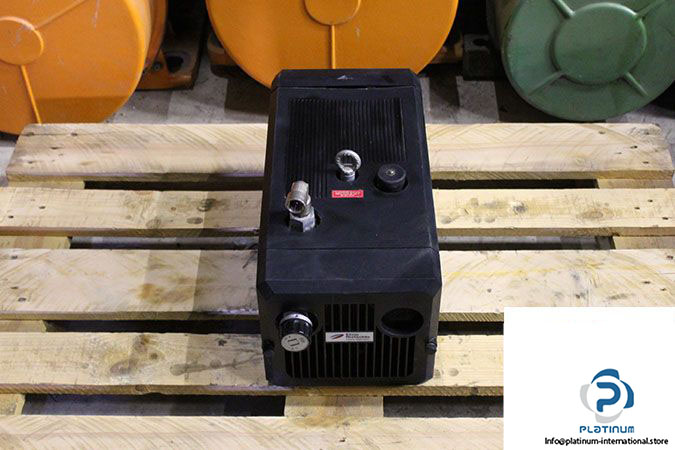

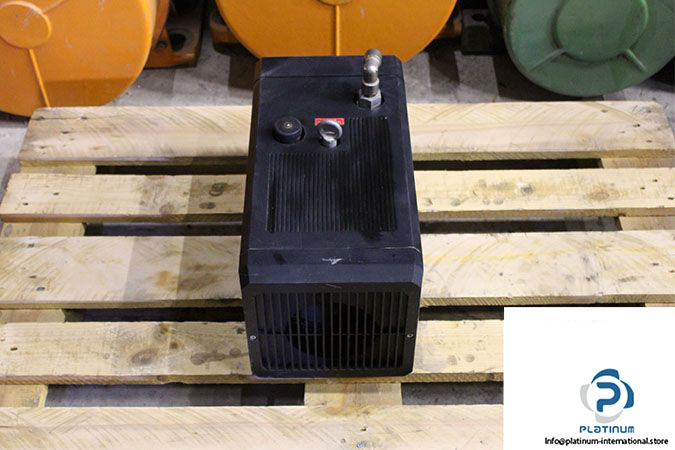

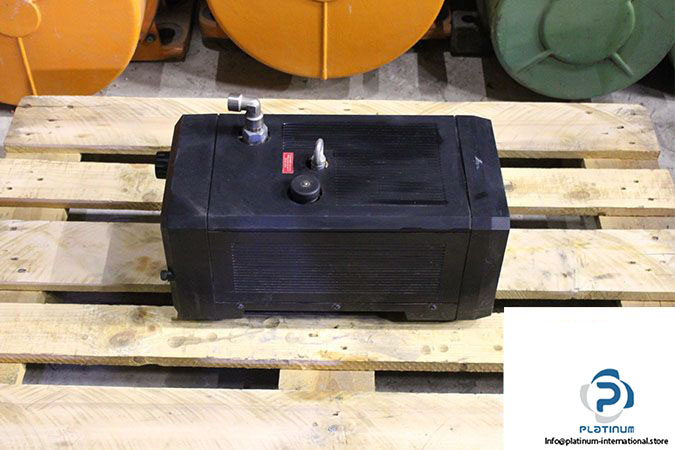

Gardner Denver VTN 25 (02) Vacuum Pump

Manufacturer: Gardner Denver

Type: Vacuum Pumps

Model: VTN25(02)

ID.: 1022190229

Pumping Capacity [m³/h]: 25.8/30.7

Final Pressure [bar]: 150/150

Rated Voltage [V]: 200-255/346-440 Delta/Star

Rated Current [A]: 3.6/2.1

Motor Speed [rpm]: 1420

Motor Output [kW]: 0.75

Power Factor: 0.70

Frequency [Hz]: 50

Rated Voltage [V]: 200-290/346-500 Delta/Star

Rated Current [A]: 4.2/2.4

Motor Speed [rpm]: 1700

Motor Output [kW]: 0.90

Power Factor: 0.75

Frequency [Hz]: 60

Duty: S1

Protection Class [IP]: 55

Insulation Class: F
