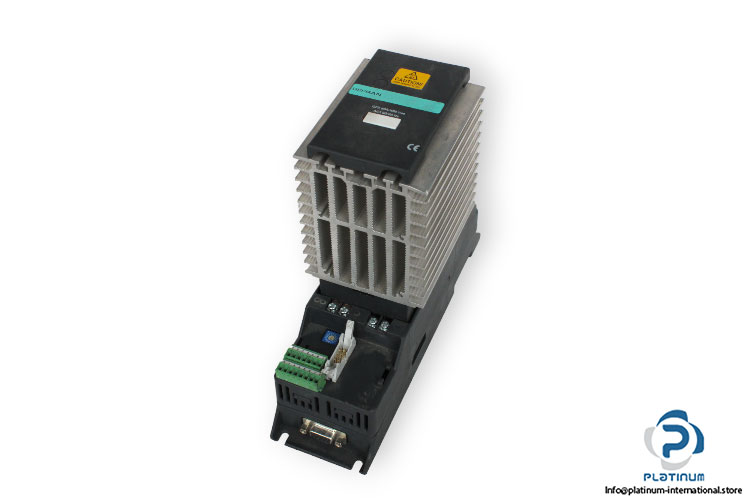

Gefran GFX-M1-60/480-M-R-RR-P-0 Modular Power Controller

Manufacturer: Gefran

Type: Modular Power Controller

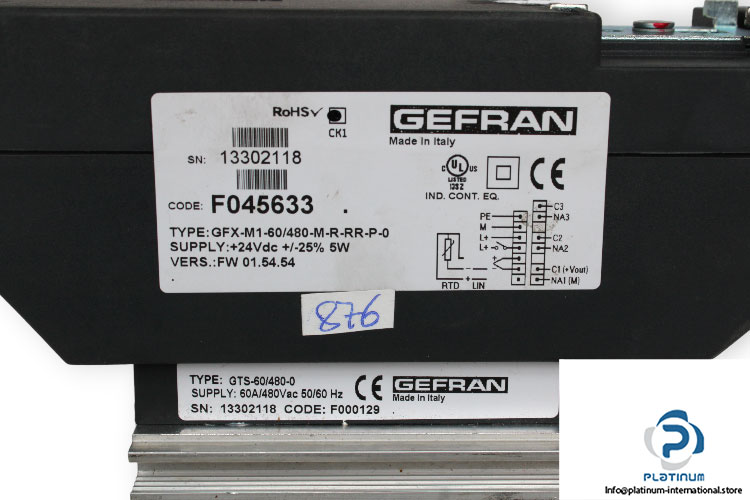

Model: GFX-M1-60/480-M-R-RR-P-0

Part No.: F045633



Supply voltage: 24 V DC ± 25%

Rated current: 60 A

Rated voltage: 480 V AC

Power: 5 W

Frequency: 50/60 Hz

field bus: PROFIBUS DP, CANopen

Serial: Optically isolated RS485 “Modbus RTU” serial protocol, optically isolated

Alarm: 4 general alarms, LBA and HB alarms

Protection degree: IP20

Working temperature: 0 … 80°C

Dimensions: 225 x 127 x 195 mm

Attachment:

GEFRAN GTS-60/480-0 POWER SOLID STATE RELAYS WITH LOGIC CONTROL

Part No.: F000129

Rated current: 60 A

Rated voltage: 480 V AC

Frequency: 50/60 Hz

Non-repetitive overcurrent t=20 ms: 1150 A

Dimensions: 44 x 112 x 142 mm
