Gefran MK1AB0150A10000 Linear Position Transducer
Used
In stock1 unitReady to ship
LINEAR POSITION TRANSDUCER
GEFRAN MK1AB0150A10000 is an absolute magnetostrictive position transducer with 150 mm stroke, 0 / 10 VDC output, IP67 protection, and 0.02% linearity for high-precision displacement measurement.0“10V24VDCAbsoluteDisplacementGefranIP67LinearMagnetostrictiveMeasurementMK1AB0150A10000OutputPositionSensorTransducer
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

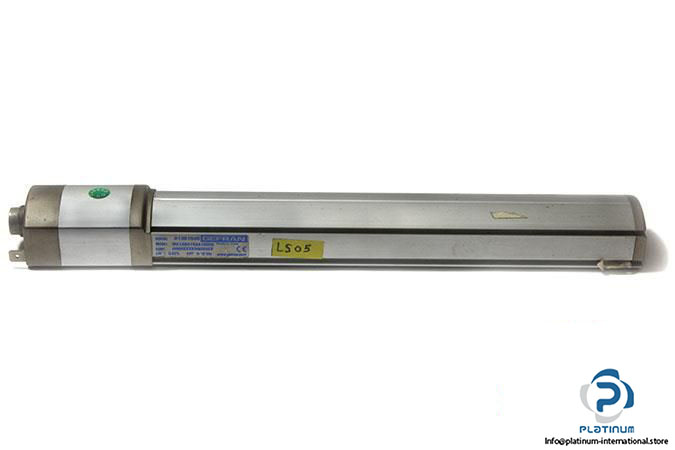

GEFRAN MK1AB0150A10000 LINEAR POSITION TRANSDUCER
The GEFRAN MK1AB0150A10000 is a high-precision magnetostrictive linear position transducer designed for accurate displacement measurement in industrial automation environments. This absolute-type sensor delivers a fast update rate and outstanding linearity in a compact and robust IP67-rated design.
Manufacturer: GEFRAN
Type: Linear Position Transducer (Magnetostriction)
Model: MK1AB0150A10000

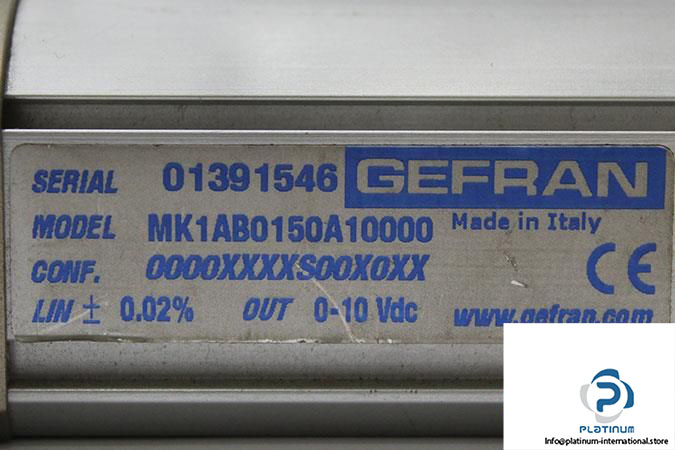

S No: 01391546
Conf No: 0000XXXXS00X0XX
| Main Characteristic | Absolute Transducer |
| Electrical Stroke | 150 mm |
| Power Supply | 24 VDC |
| Output Signal | 0 / 10 VDC |
| Linearity | 0.02% |
| Measurement Taken | Displacement |
| Type of Magnet | Sliding Cursor, Separate Floating Magnet |
| Update Time | ‰¤ 1 ms |
| Resolution | ‰¤ 0.1 mV |

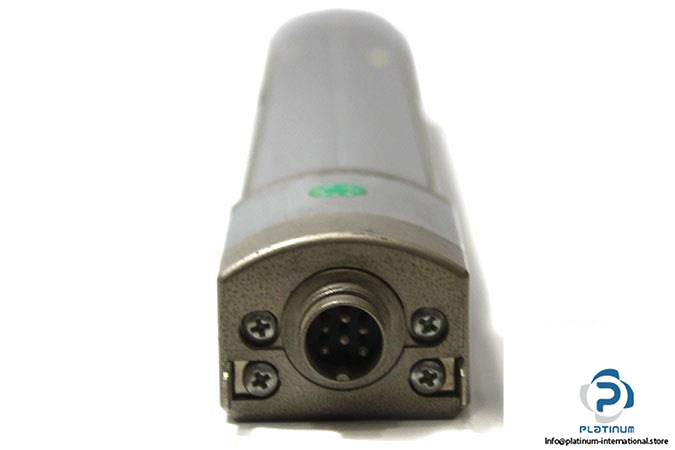

| Electrical Connection | 6-pole Output Connector (DIN 45322) |
| Protection Class | IP67 |
