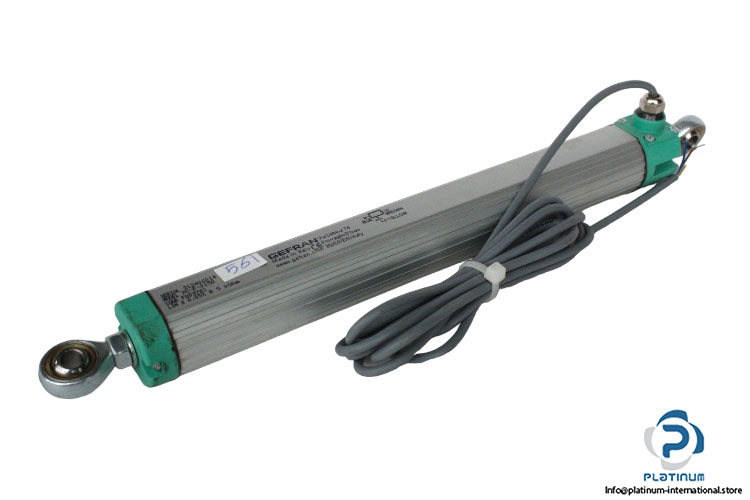

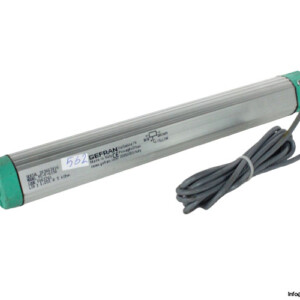

Gefran PC-F-0150 Linear Transducer
475,00$
Linear Transducer
The Gefran PCF0150 Linear Transducer offers 150 mm electrical stroke, 5 m/s displacement speed, and IP65 protection, ideal for precise linear displacement measurement in industrial applications.Gefran PCF0150 Linear Transducer
The Gefran PCF0150 Linear Transducer is a high-performance transducer designed for precise measurement of linear displacement in industrial environments. With a **150 mm electrical stroke** and a **displacement speed** of **5 m/s**, it provides reliable and accurate measurements. The **maximum applicable voltage** is **60 V**, and it features a **maximum cursor current** of **10 mA**. This transducer is equipped with a **3-pole screened cable** (1 m length) for easy electrical connections and operates efficiently within a **temperature range** of **-30 to +100 °C**. The **IP65 protection degree** ensures that the transducer remains protected against dust and water ingress, making it suitable for demanding environments.
Manufacturer: Gefran
Type: Linear Transducer
Model: PCF0150

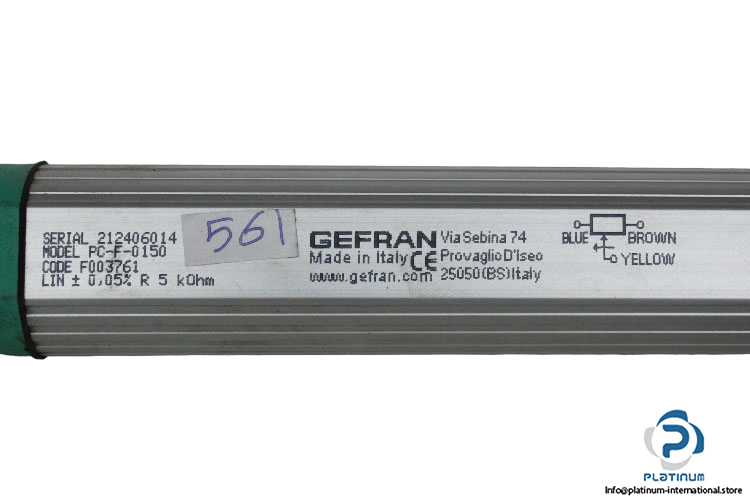

Part No.: F003761
The Gefran PCF0150 Linear Transducer offers high precision and durability, making it an ideal solution for applications that require accurate displacement measurement in harsh environments.
| Max. Applicable Voltage | 60 V |
| Maximum Cursor Current | 10 mA |
| Displacement Speed | 5 m/s |
| Displacement Force | 15 N |
| Electrical Stroke | 150 mm |
| Resistance | 5 kohm |

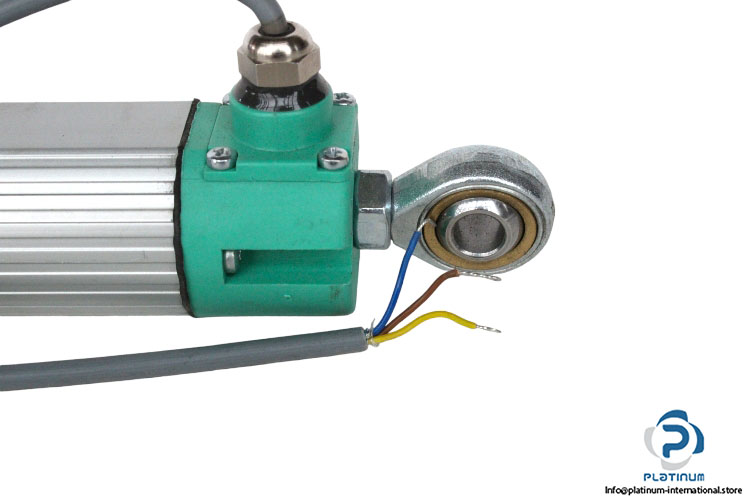

| Electrical Connections | 3-pole screened cable (1 m length) |
| Operating Temperature | -30 to +100 °C |
| Degree of Protection | IP65 |
| Case Material | Anodized aluminum, Nylon 66 G |
| Control Rod Material | Stainless steel AISI 303 |
