Gefran PC-M-0100 Rectilinear Displacement Transducer
Used
Available on request
225,00$
DISPLACEMENT TRANSDUCER
Gefran PCM0100 is a cylindrical displacement transducer offering 100 mm electrical stroke, ±0.05% linearity, and IP65 protection. Built with stainless steel and anodised aluminum for demanding industrial environments.100303AisiCylindricalDIN43650DisplacementGefranIndustrialIP65LinearmmPCM0100PositionRectilinearRODSensorStrokeTransducer
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

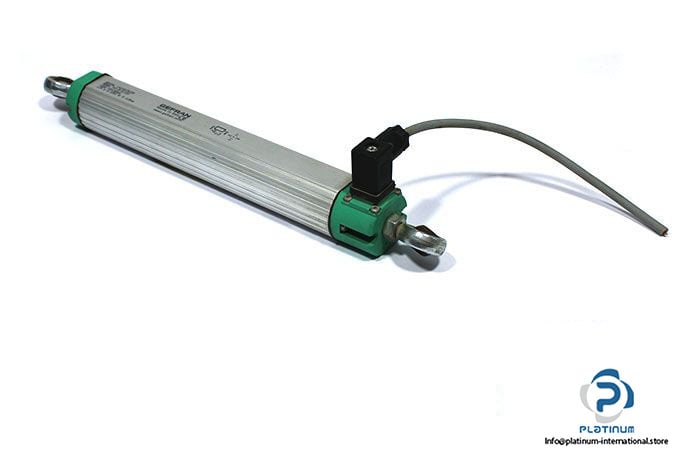

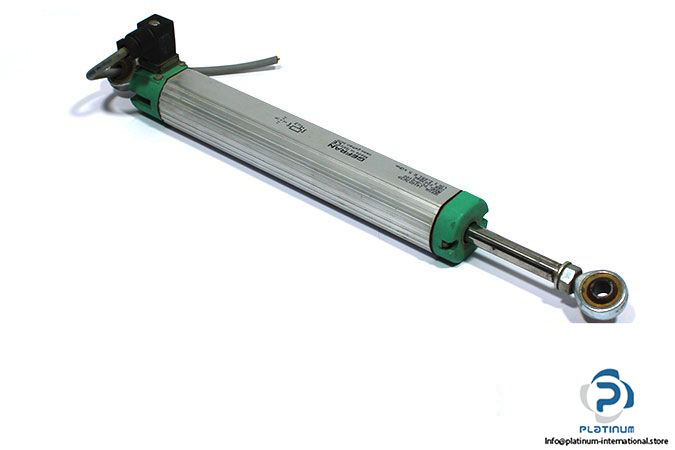

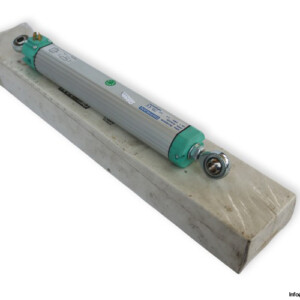

GEFRAN PCM0100 RECTILINEAR DISPLACEMENT TRANSDUCER
The Gefran PCM0100 is a high-precision rectilinear displacement transducer with a cylindrical case, engineered for accurate position sensing in industrial automation and control systems. Featuring high linearity and a rugged design, it ensures reliability in harsh environments.
Manufacturer: Gefran
Type: Rectilinear Displacement Transducer with Cylindrical Case
Model: PCM0100

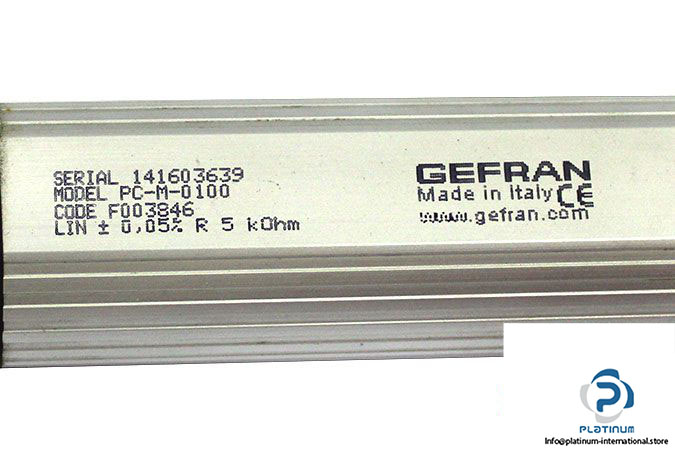

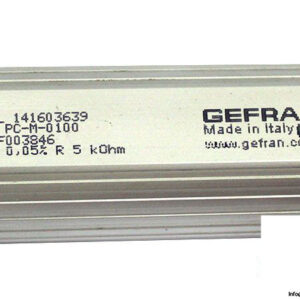

Code No.: F003846
S No.: 141603639
| Electrical Stroke | 100 mm |

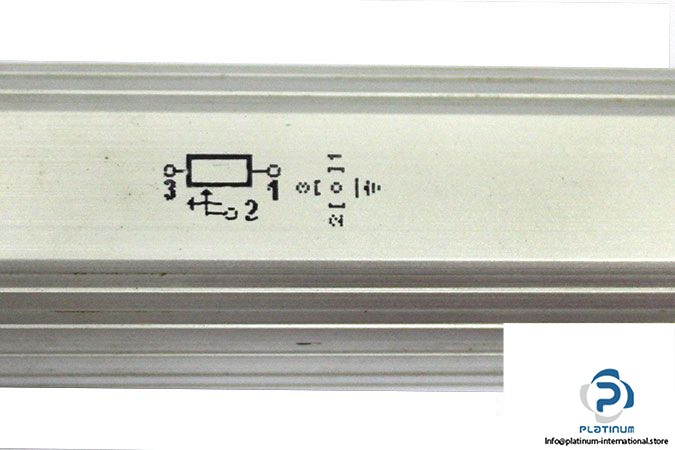

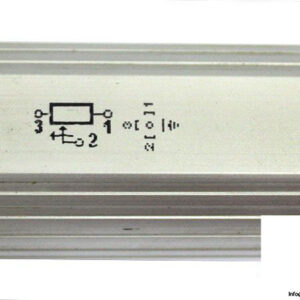

| Electrical Connection | 4-Pole Connector Output DIN43650 ISO4400 |
| Diameter Rod | 10 mm |
| Maximum Cursor Current | 10 mA |
| Maximum Applicable Voltage | 60 V |
| Resistance | 5 kΩ |
| Independent Linearity | ± 0.05% |
| Resolution | Infinite |
| Case Material | Anodised Aluminum Nylon 66 G |
| Control Rod Material | Stainless Steel AISI 303 |
| Fixing | 2 Self-Loading and Self-Aligning Ball-Joints |
| Protection Class | IP65 |
| Working Temperature | -30 / +100°C |
