Peek Round BAR 100 MM

In stockReady to ship

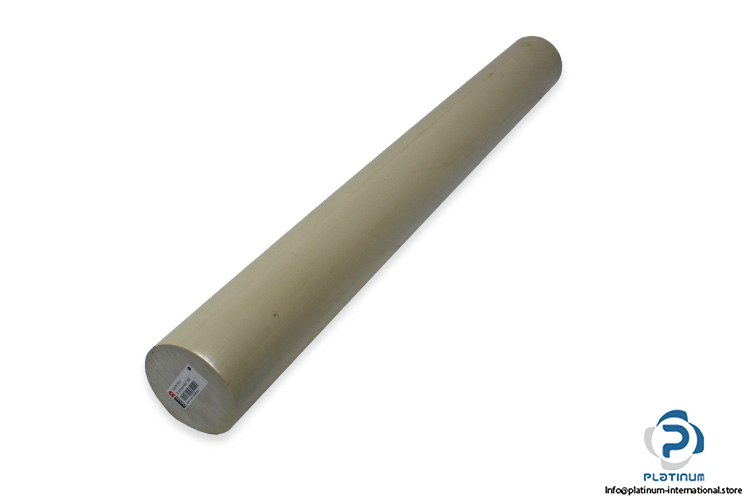

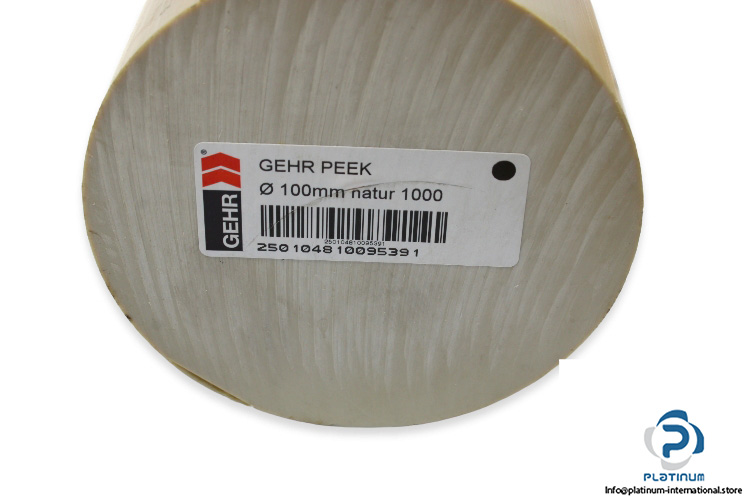

PEEK ROUND ROD

PEEK Round Rod, 100 mm diameter and 720 mm length, offering high tensile strength, thermal stability up to 260 °C, and exceptional chemical resistance for advanced engineering uses.

Manufacturer
---
SKU
999112
Category
Others
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

PEEK ROUND ROD

This PEEK (Polyether Ether Ketone) Round Rod offers exceptional mechanical, thermal, and chemical resistance properties, making it suitable for demanding engineering applications. With a high tensile strength, excellent dimensional stability, and outstanding resistance to extreme temperatures, it is ideal for use in aerospace, automotive, and industrial environments.

Type: Peek Round Rod

Physical Properties

Mechanical Properties

Thermal Properties

Outer Diameter (D)100 mm
Length720 mm
ColorNatural
MaterialPolyether Ether Ketone (PEEK)
Specific Gravity1.31 g/cm³
Max. Service Temperature260 °C / 500 °F
Min. Service Temperature-40 °C / -40 °F
Water Absorption (Saturation)0.4 %
Humidity Absorption (Saturation)0.07 %
Tensile Strength at Yield13,900 psi
Tensile Strength at Break26,800 psi
Tensile Modulus522,000 psi
Elongation at Break45%
Rockwell HardnessR-Scale
Flexural Strength22,000 psi
Flexural Modulus566,000 psi
Heat Deflection Temperature HDT/A (264 psi)162.2 °C / 324 °F
Glass Transition Temperature150 °C / 302 °F
Melting Temperature340 °C / 644 °F
