Gems 3100B0025G01B00RS Pressure Sensor
PRESSURE SENSOR
GEMS 3100B0025G01B00RS Pressure Sensor offers precise analogue output and rugged performance for air, oil, and hydraulic pressure monitoring. Built with 17-4 PH stainless steel and rated IP66/IP67 for demanding industrial use.GEMS 3100B0025G01B00RS PRESSURE SENSOR

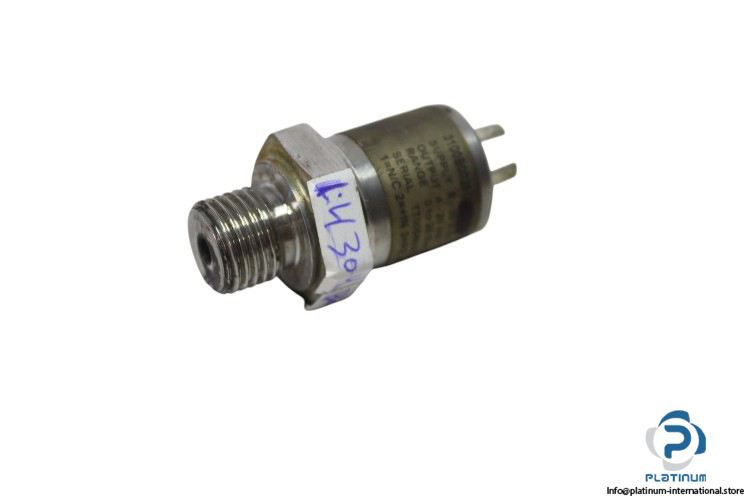

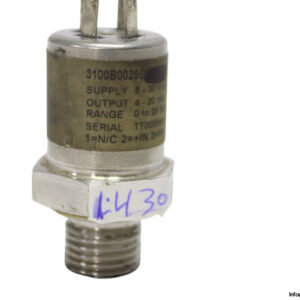

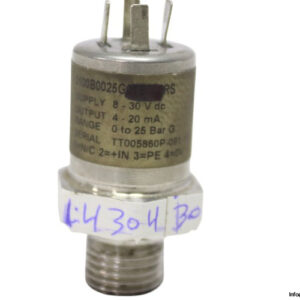

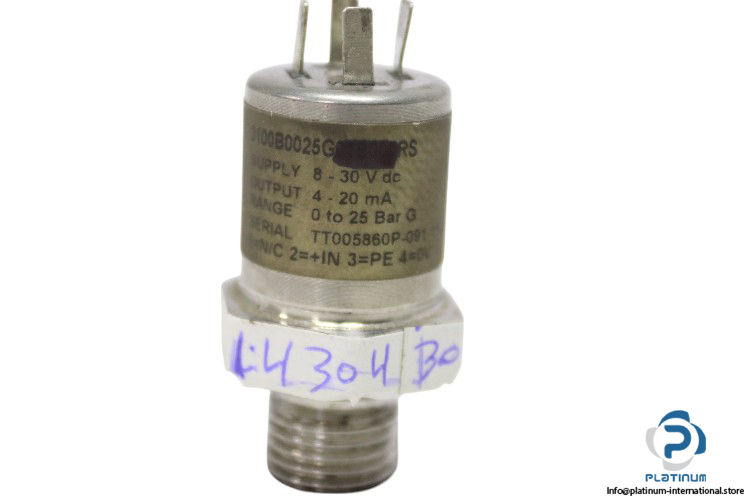

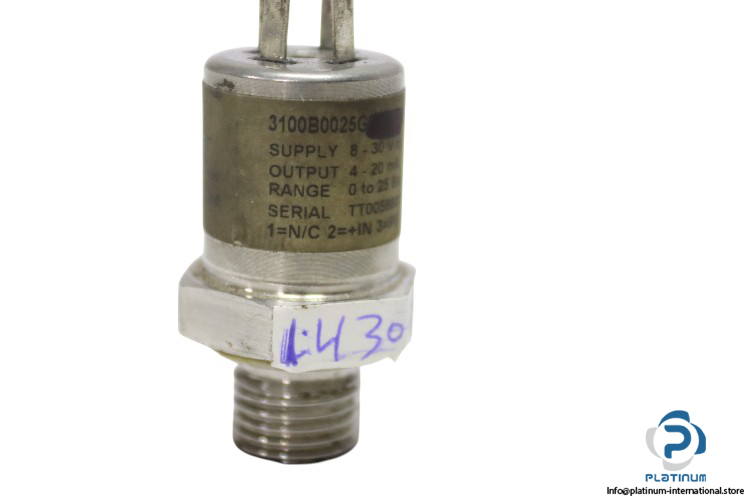

The GEMS 3100B0025G01B00RS Pressure Sensor is a high-performance sensor designed for precise pressure measurement in industrial environments. Engineered with durable stainless steel construction and IP66/IP67 protection, it delivers reliable analog output for air, hydraulic oil, and oil applications under extreme temperature and pressure conditions.
Manufacturer: GEMS
Type: Pressure Sensor
Model: 3100B0025G01B00RS
Pressure Measuring Range: 0 / 25 bar
Medium: Air, Hydraulic Oil, Oil
Output Type: Analogue
Operating Voltage Range: 8 / 30 V DC
Current Max.: 2 A
Process Connection: G1/4
Electrical Connection: 9.4 mm DIN Connector
Material: 17-4 PH Stainless Steel (Wetted Part)
Protection Class: IP66/IP67
Medium / Ambient Temperature: -40 / 125 °C
