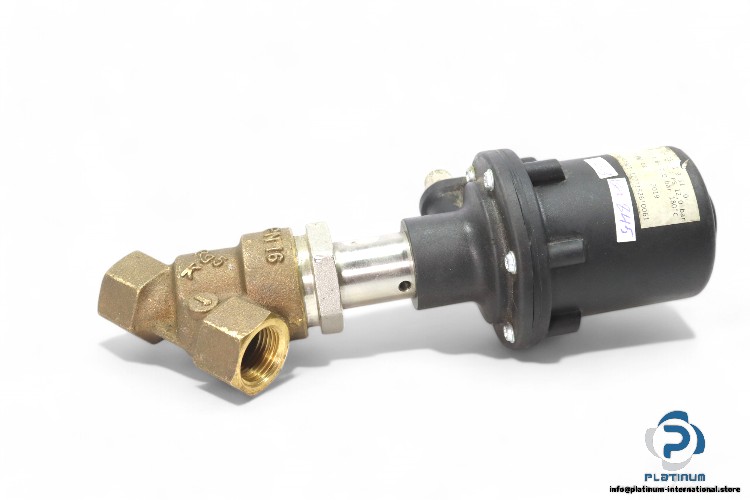

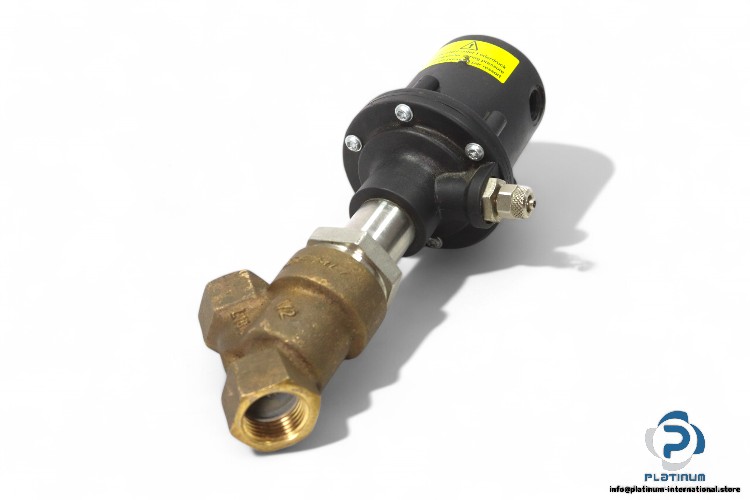

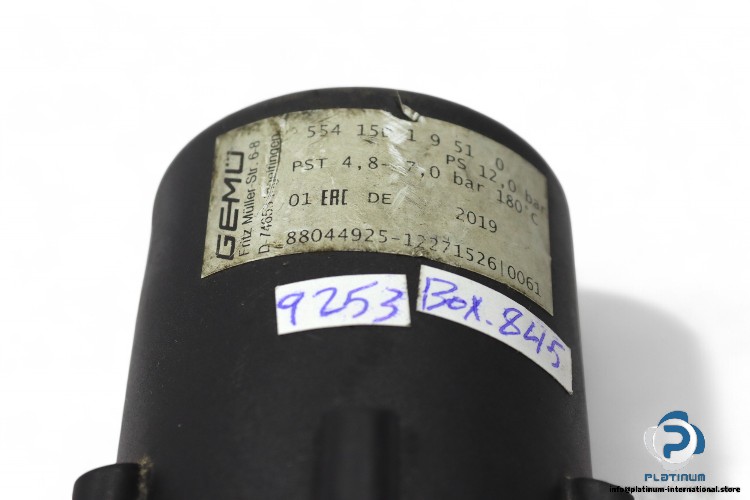

Gemu 554 15D 1 9 51 0 Angle Seat Globe Valve
GEMU Angle Seat Globe Valve 554 15D 1 9 51 0 “ Robust cast bronze valve with PTFE seat seal, 10 bar max pressure, and G ½ port size. Designed for inert gas and medium temperature applications.
GEMU Angle Seat Globe Valve 55415D19510
Manufacturer: GEMU
Type: Angle Seat Globe Valve
Model: 554 15D 1 9 51 0
Part No.: 88044925
The GEMU Angle Seat Globe Valve 554 15D 1 9 51 0 is a high-performance valve engineered for precise fluid control in industrial applications. Featuring a robust cast bronze valve body, this valve is designed to handle inert gases and various mediums with superior efficiency and durability. Its PTFE seat seal ensures reliable operation and resistance to wear over time.
Technical Specifications:
- Body Configuration: 2/2-Way Body
- Operating Pressure Max.: 10 bar
- Control Pressure: 4.8 to 7.0 bar
- Actuator Size: 0
- Fluid: Inert Gas
- Nominal Size: 15
- Seat Seal: PTFE
- Control Function: Normally Closed (NC)
- Temperature Max.: 60 °C
- Connection Type: Threaded Socket DIN ISO 228
- Valve Body Material: Cast Bronze
- Medium Temperature: -10 to 180 °C
- Port Size: G ½
This valve is designed for reliability and versatility, making it suitable for a wide range of applications that require efficient fluid control, particularly in systems using inert gases. Its compact design and high-quality materials ensure longevity and minimal maintenance.
