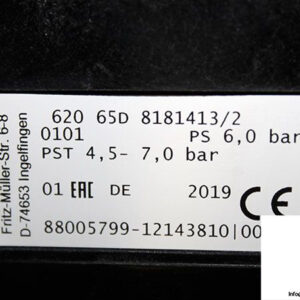

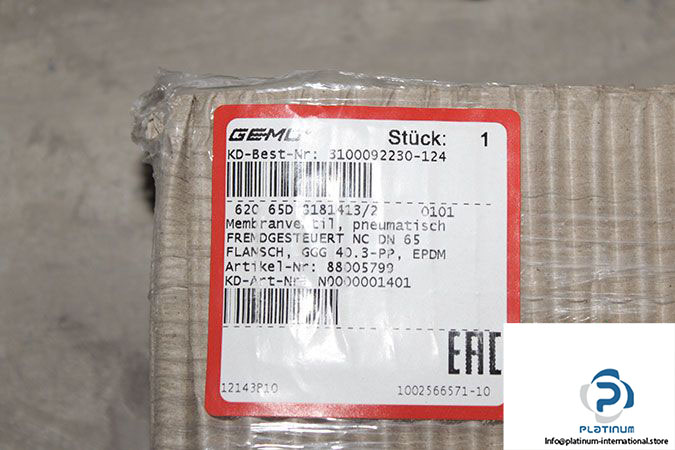

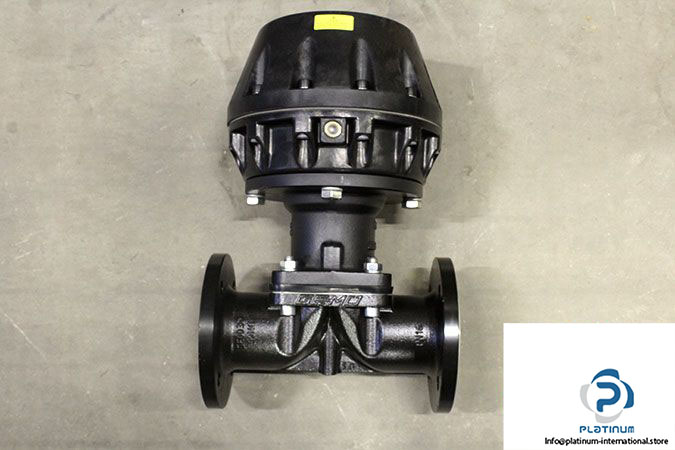

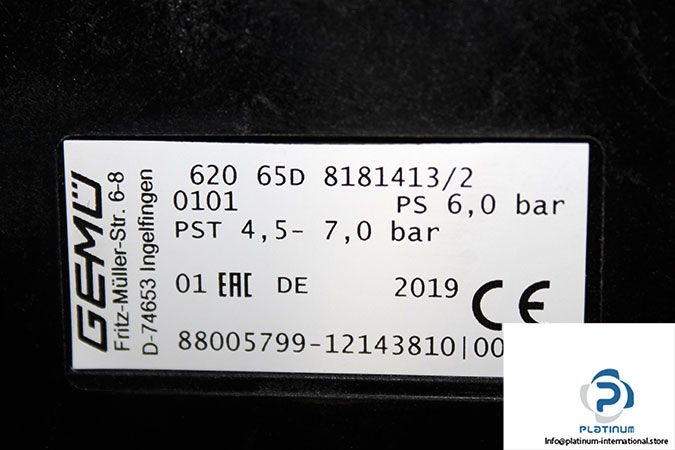

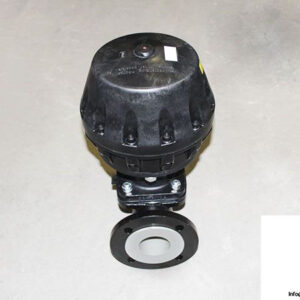

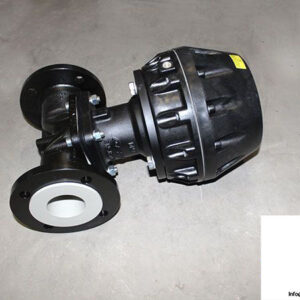

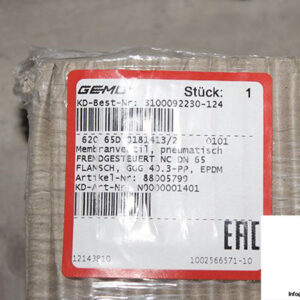

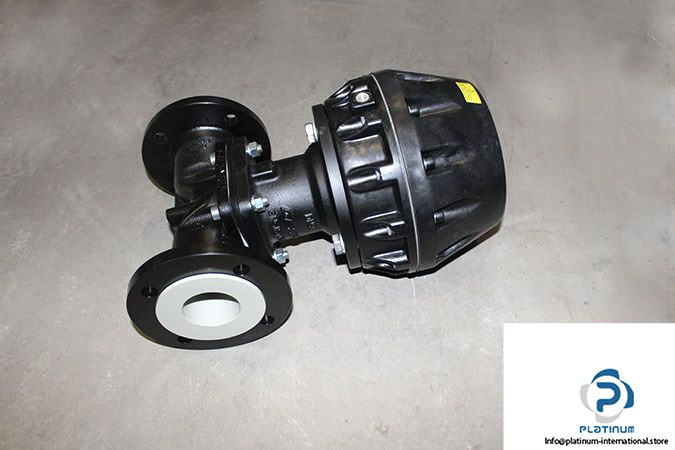

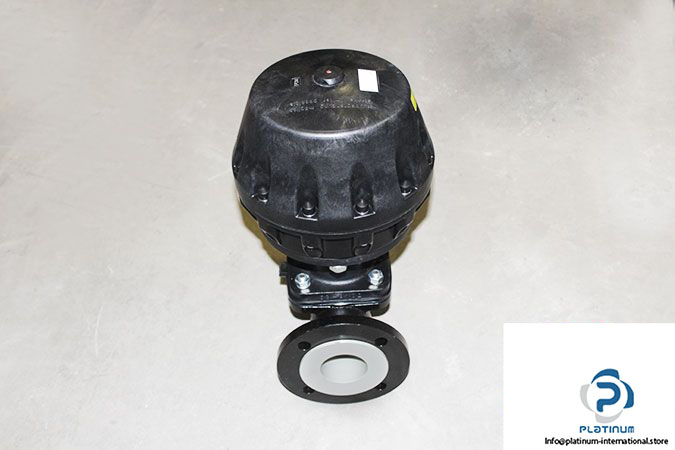

Gemu 620 65D 8181413/2 Diaphragm Valve

Manufacturer: GEMU ‎

Type: Diaphragm valve

Art No.: 88005799

Order Code: 62065D8181413/2

Diaphragm valve, pneumatically operated, membrane actuator, cast iron distance piece

Working medium: Corrosive, inert, gaseous and liquid media which have no negative impact on

the physical and chemical properties of the body and diaphragm material

Size: DN65

Operation: 2/2-way body

Control Function: Normally closed (NC)

Flange: Flange EN 1092, PN 16

Valve body material: EN-GJS-400-18-LT (GGG 40.3), PP lined

Diaphragm Material: FPM

Actuator version: Actuator size 3/2

Operating Pressure: 6 bar

Media temperature: -10 — 90 °C

Weight: 25.8 kg
