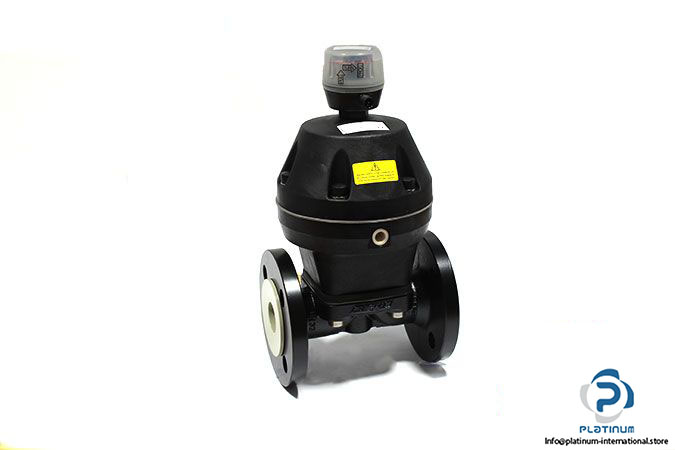

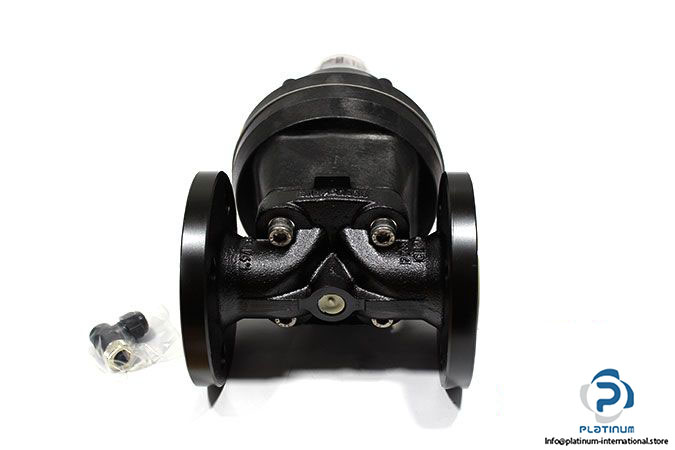

Gemu 695 32D 818 412/N Pneumatic Operated Diaphragm ‎Valve

Manufacturer: Gemu

Type: Diaphragm valve with pneumatic control

Model: ‎695 32D 818 412/N

Part No.: 88025812

Uses: Corrosive, inert, gaseous and liquid media which have no negative impact on the physical and chemical properties of the body and diaphragm material.

Nominal Size: DN 32

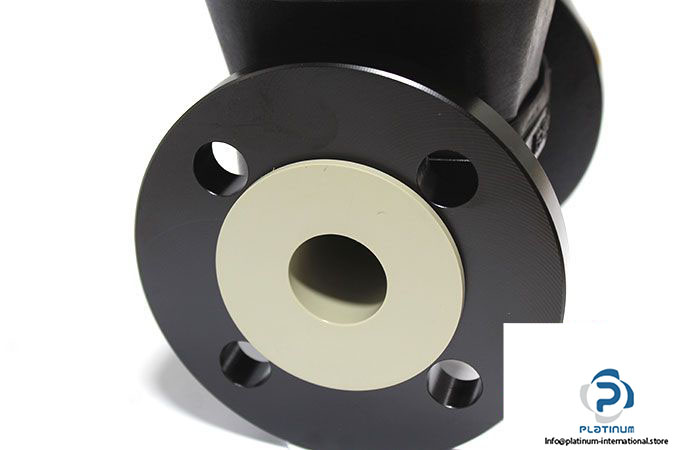

Connection Type: Flange

Operating pressure: max. 10 bar

Media temperature: -10 … 80 °C

Operation: 2/2-way body

Valve Body Material: EN-GJL-250, (GG 25) (Cast iron)



Attachments:

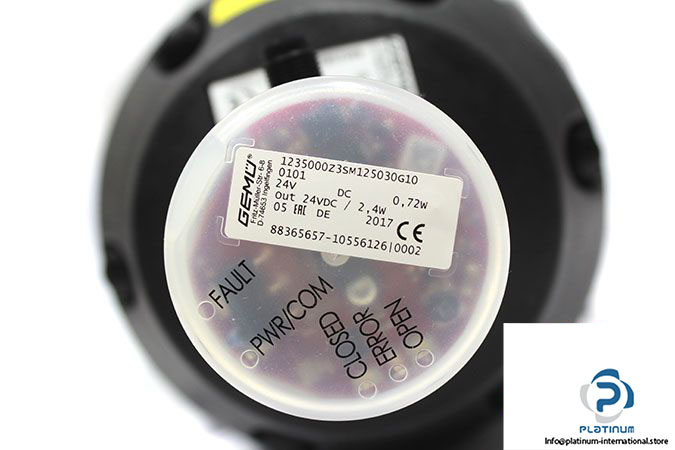

 – GEMU 1235000Z3SM125030G10 0101 Electrical position indicator

Manufacturer: Gemu

Type: Electrical position indicator

Model: 1235000Z3SM125030G10 0101

Part No.: 88365657

The GEMÜ 1235 electrical position indicator is suitable for mounting to pneumatically operated linear actuators.

Device Version: Open / Closed position feedback, high visibility optical position indicator

Electrical Connection: M12 PLUG, 5

Travel sensor: Potentiometer, 30 mm length

– GEMU 1235S01Z201103000 0101 Mounting kit for type 1235

Part No.: 88214664

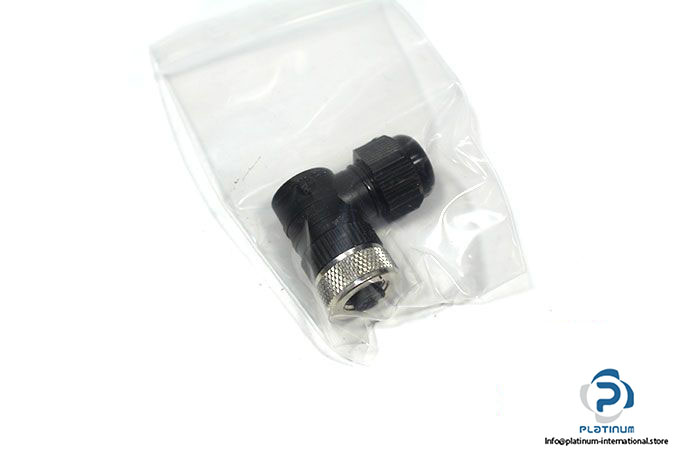

– GEMU 1219000Z0000DW00M0M125A0101 Cable socket, 90° angle

Part No.: 88251495

Gross Weight: 8.6 kg
