General Electric 105 DTL 500 Flashing Device

In stock1 unitReady to ship

FLASHING DEVICE

General Electric™s 105 DTL 500 flashing device offers reliable industrial signaling with wide voltage support, safe connections, and robust protection against surges.

Manufacturer
GENERAL ELECTRIC
SKU
1077743
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

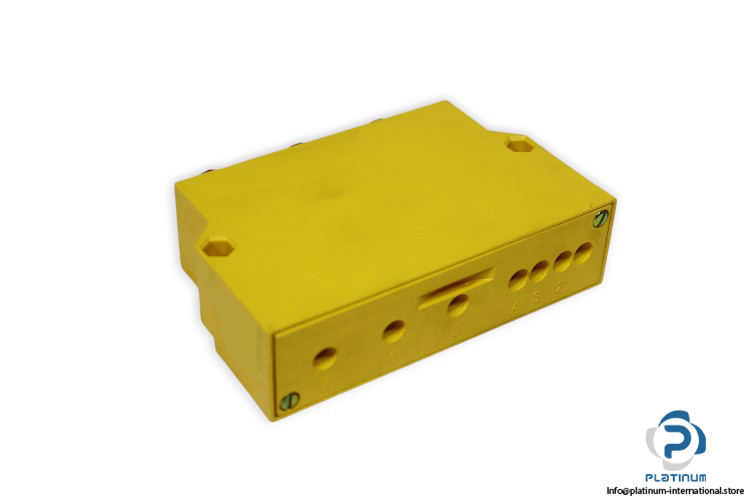

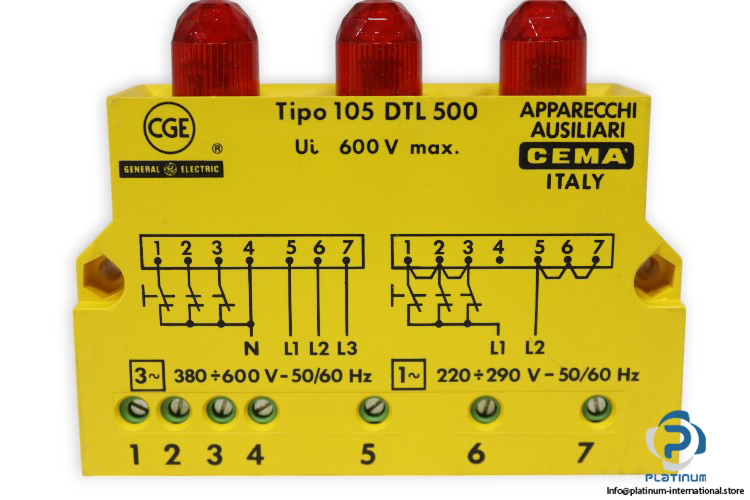

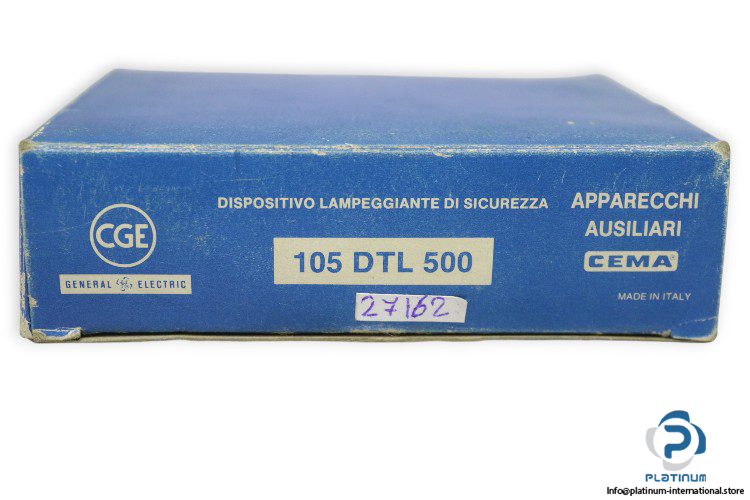

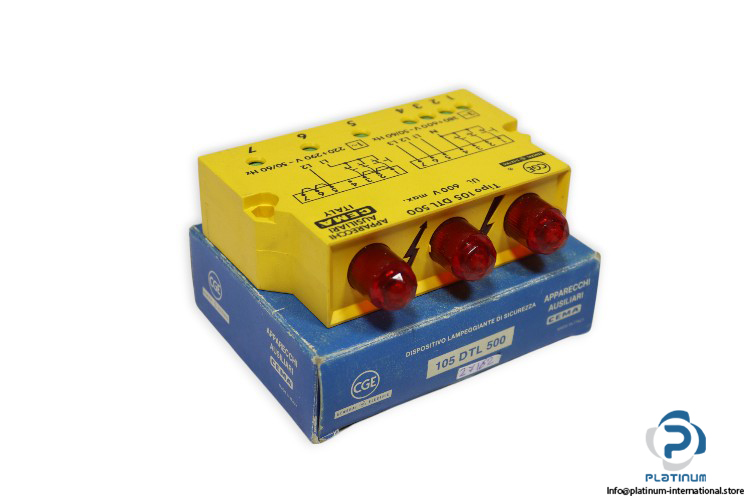

GENERAL ELECTRIC 105 DTL 500 FLASHING DEVICE

The General Electric 105 DTL 500 is a robust flashing device engineered for reliable signaling in industrial environments. Designed to operate on both single-phase and three-phase AC supplies, it offers high durability, wide voltage compatibility, and strong protection against electrical surges. Its compact dimensions and safe connection system make it ideal for a range of control and automation applications.

Manufacturer: GENERAL ELECTRIC

Type: Flashing Device

Model: 105 DTL 500

Supply Voltage380 / 600 V AC/3-phase, 220 / 290 V AC/1-phase
Frequency50/60 Hz
Rated Insulation Voltage660 V max
Impulse Withstand Voltage4 kV
Electrical Input Current2 mA max
ConnectionsTerminal strip with numbered terminals, accessible from outside, protected against accidental contacts according to DIN 57106 and IP 20 according to IEC 529
Clamping CapacityMaximum one flexible conductor 12 AWG
Operating Temperature Range-25 / +70°C
Degree of ProtectionIP 20
Dimensions110 x 87 x 30 mm

You May Also Need

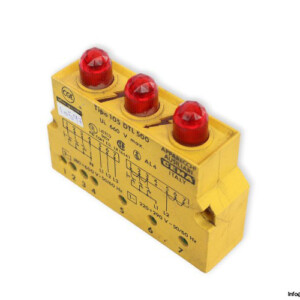

General Electric 105 DTL 500 Power Supply Signaling Device
