General Electric 105DTL500 Flashing Device
Flashing Device and Limit Switch

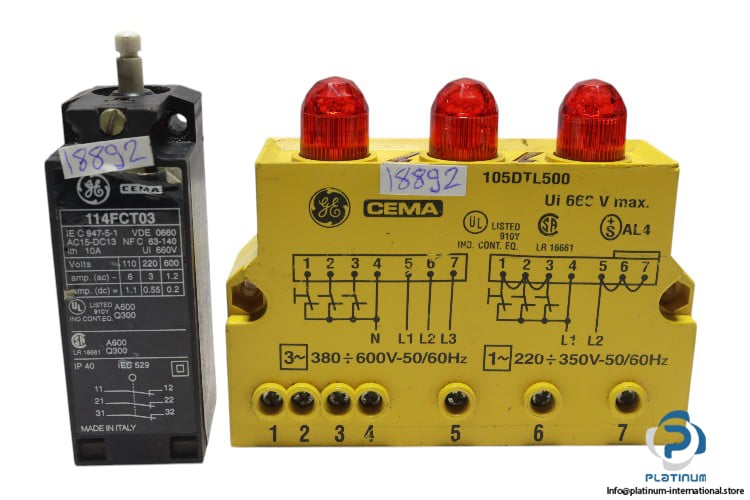

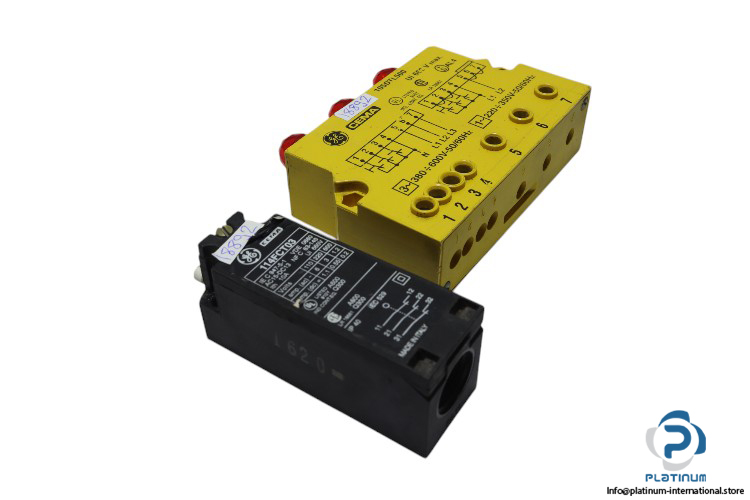

The General Electric (GE) 105DTL500 Flashing Device offers a 240 V AC power supply, 690 V insulation voltage, and IP20 protection, while the 114FCT03 Limit Switch features 3 NC contacts, 660 V insulation voltage, and 10 A thermal current, ideal for industrial control applications.General Electric (GE) 105DTL500 Flashing Device
The **General Electric (GE) 105DTL500 Flashing Device** is designed for reliable performance in various industrial environments. It offers a **three-phase 380 to 600 V AC** and **single-phase 220 to 350 V AC** power supply, with an **insulation voltage** of **690 V max.** The device has a **current input** of **2 mA max.** and features a **terminal strip** for easy connections. With a temperature range of **-25 to 70°C** and an **IP 20 degree of protection**, this device is built for durability and reliability in industrial applications.
Manufacturer: General Electric (GE)
Type: Flashing Device
Model: 105DTL500
Family: CEMA
GENERAL ELECTRIC 114FCT03 Limit Switch
The **General Electric (GE) 114FCT03 Limit Switch** is designed for device control with **3 NC contacts** and an **insulation voltage** of **660 V**. It supports a range of **operational currents**, including **6 A at 110 V AC**, **3 A at 220 V AC**, and more. Built with a **thermal current** of **10 A**, it is a reliable choice for controlling devices in various applications.
Technical Information
Both devices are built to offer reliable and durable performance in industrial settings, with high protection and a wide operating temperature range, ensuring they meet demanding requirements for control and signaling applications.
| Power Supply | Three-phase 380 to 600 V AC, 50/60 Hz, Single-phase 220 to 350 V AC, 50/60 Hz |
| Insulation Voltage (Ui) | 690 V max. |
| Electrical Input Current | 2 mA max. |
| Connections | Terminal strip with numbered terminals, accessible from outside |
| Operation Temperature | -25 to 70°C |
| Degree of Protection | IP 20 |
| Dimensions | 87 x 30 x 110 mm |
| Family | CEMA |
| Contact Type | 3 NC |
| Insulation Voltage (Ui) | 660 V |
| Thermal Current (Ith) | 10 A |
| Operational Current | 6 A at 110 V AC, 3 A at 220 V AC, 1.2 A at 600 V AC, 1.1 A at 110 V DC, 0.55 A at 220 V DC, 0.2 A at 600 V DC |
