Georgii Kobold KSY 46420-2 MS-R6 Brushless Servomotor
BRUSHLESS SERVOMOTOR
Georgii Kobold KSY 464.20-2 MS-R6 is a brushless servomotor with 2.1 Nm torque, 210 V input, 2000 rpm speed, and IP65 protection. Includes MS 4 brake system for enhanced control and stability.GEORGII KOBOLD KSY 464.20-2 MS-R6 BRUSHLESS SERVOMOTOR
The Georgii Kobold KSY 464.20-2 MS-R6 is a high-efficiency brushless servomotor built for precision and industrial-grade performance. With IP65 protection, integrated brake system, and optimized for dynamic applications, this motor provides stable output and durability in rigorous automation environments.

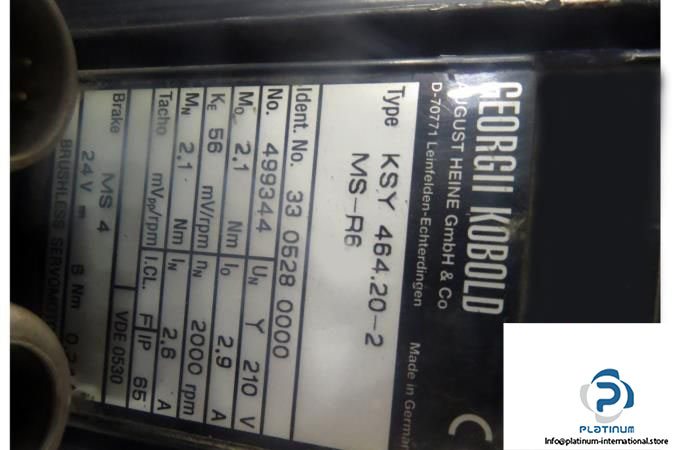

Manufacturer: Georgii Kobold
Type: Brushless Servomotor
Model: KSY 464.20-2 MS-R6
Part No.: 33 0528 0000
Ref No.: 499344
Motor Specifications
- Frame Size: 4
- Number of Poles: 6
- Voltage: 210 V
- Stall / Rated Torque: 2.1 Nm
- Stall Current: 2.9 A
- Rated Current: 2.6 A
- Speed: 2000 rpm
- Voltage Constant: 56 mV/rpm
- Protection Class: IP65
Brake Specifications
- Model: MS 4
- Voltage: 24 V
- Torque: 8 Nm
- Rated Current: 0.2 A
