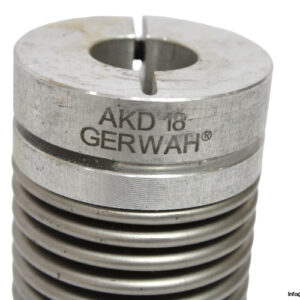

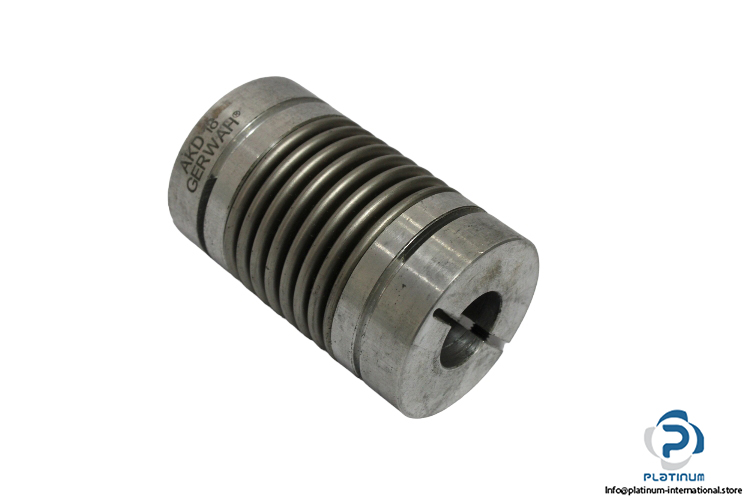

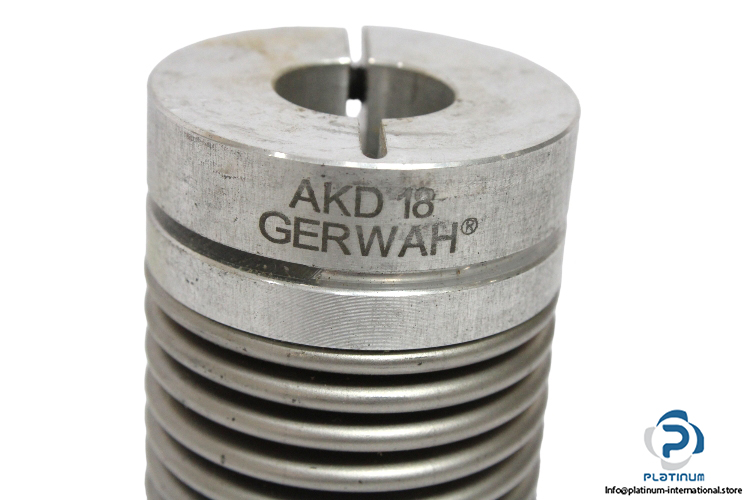

Manufacturer: GERWAH
Type: Bellows Coupling
Model: AKD18-19-19
Art No.: N/A
MNR.: N/A
Size: 18
Material: Aluminum
Bore diameter d1/ d2: 19 mm/ 19 mm
Outer diameter: 45 mm
Total length: 71 mm
Torque: 22 Nm
Torsional stiffness: 6000 Nm/rad
Radial spring stiffness: 85 N/mm
Axial spring stiffness: 40 N/mm
Shaft Fastening Method: Clamping hubs
| Price | On Request |
| Stock | Available on request |
| Category | Couplings |
| Condition | Used |
| SKU | 1002390 |
| Weight | 0,15 kg |
| Condition | Used |
| Part No. | N/A |
| Shelf No. | 230308 |
| Size | 18 |
| Material | Aluminum |
| Bore Diameter d1/d2 [mm] | 19 / 19 |
| Outer Diameter [mm] | 45 |
| Total length | 71 mm |
| Torque [Nm] | 22 |
| Torsional Stiffness [Nm/rad] | 6000 |
| Radial Spring Stiffness [N/mm] | 85 |
| Axial Spring Stiffness [N/mm] | 40 |
| Shaft Fastening Method | Clamping Hubs |
| Length [mm] | 71 |
