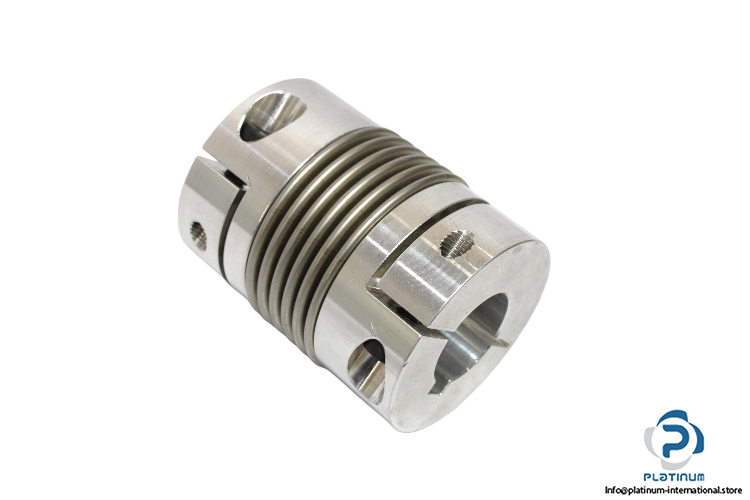

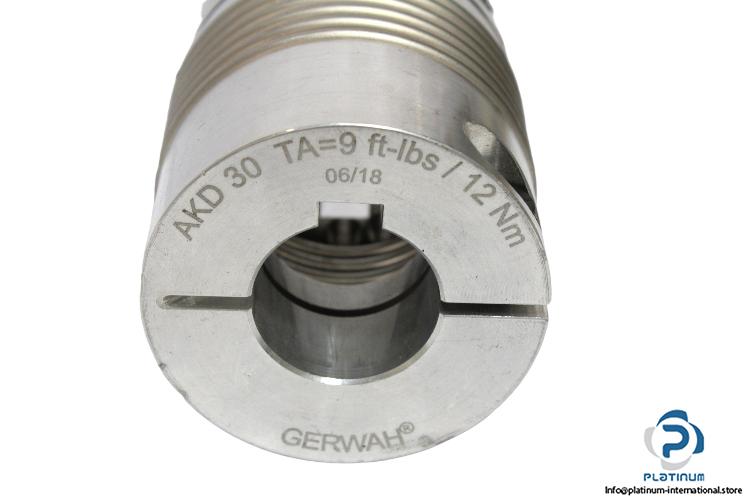

Name: GERWAH AKD30-25-25 BELLOWS COUPLING
SKU: 1002396
Price: 75.00 USD
Availability: LimitedAvailability

Manufacturer: GERWAH

Type: Bellows Coupling

Model: AKD30-25-25

Art No.: N/A

MNR.: N/A

Size: 30

Material: Aluminum

Bore diameter d1/ d2: 25 mm/ 25 mm

Outer diameter: 55 mm

Total length: 73 mm

Torque: 36 Nm

Torsional stiffness: 25000 Nm/rad

Radial spring stiffness: 220 N/mm

Axial spring stiffness: 30 N/mm

Shaft Fastening Method: Clamping hubs with keyway

Specification	Value
Weight	0,27 kg
Condition	New
Part No.	N/A
Shelf No.	230308
Size	30
Material	Aluminum
Bore Diameter d1/d2 [mm]	25 / 25
Outer Diameter [mm]	55
Torque [Nm]	36
Torsional Stiffness [Nm/rad]	25000
Radial Spring Stiffness [N/mm]	220
Axial Spring Stiffness [N/mm]	30
Shaft Fastening Method	Clamping Hubs with Keyway

Price	75,00$
Stock	Available on request
Category	Couplings
Condition	New
SKU	1002396

Weight	0,27 kg
Condition	New
Part No.	N/A
Shelf No.	230308
Size	30
Material	Aluminum
Bore Diameter d1/d2 [mm]	25 / 25
Outer Diameter [mm]	55
Torque [Nm]	36
Torsional Stiffness [Nm/rad]	25000
Radial Spring Stiffness [N/mm]	220
Axial Spring Stiffness [N/mm]	30
Shaft Fastening Method	Clamping Hubs with Keyway

Gerwah AKD30-25-25 Bellows Coupling
