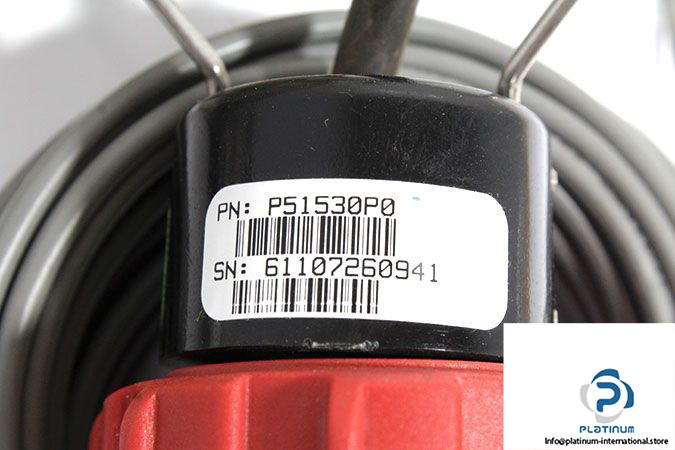

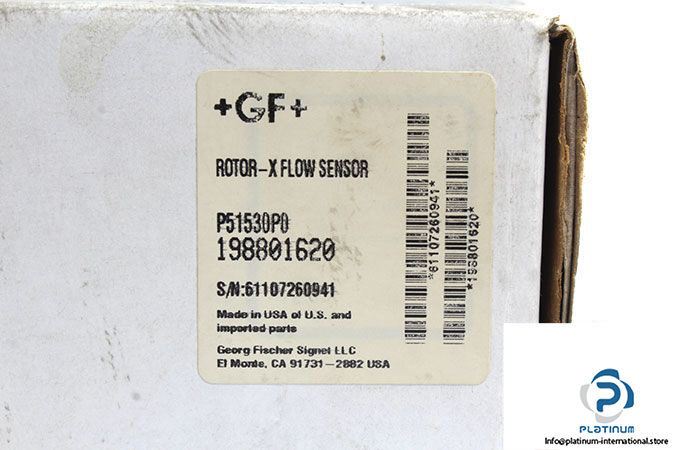

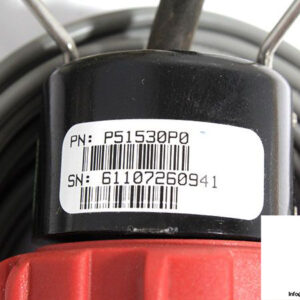

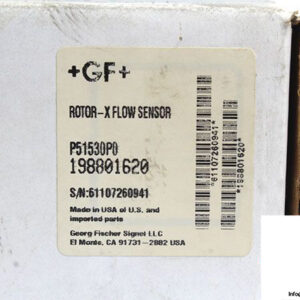

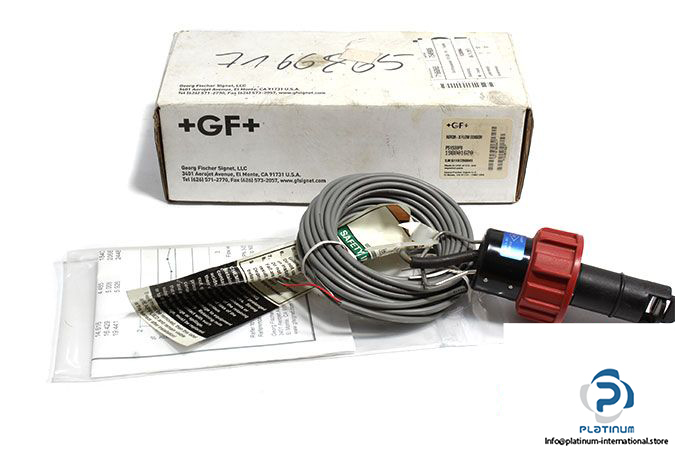

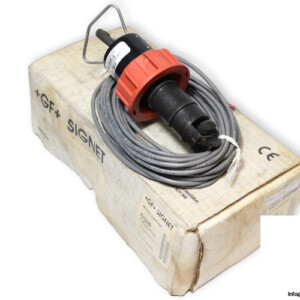

GF Signet P51530-P0 Paddlewheel Flow Sensor

Manufacturer: +GF+ ‎

Type: Flow Sensor

Part No.: P51530-P0

Code: 198 801 620‎

Supply voltage: 5 … 24 V DC

Current: <20 mA @ 6 to 24 VDC

Pressure/Temperature Rating: 1.7 bar max @ 90 °C ,

12.5 bar max @ 20 °C

Operating temp.: -18 °C to 66 °C

Flow Rate Range: 0.3 … 6 m/s

Cable length: 7.6 m standard, max. 60 m

Cable type: 2-conductor twisted pair w/ shield (22 AWG)

Pipe Size: 0.5 … 4 inch

Body: Polypropylene

Rotor/Pin: Black PVDF/Titanium

Weight: 0.44 kg
