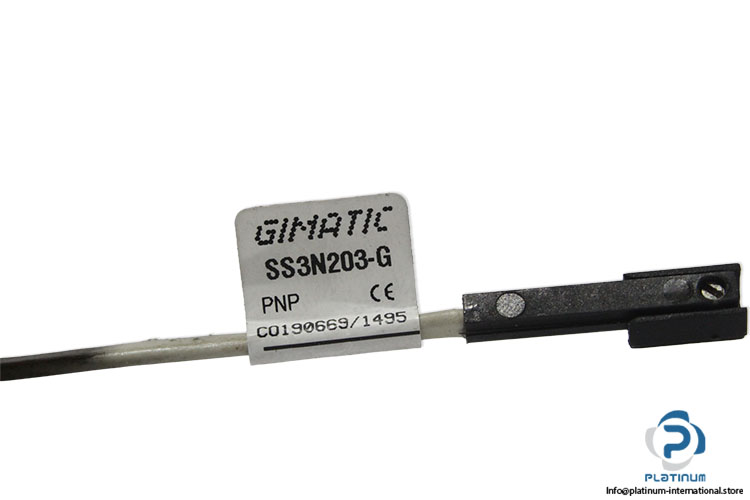

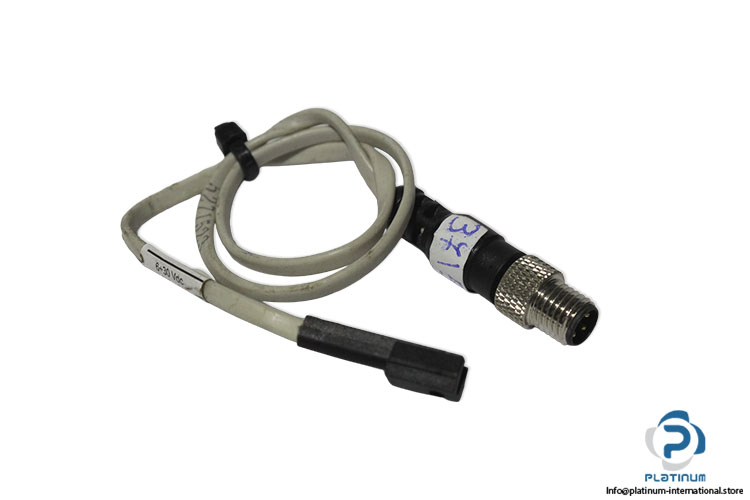

Gimatic SS3N203-G Magnetic Sensor
New
In stock6 unitsReady to ship
Magnetic Sensor The Gimatic SS3N203-G magnetic sensor is designed for industrial automation and position detection applications. Featuring a PNP normally open output, 6 to 30 Vdc operating voltage, IP67 protection, and fast response times, it delivers reliable sensing performance in demanding industrial environments.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Code | CO190669 |

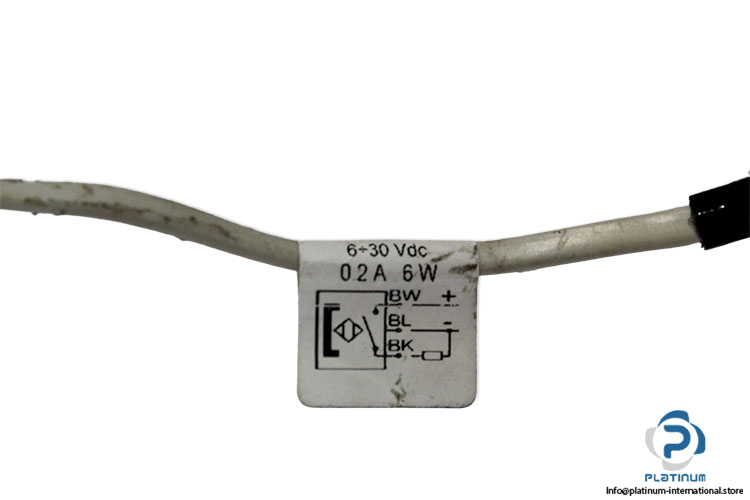

| Operating Voltage | 6 to 30 Vdc |
| Current | 0,2 A |
| Power rating | 6 W |
| Operating frequency | 200 KHz |
| Output type | PNP, NO contact |

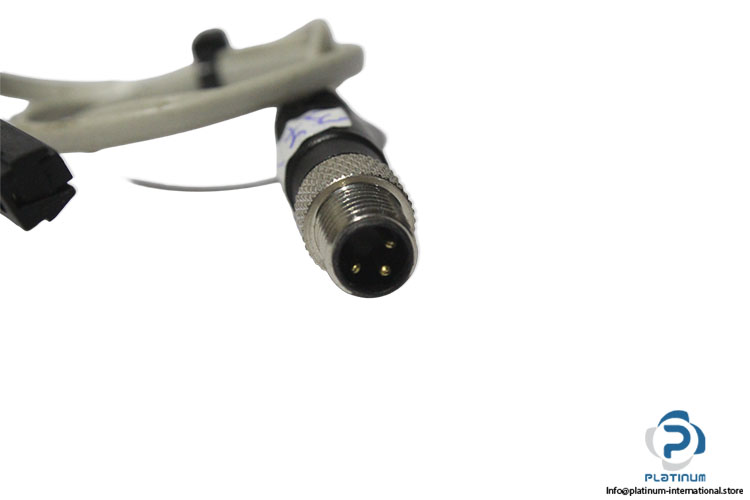

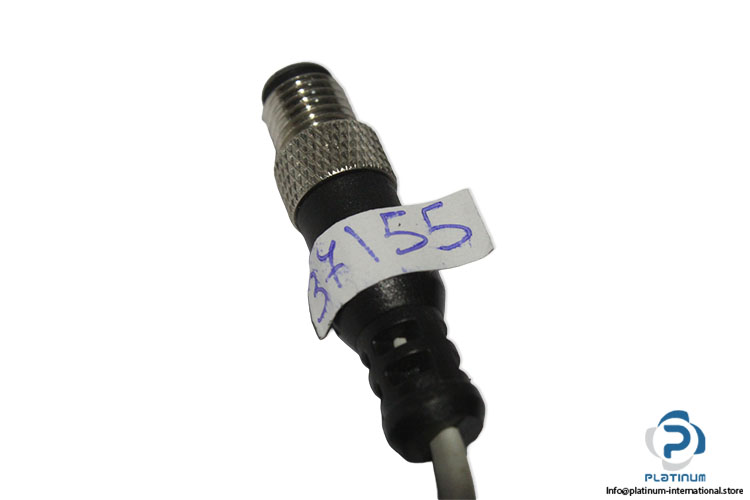

| Type of connection | cable with end connector, male 8M, 3 pins |
| Response time | ON (0.8 Micro second), OFF (0.3 Micro second) |
| Protection degree | IP 67 |
| Conductors | 0.14 mm2 / AWG 26 / 36 x 0.07 mm2 |
| Body material | PA, AISI 303, OT63 |
| Connector material | PUR / gold plated brass |
| Operating temperature | -10 to 70°C |
| Certification | CE |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1097883 |
| Weight | 0,01 |
