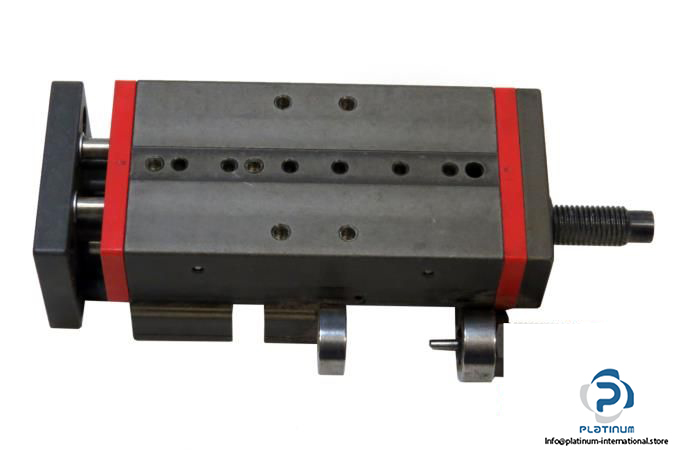

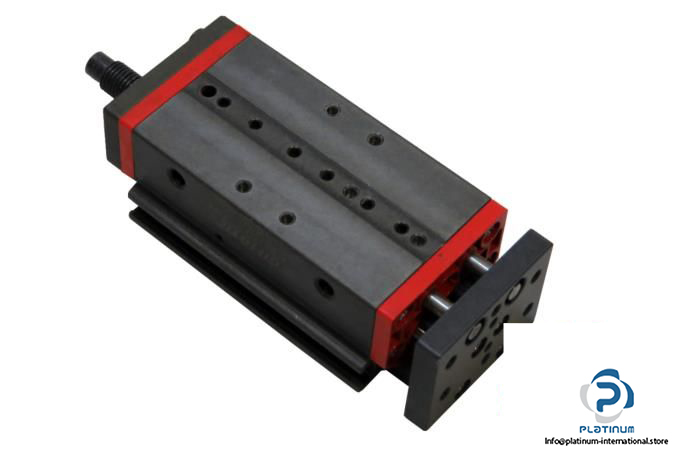

GIMATIC Z 0825D Pneumatic Slides

Manufacturer : GIMATIC

Type : Pneumatic Slides

Model : Z-0825-D

Repetition accuracy : 0.02 mm

Minimum actuating time : 0.100 s

Maximum working frequency : 1 Hz

Air consumption per cycle : 6 cm3

Maximun total stroke : 25 mm

Extension force at 6 bar : 50 N

Retraction force at 6 bar : 37 N

Medium : Filtered, lubricated / non lubricated compressed air

Pressure range : 2 – 8 bar

Temperature range : 5 … 60°C

Weight : 270 g
