Givi Misure EN600 Optical Encoder
New
Available on request
175,00$
OPTICAL ENCODER
GIVI MISURE HR 00500 0528 D08M01 PPC optical encoder delivers 500 PPR resolution with push-pull output and 5“28 VDC operation. Features IP65 protection, square flange, and high-speed performance up to 300 kHz.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
GIVI MISURE HR 00500 0528 D08M01 PPC OPTICAL ENCODER

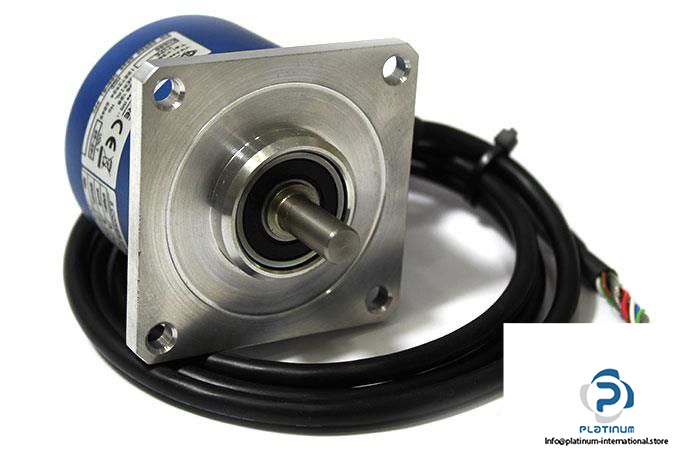

The GIVI MISURE EN600 series optical encoder is engineered for high-precision motion detection in industrial automation systems. With a robust square flange design and IP65 protection, this encoder ensures reliable performance in demanding environments. It provides a 500 PPR resolution and supports high-frequency output up to 300 kHz, making it ideal for dynamic applications.
Manufacturer: GIVI MISURE
Type: Optical Encoder

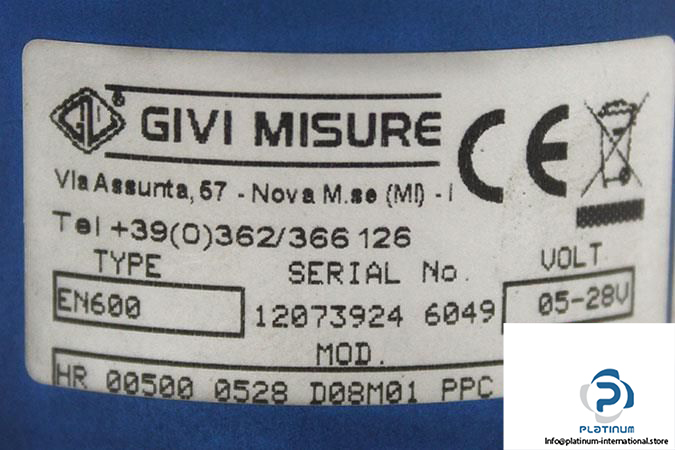

Model: HR 00500 0528 D08M01 PPC
Designation: EN600
Serial No.: 12073924 6049
| Flange Design | Square Flange |
| Shaft Design | Solid Shaft |
| Shaft Diameter | 8 mm |
| Voltage Supply | 5 / 28 VDC |
| Resolution | 500 Pulses per Revolution (PPR) |
| Max. Current Consumption | 30 mA |

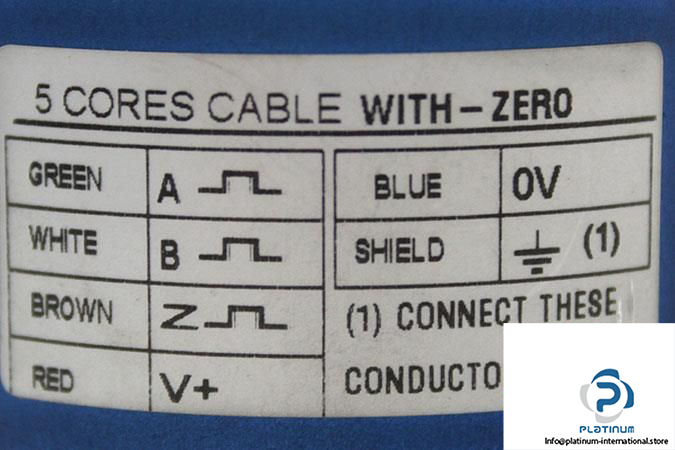

| Output Circuit | Push Pull |
| Pulse Frequency | max. 300 kHz |
| Protection Class | IP65 |
| Operating Temperature | 0 / 70 °C |
