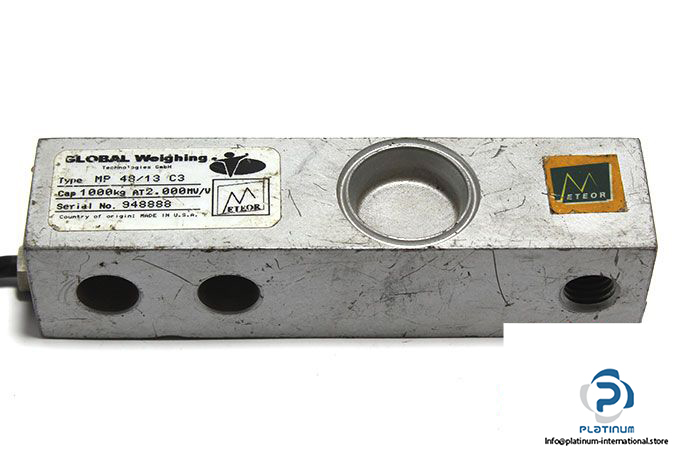

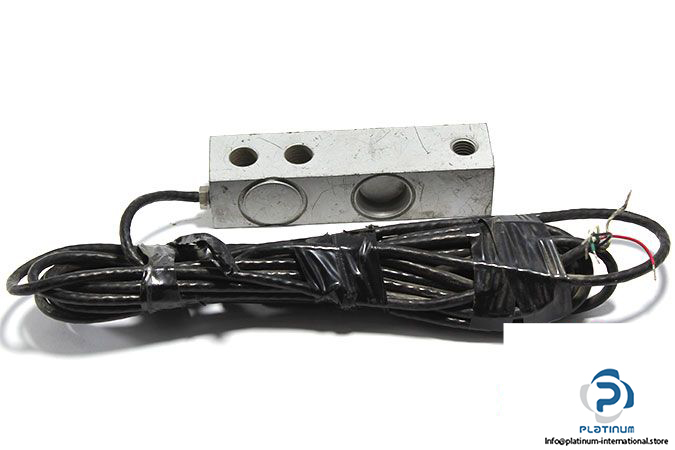

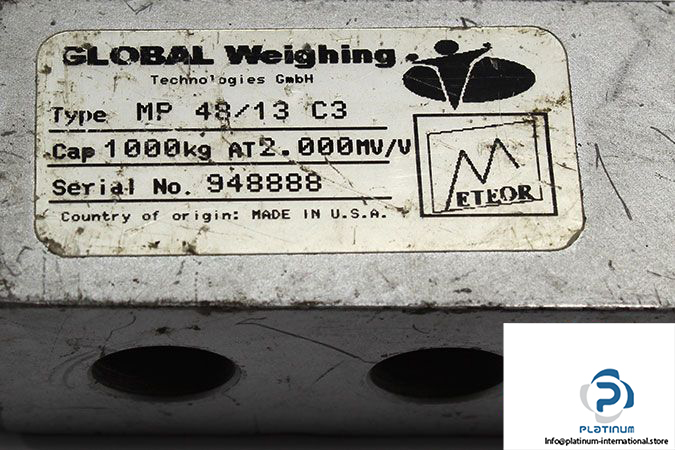

Global Weighing MP 48/13 C3 MAX 1000 KG Shear Beam Load Cell

Manufacturer: SOUTHOCEAN

Type: Shear Beam Load Cell

Model: MP 48/13 C3

Features

• High Quality Alloy Steel
• Aluminized Coated Finish for Outstanding Corrosion Resistance
• Compatible with Other Sources
• Hermetically Welded Seal (IP 67)
• Approved According to OIML R60



Application

• Platform scales
• Tank & Hopper scales

Maximum weight limit (E max): 1000 kg

Rated Output: 2 mV/V

Recommended Supply Voltage: 10 V

Maximum Supply Voltage: 15 V

Input Resistance: 350±7 Ω

Output Resistance: 352±3 Ω

Nominal Temperature: -10…40 °C

Cable Length: 6 m

Protection Class: IP67

Weight: 0.980 kg
