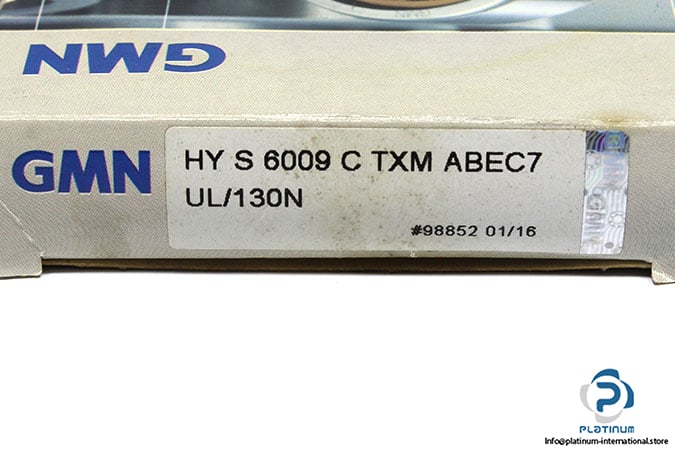

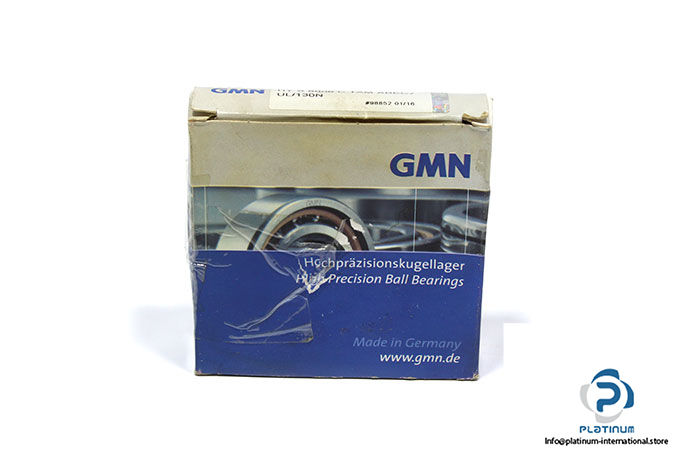

GMN HY S 6009 C TXM ABEC7 Deep Groove Ball Bearing
Manufacturer: GMN
Type: DEEP GROOVE BALL BEARING
Model: HY S 6009 C TXM ABEC7 UL/130N
Series: S, Standard spindle bearings
Dimensions:
Bore Diameter d: 45 mm
Outer diameter D: 75 mm
Width: 16 mm
Contact angle C: 15°
Dynamic load rating: 27000 N
Static load rating: 15900 N
Speed limit nGrease: 26250 RPM
Speed limit nOil: 35000 RPM
Preload: UL, light preload
Pre-tension: 130 N
Tolerance class: ABEC 7
Ball material HY: Ceramic Si3N4
Cage material: TXM, Molded plastic cage guided on outer ring, ball retaining
