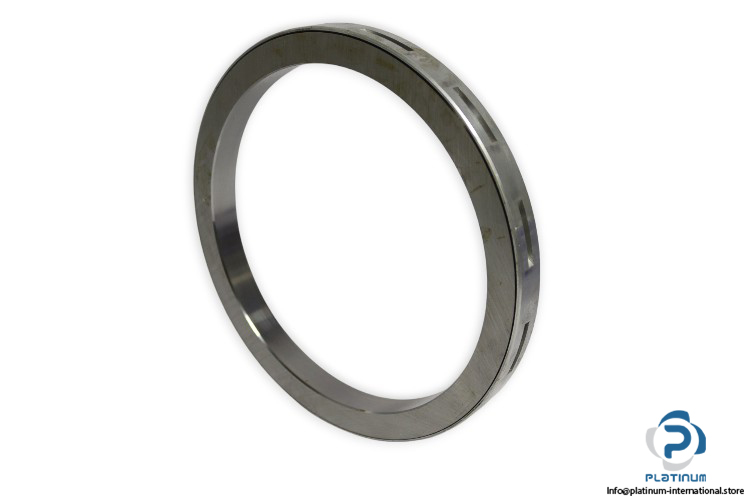

GMN M 210X250X22 Labyrinth Seal

Manufacturer: GMN
Type: LABYRINTH SEAL
Model: M210X250X22

Design: M (with groove)
Inner Diameter: 210 mm
Outer Diameter: 250 mm
Width: 22 mm
Gap Diameter: 244.500 mm
Drain Groove Width: 5 mm
Outer ring: Aluminum
Inner ring: Steel
Axial Clearance S ax: 1 mm
Range of temperature: -40 °– 200 °C
Max. Speed: 4000 RPM
Shaft & Housing Chamfer:  2.2mm × 15°
Shaft Tolerance: h6
Housing Tolerance: K7
Shaft & Housing Surface: Rz ≤ 16µm ; Ra ≤ 3.2µm
