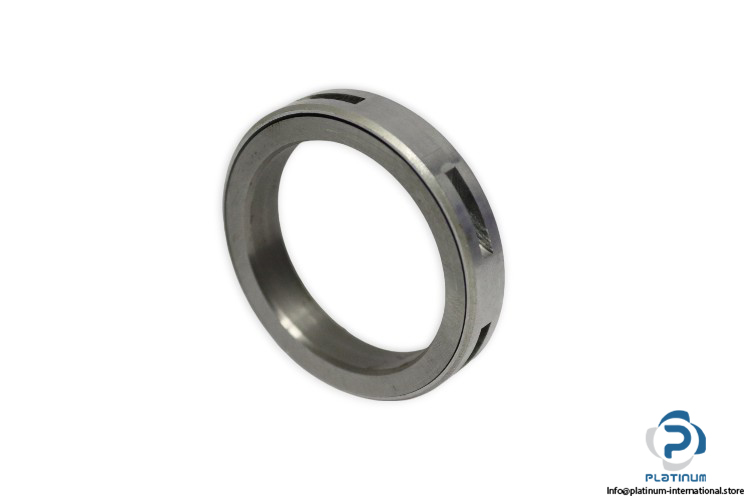

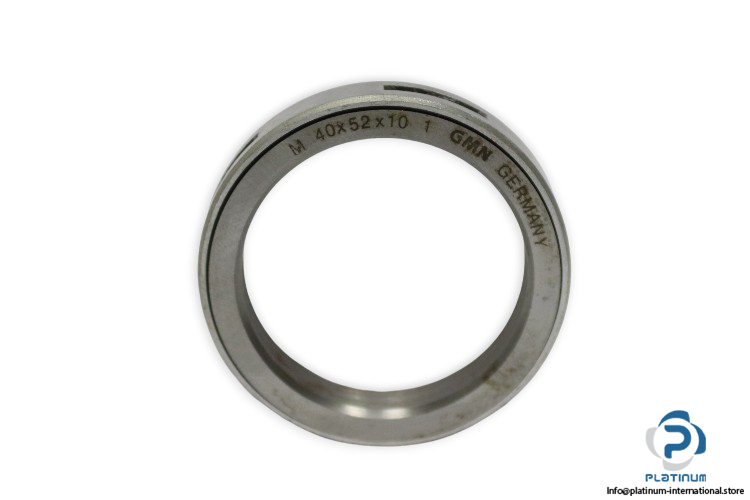

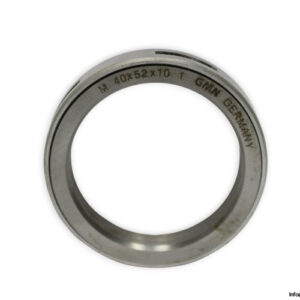

GMN M 40X52X10 Labyrinth Seal

Manufacturer: GMN
Type: LABYRINTH SEAL
Model: M40X52X10

Design: M (with groove)
Inner Diameter: 40 mm
Outer Diameter: 52 mm
Width: 10 mm
Gap Diameter: 49 mm
Drain Groove Width: 3 mm
Outer ring: Aluminum
Inner ring: Steel
Axial Clearance S ax: 0.40 mm
Range of temperature: -40 °– 200 °C
Max. Speed: 33,300 RPM
Shaft & Housing Chamfer: 1mm × 15°
Shaft Tolerance: h6
Housing Tolerance: K7
Shaft & Housing Surface: Rz ≤ 16µm ; Ra ≤ 3.2µm</p
