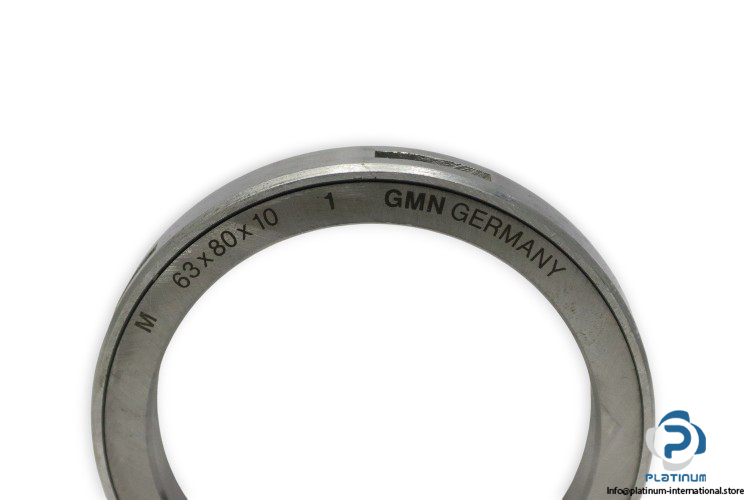

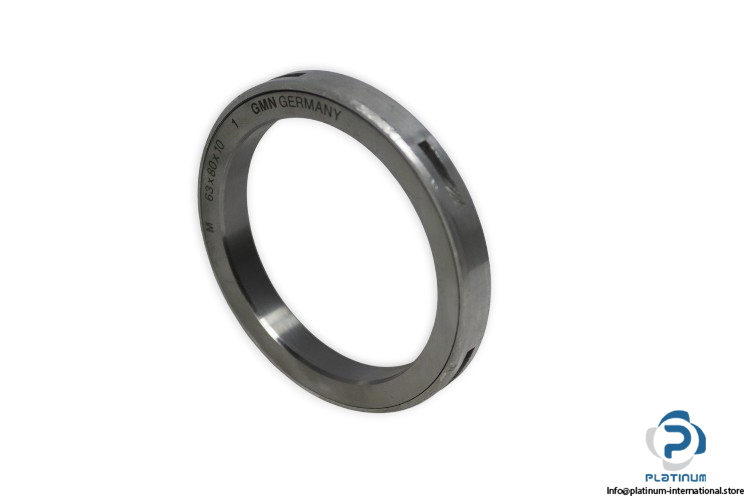

GMN M 63X80X10 Labyrinth Seal

Manufacturer:  GMN
Type: LABYRINTH SEAL
Model: M63X80X10

Design: M
Inner Diameter: 63 mm
Outer Diameter: 80 mm
Width: 10 mm
Gap Diameter: 76 mm
Drain Groove Width: 3 mm
Outer ring: Aluminum
Inner ring: Steel
Axial Clearance S ax: 0.400 mm
Range of temperature: -40 °– 200 °C
Max. Speed: 18700 RPM
Shaft & Housing Chamfer: 1mm × 15°
ID Tolerance: h6
OD Tolerance: K7
Shaft & Housing Surface: Rz ≤ 16µm ; Ra ≤ 3.2µm
