Goudsmit TPGC040028 Magnetic Gripper
Used
In stock11 unitsReady to ship
44,44$
MAGNETIC GRIPPER
Goudsmit TPGC040028 magnetic gripper with pneumatic switching, 17 N working load, 50 N tear-off force, aluminium housing, and neodymium coarse pole magnetic system.17N50NAluminiumAutomationcoarseGoudsmitGripperHousingLoadMagnetMagneticneodymiumPneumaticPoletear-offTPGC040028working
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

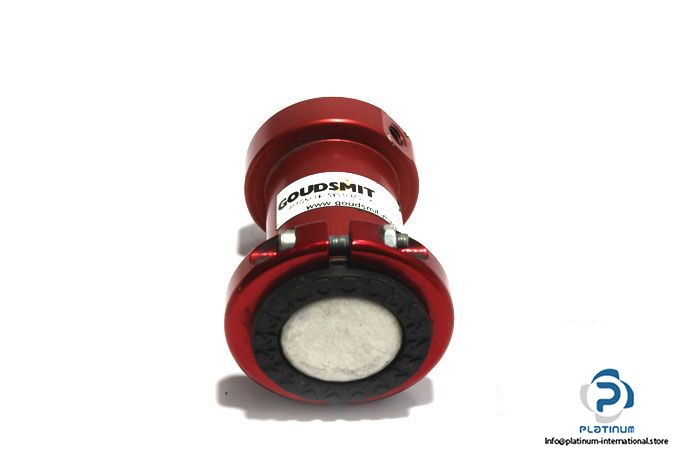

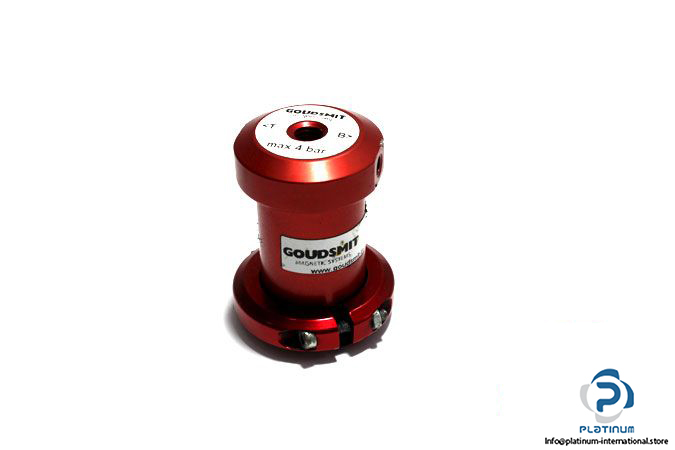

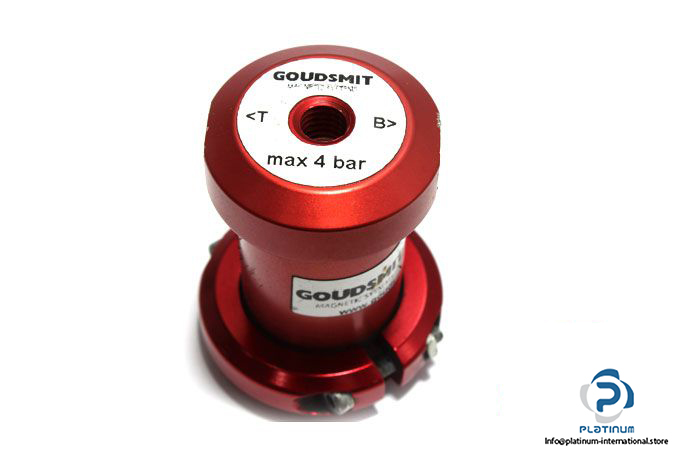

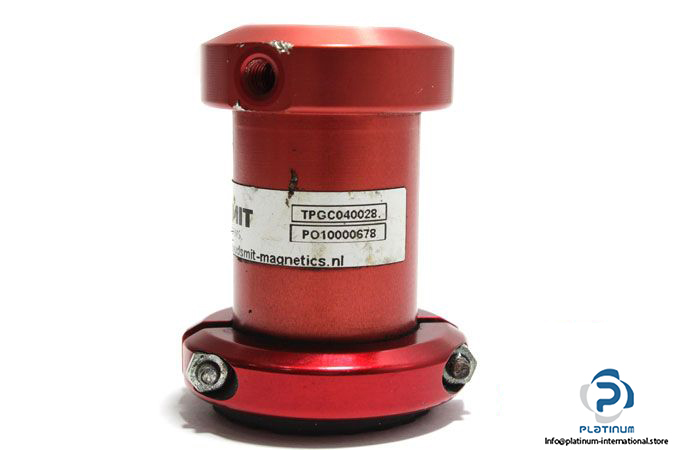

Goudsmit TPGC040028 Magnetic Gripper
The Goudsmit TPGC040028 is a high-performance magnetic gripper designed for reliable sheet handling in industrial automation. Featuring a coarse pole magnetic system with strong neodymium magnets, pneumatic switching, and compact design, it ensures safe and efficient gripping of ferromagnetic materials.
Manufacturer: Goudsmit
Type: Magnetic Gripper
Model: TPGC040028
Successor: TPGC024088 / TPGC040088
| Size | 30 mm |
| Switching | Pneumatic |
| Advised Working Load | 17 N |
| Max. Tear Off Force | 50 N |
| Min. Advised Sheet Thickness | 2 mm |
| Interface/Connection Dimensions | Threaded hole M8 |
| Connections | Pneumatic: M5 (2x) |
| Material Housing | Aluminium |
| Switching Pressure | Max. 4 bar |
| Magnetic System | Coarse pole |
| Magnetic System | 2 Permanent magnet poles |
| Magnet Quality | Neodymium GSN-45, Br 13,700 gauss (at 20 °C) |
| Ambient Temperature | 0 / 70 °C |
| Diameter | 42 mm |
| Height | 55 mm |
