Groschopp DM 100-80 / E4 Gear Motor
Used
In stock1 unitReady to ship
Gear Motor
GROSCHOPP DM 100-80 Gear Motor is a three-phase motor designed for high-efficiency industrial applications. With 200 W power, 2800 rpm speed, and an E 4 Gearbox delivering a 28 ratio and 1300 NCM torque, it provides reliable and precise performance.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

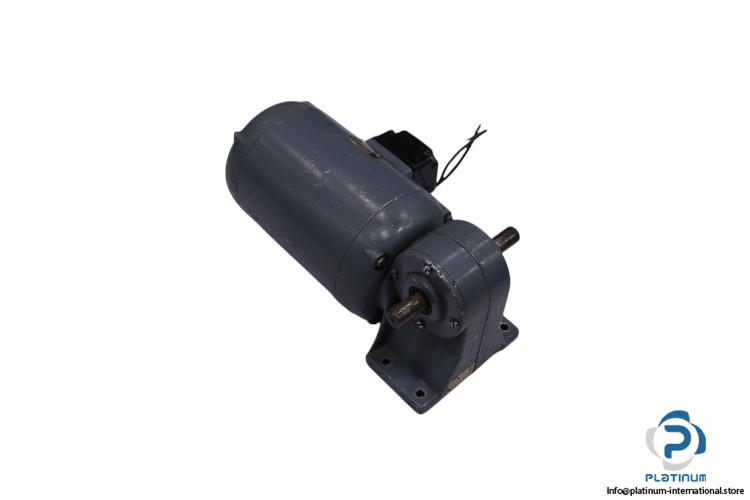

GROSCHOPP DM 100-80 Gear Motor
The GROSCHOPP DM 100-80 Gear Motor is a high-performance three-phase motor designed for industrial applications requiring precise torque and reliable power output. With a rated power of 200 W and a speed of 2800 rpm, this motor ensures efficient operation under varying loads. It is equipped with the E 4 Gearbox, providing a ratio of 28 and a maximum torque of 1300 NCM, making it ideal for demanding automation and drive systems.
- Manufacturer: GROSCHOPP
- Type: Gear Motor
- Model: DM 100-80
- Part No.: 7718440

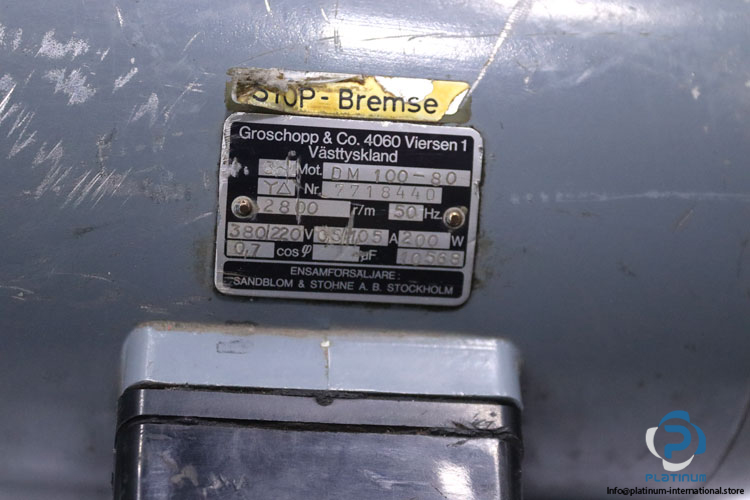

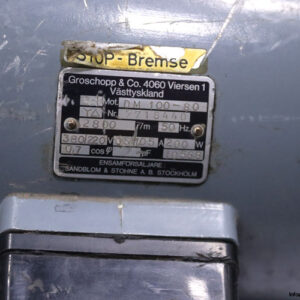

Technical Specifications
- Phase: 3-Phase
- Rated Voltage: 380 / 220 V
- Rated Current: 0.5 / 1.05 A
- Rated Power: 200 W
- Rated Speed: 2800 rpm
- Power Factor: 0.7
- Frequency: 50 Hz

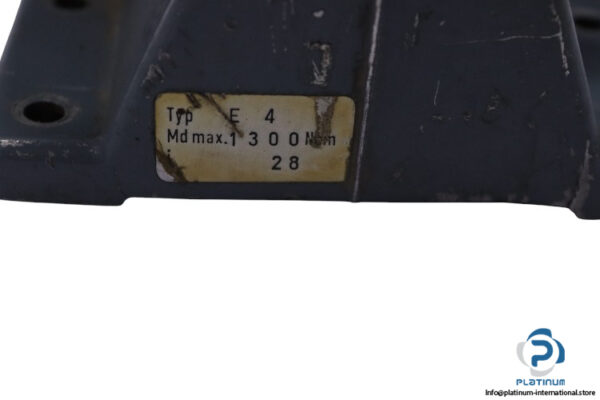

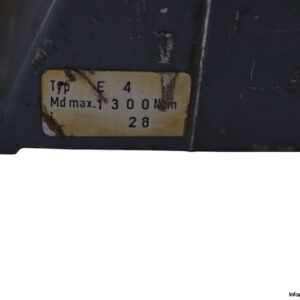

Gearbox Specifications
- Attached with: E 4 Gearbox
- Ratio: 28
- Max Torque: 1300 NCM
