Groschopp DM 90-60 / E13 Gear Motor
Used
In stock1 unitReady to ship
Gear Motor
GROSCHOPP DM 90-60 Gear Motor is a high-performance industrial motor designed for precision and durability. With a power rating of 75 W, a rated speed of 1380 / 1650 RPM, and an IP55 protection class, it is ideal for various automation and mechanical applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

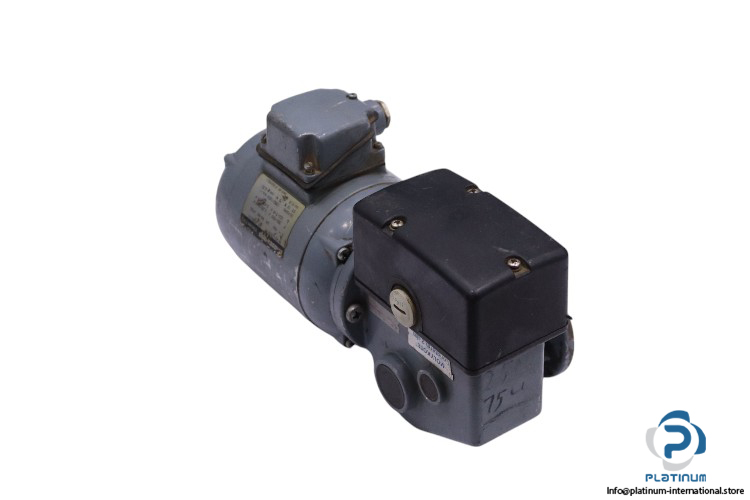

GROSCHOPP DM 90-60 Gear Motor
The GROSCHOPP DM 90-60 Gear Motor is a high-performance industrial motor designed for precision and efficiency. Built for demanding applications, this motor features a wide voltage range, dual-frequency compatibility, and a reliable IP55 protection rating. Attached with an E 13 gearbox, it delivers high torque output, making it ideal for various mechanical and automation systems.
- Manufacturer: GROSCHOPP
- Type: Gear Motor
- Model: DM 90-60
- Part No: 4212389
- Ref No: WK 0086701

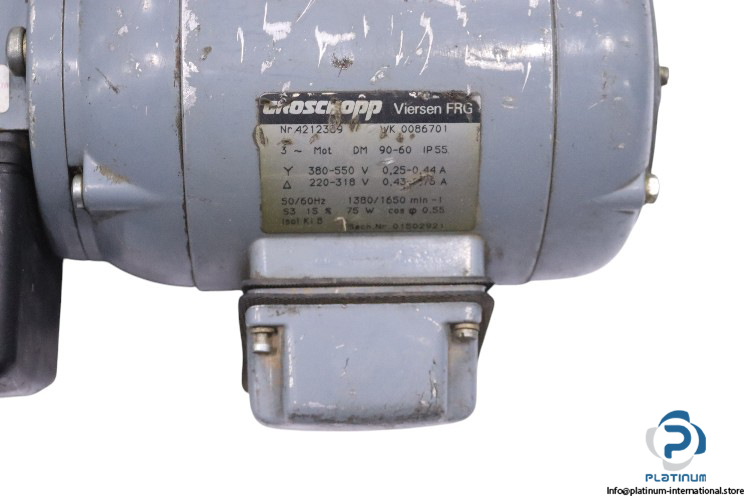

Technical Specifications
- Rated Voltage: 380 “ 550 V Star / 220 “ 318 V Delta
- Rated Frequency: 50 / 60 Hz
- Rated Speed: 1380 / 1650 RPM
- Power Factor: 0.55
- Rated Power: 75 W
- Rated Current: 0.25 “ 0.44 / 0.43 “ 0.75 A
- Duty: S3
- Protection Class: IP55

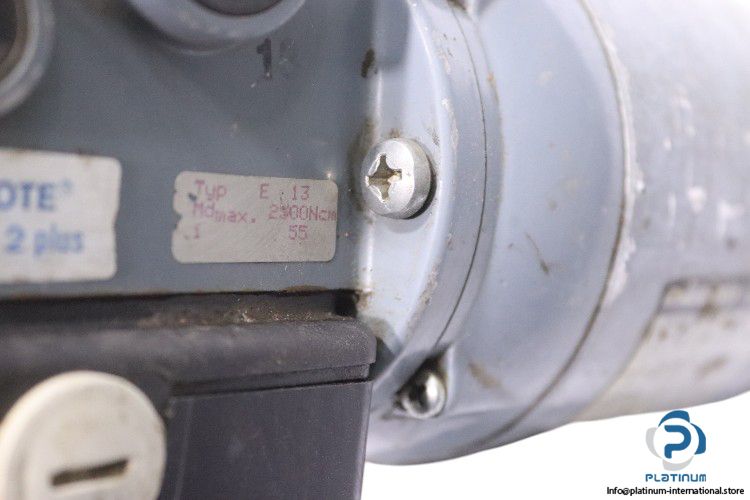

- Attached with: E 13 Gearbox
- Ratio: 55
- Max Torque: 2000 NCM
